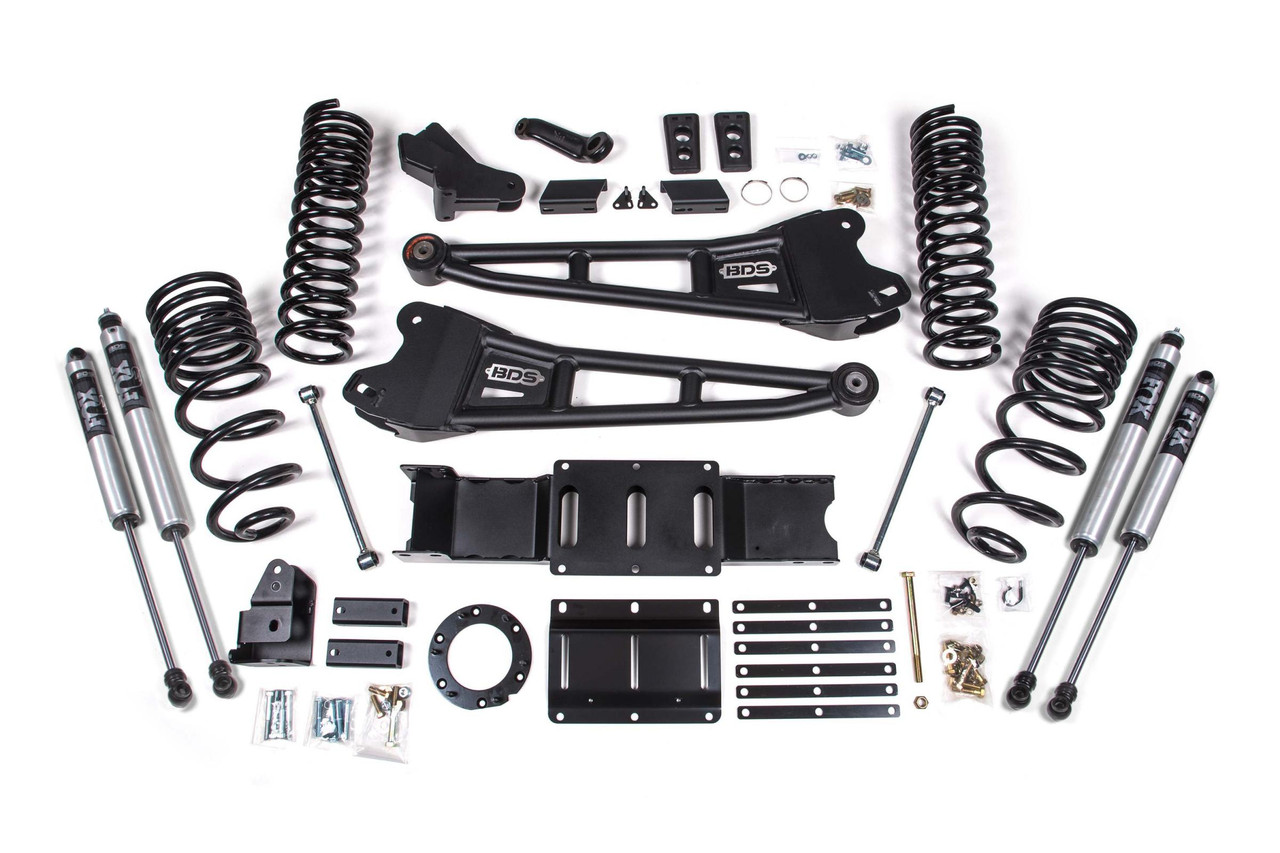

BDS SUSPENSION BDS1703FS 4 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-23 4WD GAS WITH FACTORY REAR OVERLOAD LEAF FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1703FS
MPN:
BDS1703FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1703FS 4 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-23 4WD GAS WITH FACTORY REAR OVERLOAD LEAF FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1703FS 4 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-23 4WD GAS WITH FACTORY REAR OVERLOAD LEAF FOX 2.0 PERFORMANCE SHOCKS
$3,609.14

Description

Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

  • Front Lift Method: Radius Arm
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 2 inch
  1. A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
  2. Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
    Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Rear Lift Option With Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Kit Components:

  • Includes one BDS012216, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612123
  • Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
  • Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
  • Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
  • Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
  • Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
  • Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevate your RAM 3500 with the BDS SUSPENSION BDS1703FS 4-Inch Lift Kit, specifically engineered for 2019-2023 4WD gas models that feature a factory rear overload leaf. This comprehensive lift kit offers enhanced stance, performance, and off-road capability, allowing you to confidently tackle any terrain while accommodating larger tires up to 35 inches.

Key features of the kit include durable, gas-specific Pro-Ride coil springs and a precise 4-Link control arm system that ensures impressive handling. The package is rounded out with a forged drop pitman arm and a track bar bracket for effortless steering correction, along with sway bar relocation and brake line brackets, ensuring safety and functionality at this elevated height. Precision-tuned FOX 2.0 nitrogen charged shocks are included to optimize ride quality, whether on or off the road.

Designed for significant performance enhancements, this lift kit maintains the integrity of your vehicle’s drivetrain, featuring an indexing ring and a new transmission crossmember to ensure compatibility with the factory front driveshaft. The rear lift method utilizes high-strength steel lift blocks, longer u-bolts, and matching FOX 2.0 Performance shocks to provide a balanced and stable performance.

This kit is versatile, accommodating standard and dually or Mega Cab models with Aisin Transmissions, though a DEF tank relocation bracket is required for those specific configurations. Exhaust modifications may also be necessary to ensure clearance for the enhanced front driveshaft.

Experience the difference with BDS Suspension’s superior engineering, dedicated to delivering high-performance lift solutions that enhance both capability and aesthetics for your RAM 3500 truck. Transform your ride today with the BDS1703FS Lift Kit.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
