BDS SUSPENSION BDS1703FPE 4 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-23 4WD GAS WITH FACTORY REAR OVERLOAD LEAF FOX 2.5 PERFORMANCE ELITE

Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

• Front Lift Method: Radius Arm
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

1. A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
2. Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
   Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Rear Lift Option With Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

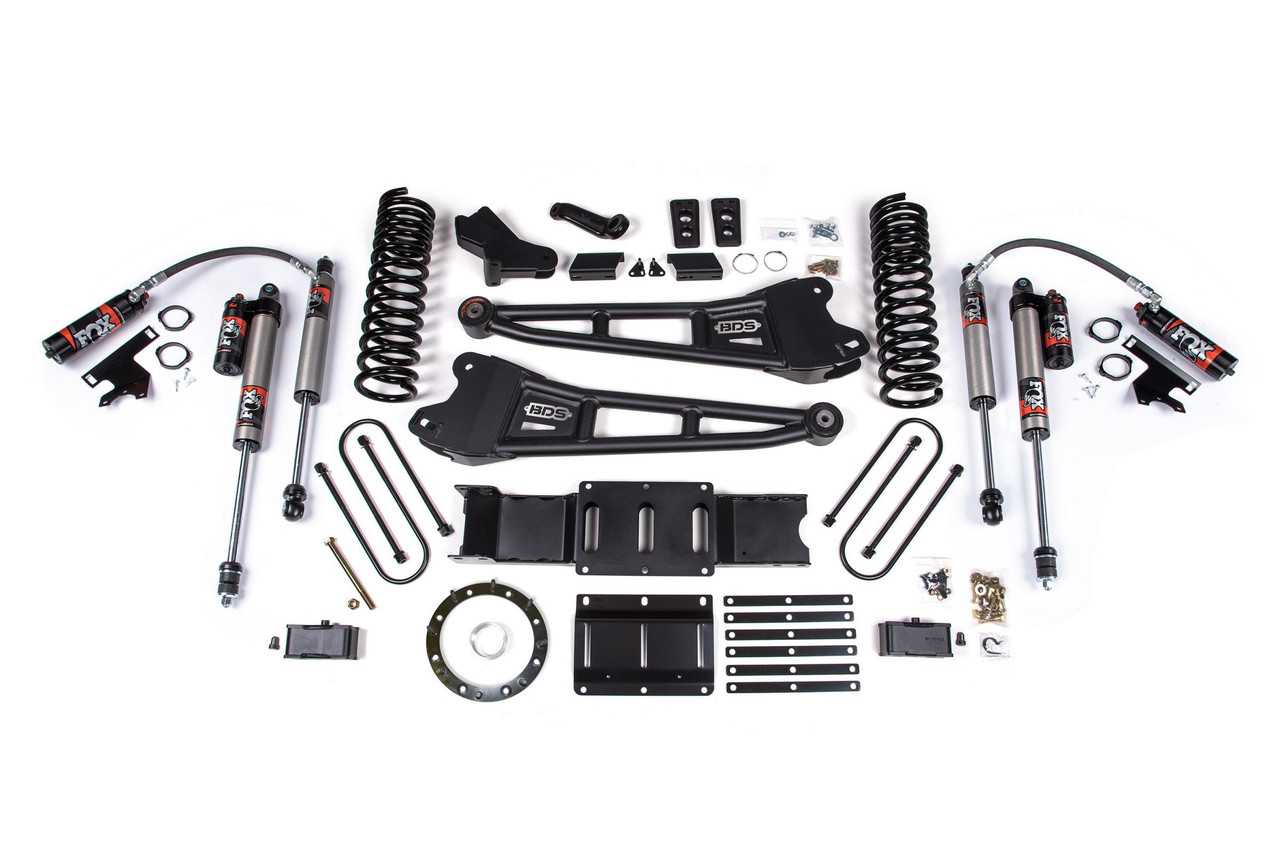

Kit Components:

• Includes one BDS012216, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612123
• Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
• Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
• Includes one FOX88326063, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
• Includes one FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchРЎСљ Lift, Dual Speed Compression Adjust

Elevate your RAM 3500 gas-powered truck to unparalleled heights with the BDS SUSPENSION BDS1703FPE 4-Inch Lift Kit. This premium lift kit is meticulously engineered to enhance your vehicle's stance, performance, and overall capability. Designed for 2019-2023 4WD models, it allows clearance for up to 35-inch tires, ensuring a commanding presence on any terrain.

The front of the lift kit showcases gas-specific Pro-Ride coil springs, along with robust 4-Link control arms and conversion brackets. This setup works seamlessly with a forged drop pitman arm and a track bar bracket to guarantee precise steering correction. Additional components, such as sway bar relocation, brake line brackets, and finely tuned NX2 or FOX 2.0 nitrogen-charged shocks, round out the front lift configuration.

To maintain optimal functionality, the transfer case requires indexing, facilitated by the included indexing ring and a new transmission crossmember, which are vital for using the factory front driveshaft. The rear configuration integrates a high-strength steel lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks, further enhancing ride quality and control.

For truck owners with factory rear overload leafs, the kit provides specialized options. The FOX 2.5 Performance Elite series shocks embedded in this lift kit bring substantial off-road capabilities, adjustable for different terrains and loads. Their 2.5-inch impact-extruded aluminum body and 7/8-inch heat-treated steel shaft contribute to durability and reliability.

Accompanied by a comprehensive warranty and user-friendly installation components, the BDS1703FPE lift kit is a wise choice for those looking to push the limits of their RAM 3500 while enjoying a smooth and powerful ride.
