BDS SUSPENSION BDS1702FS 4 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-23 4WD GAS NO FACTORY REAR OVERLOAD LEAF FOX 2.0 PERFORMANCE SHOCKS

Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

• Front Lift Method: Radius Arm
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

1. A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
2. Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
   Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Rear Lift Option Without Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

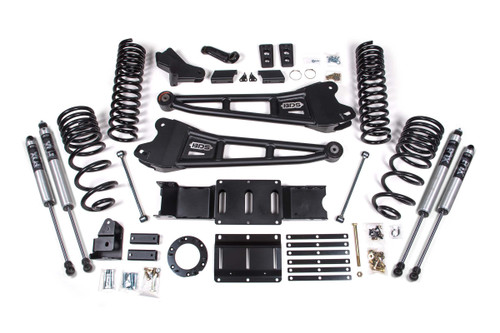

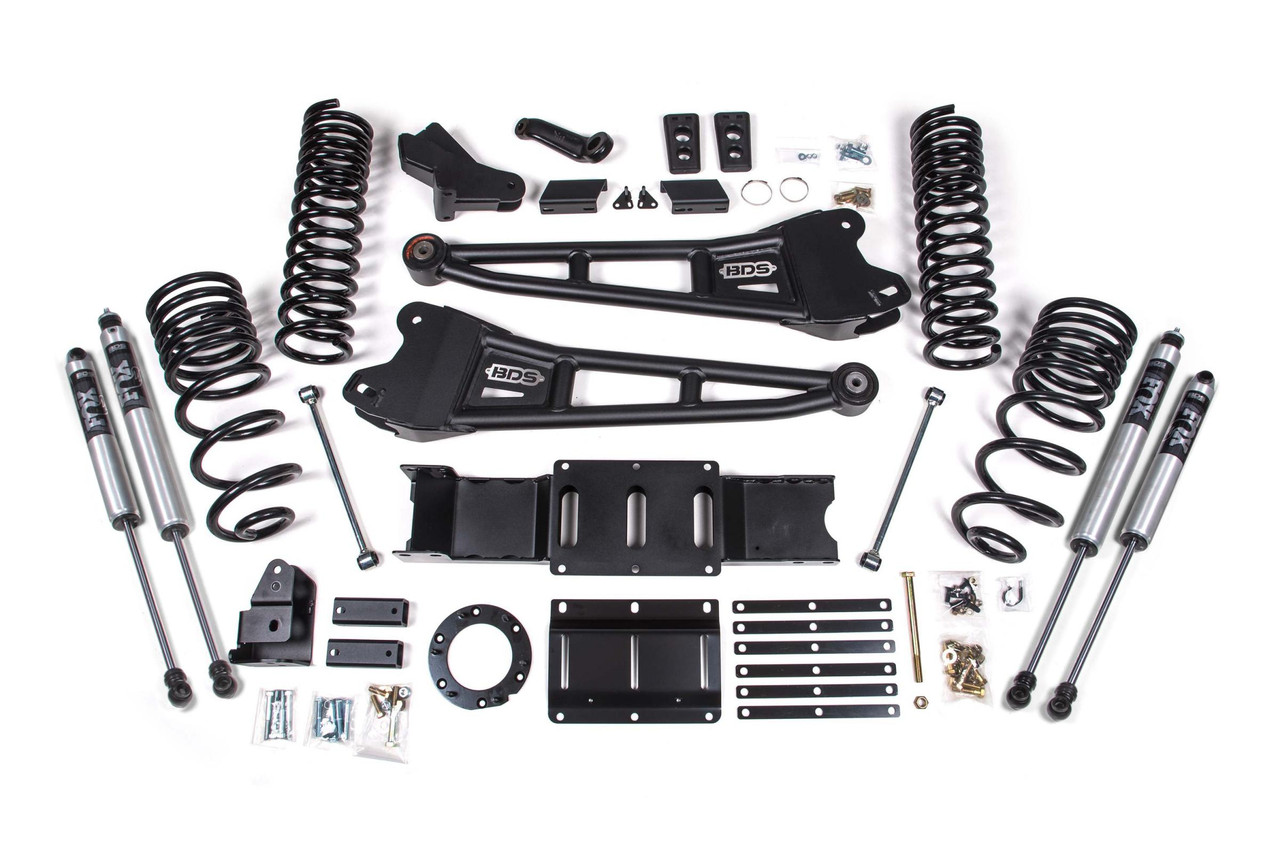

Kit Components:

• Includes one BDS012215, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612116
• Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
• Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
• Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevate your RAM 3500 gas-powered truck with the BDS SUSPENSION BDS1702FS 4-inch lift kit, engineered to enhance both performance and aesthetics. Perfect for 2019-2023 4WD models without factory rear overload leaf springs, this comprehensive kit offers all the essential components needed for a successful installation and incredible off-road capability.

This 4-inch lift system boasts a robust front suspension upgrade featuring gas-specific Pro-Ride coil springs, 4-Link control arms, and precise conversion brackets designed for optimal articulation. To ensure proper steering correction, a forged drop pitman arm and track bar bracket are included, along with sway bar relocation and brake line brackets. Precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks complete the front assembly, delivering superior ride quality and dynamic performance.

The lift kit also provides vital components for the rear suspension, utilizing high-strength steel lift blocks and longer u-bolts for increased stability and support. The system accommodates up to 35-inch tires, giving your truck a commanding presence on and off the road.

Attention to detail is evident throughout the kit, from the indexing ring and new transmission crossmember for transfer case adjustments to accommodate the factory front driveshaft, to the necessary modifications for vehicles with a Manual T-case.

Designed with durability in mind, the FOX 2.0 Performance Series shocks feature a 2-inch impact extruded aluminum body and a high-flow piston design to maximize on-road and off-road performance. With professional-grade application-specific valving, these shocks ensure a long-lasting, smooth driving experience, no matter the terrain.

Transform your truck into the ultimate off-road machine with the BDS1702FS 4-inch lift kit, where quality, performance, and style meet.
