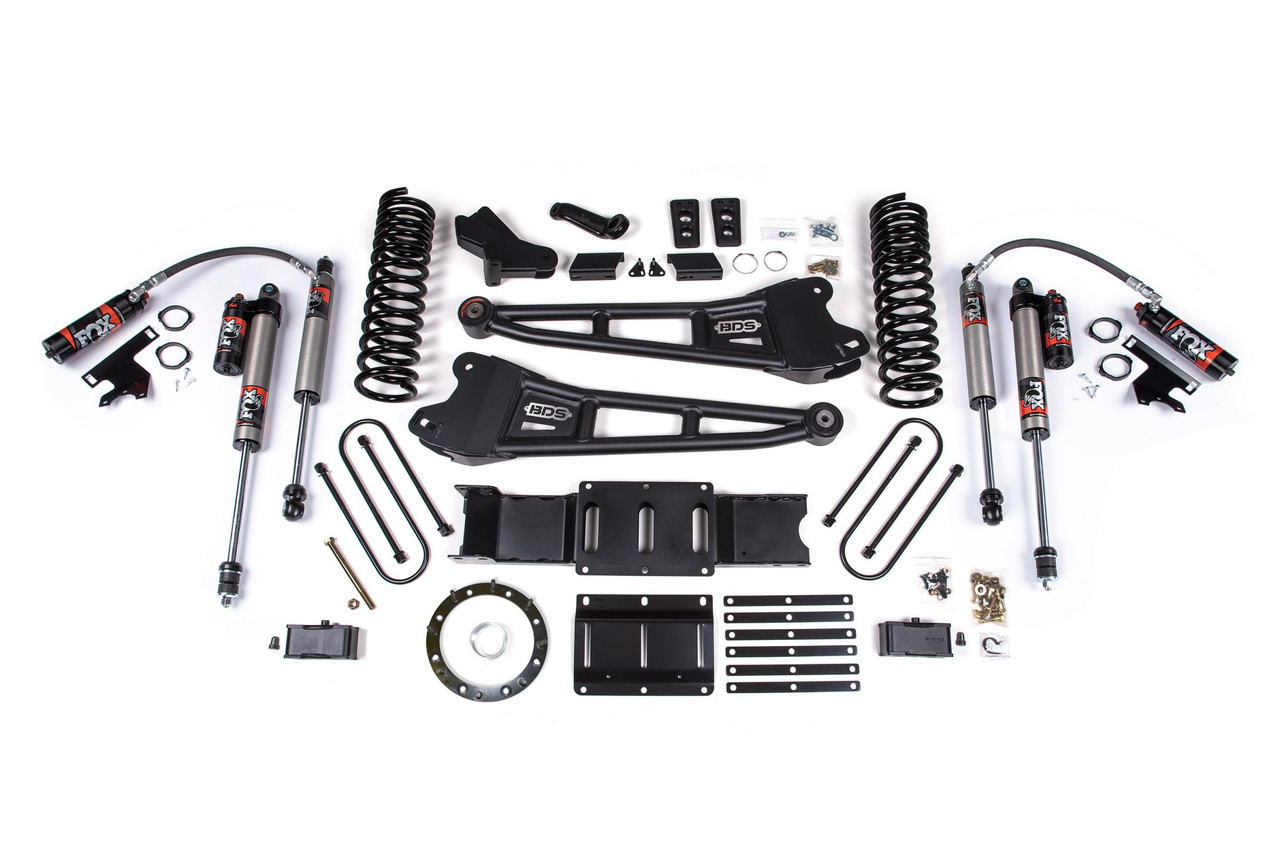

BDS SUSPENSION BDS1702FPE 4 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-23 4WD GAS WITHOUT FACTORY REAR OVERLOAD LEAF FOX 2.5 PERFORMANCE ELITE
- SKU:
- BDS1702FPE
- MPN:
- BDS1702FPE
- Shipping:
- Calculated at Checkout
Description
Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
- Front Lift Method: Radius Arm
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 2 inch
- A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
- Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
Rear Lift Option Without Factory Rear Overload Leaf
Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Kit Components:
- Includes one BDS012215, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612116
- Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
- Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
- Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
- Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
- Includes one FOX88326063, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchРЎСљ Lift, Dual Speed Compression Adjust
This comprehensive kit features gas-specific Pro-Ride coil springs along with 4-Link control arms and conversion brackets for improved handling. The inclusion of a forged drop pitman arm and track bar bracket ensures precise steering correction, alongside sway bar relocation and brake line brackets for seamless integration. With precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks, your ride will experience enhanced stability and comfort, whether on or off the road.
In terms of installation, the kit includes an indexing ring and a new transmission crossmember, allowing for the use of the factory front driveshaft at the elevated height. For the rear, a high-strength steel lift block and longer U-bolts, complete with matching NX2 Nitro or FOX 2.0 Performance shocks, ensure superior support and control.
Addressing vehicle-specific requirements, a DEF tank relocation bracket is necessary for Dually or Mega Cab models with Aisin transmissions, while exhaust modification may be needed to accommodate the front driveshaft. For vehicles equipped with a manual transfer case, a shifter extension is required, as is a carrier bearing drop for those with 2-piece rear driveshafts.
Experience enhanced off-road capabilities with the FOX 2.5 Performance Elite Series shocks, featuring easily adjustable settings for speed, terrain, and load. Designed for durability and performance, this lift kit not only uplifts your truck but redefines its limits. Backed by a 1-year manufacturer's warranty, you can trust in the quality and reliability of your investment.
