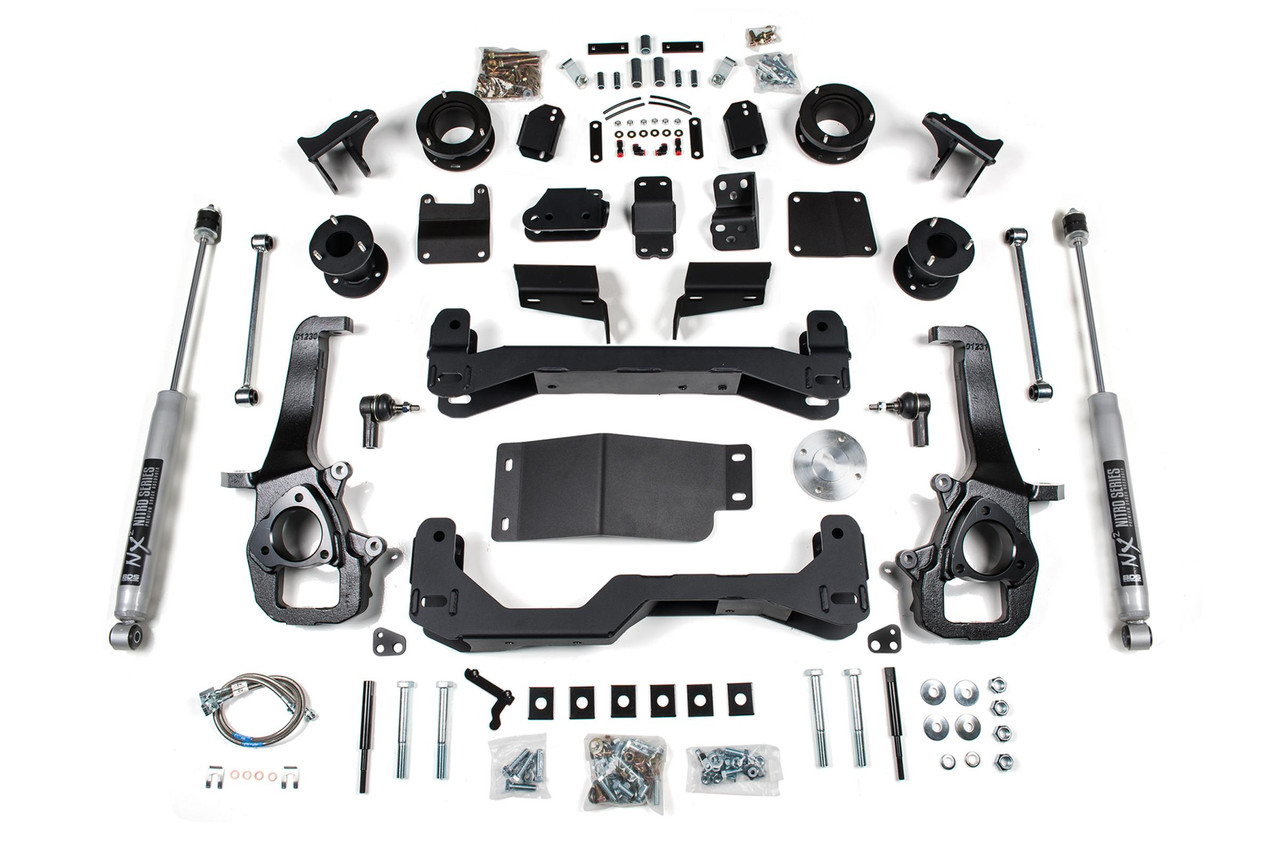

BDS SUSPENSION BDS1698FS 4 INCH LIFT KIT RAM 1500 W/ AIR RIDE 19-24 4WD LARGE BORE FOX 2.0 PERFORMANCE SHOCKS

BDS steps up the performance and capability of the 2019-2024 RAM 1500 trucks, equipped with factory rear air ride, with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes top mounted air bag spacers, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links.

Also, new air lines and fittings are supplied to along with ride height sensor brackets to maintain propoer positioning and functionality of the factory air ride system at the new height. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Spacer
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. Extreme care/caution must be taken to follow the steps of these instructions to prevent any air leaks or damage to the bags during installation.
2. The factory air ride is a closed-loop system. Opening the system more times than recommended in the lift instructions will require the system to be recharged (this can be done at any RAM dealer service department). A scan tool is needed to access the air control module to perform the service.
3. Frame bracket modification is required.
4. Fits 4WD models equipped with factory air ride only.
5. Stock 18 inch wheels cannot be reinstalled due to steering interference. Stock 20 inch+ wheels can be reinstalled with factory-size Tires.
6. Trucks equipped with factory 22 inch wheels must use the large bore steering knuckles.
7. Does NOT fit Diesel Models.
8. Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines mounted.
9. If using 18 inch wheels with maximun recommeded backspacing, Test fit wheels on Vehicle before mounting tires to ensure clearance

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included

OE Knuckle Type - Large bore

RAMs with factory 22 inch wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.

Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components:

• Includes one BDS022307, 2019-2022 Ram 1500 Rear Box Kit, UPC Code 658848615339
• Includes one BDS022308, 2019-2024 Ram 1500 Air Ride Box Kit, UPC Code 658848615346
• Includes one BDS022640, 2019-2023 Ram 1500 Knuckle Box Kit - Large Bore - DRV, UPC Code 658848615551
• Includes one BDS022641, 2019-2023 Ram 1500 Knuckle Box Kit - Large Bore - PASS, UPC Code 658848615568
• Includes one BDS022642, 2019-2023 Ram Front Box Kit 1 of 2, UPC Code 658848615575
• Includes one BDS022643, 2019-2023 Ram Front Box Kit 2 of 2, UPC Code 658848615582
• Includes two FOX98224806, Fox 2.0 Shock 26.74 x 16.65 S50/EB1

Enhancing the performance and aesthetics of your 2019-2024 RAM 1500 equipped with factory rear air ride, the BDS SUSPENSION BDS1698FS 4 INCH LIFT KIT redefines off-road capability while ensuring a smooth on-road experience. This comprehensive 4-inch suspension lift kit is engineered for compatibility with 35-inch tires, providing your truck with an impressive stance that demands attention.

The heart of this lift kit is BDS’s advanced high-clearance design, which optimizes ground clearance and bolsters strength against rugged terrains. Every component is meticulously crafted to correct suspension and steering geometry, ensuring exceptional handling characteristics. Up front, the kit features top-mounted strut spacers and robust 1/4-inch thick steel crossmembers paired with multipoint differential relocation brackets. Heavy-duty skid plates offer added protection during off-road adventures.

Steering precision is maintained with high-strength CNC-machined ductile iron steering knuckles and replacement tie rod ends, compatible with Electronic Stability Control (ESC) systems. In the rear, the kit includes airbag spacers, control arm relocation brackets for optimal pinion angles, along with bump stop extensions and sway bar links to guarantee stability at increased heights.

Completing the system, either BDS NX2 Nitro Series gas shocks or FOX 2.0 Internal Floating Piston performance shocks are included, chosen to enhance dampening performance and ride quality. The meticulous design includes critical new air lines and fittings to maintain the functionality of the factory air ride system at its new elevation.

With its robust construction and attention to detail, the BDS1698FS 4 INCH LIFT KIT promises to transform your RAM 1500 into an off-road powerhouse while ensuring that you ride in comfort and style, whether on pavement or the wildest trails.
