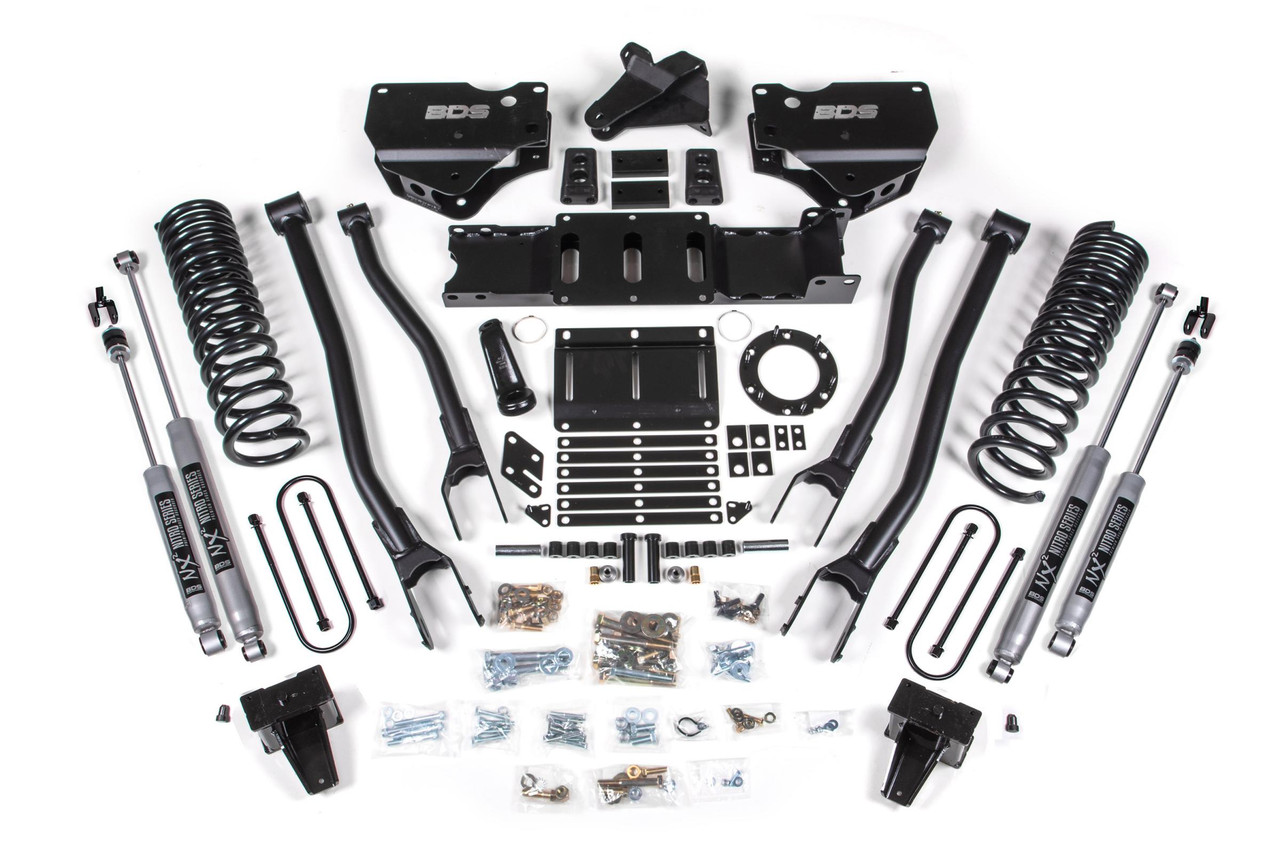

BDS SUSPENSION BDS1695FS 5.5 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD GAS WITH FACTORY REAR OVER LOAD LEAF FOX 2.0 PERFORMANCE SHOCKS

Raise your RAM 3500 gas powered truck to the next heights with this 5.5-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

• (Trimming may be required)
• 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Rear Lift Option
Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 5 inch

Kit Components:

• Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
• Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
• Includes one BDS012527, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612642
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
• Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
• Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Transform your RAM 3500 gas-powered truck with the BDS SUSPENSION BDS1695FS 5.5-Inch Lift Kit featuring a cutting-edge 4-Link conversion. This comprehensive kit not only elevates your truck by 5.5 inches but also enhances its stance, performance, and off-road capabilities, allowing for tire clearance of up to 37 inches.

Engineered for optimal performance, the lift kit includes gas-specific Pro-Ride coil springs that ensure a smooth ride across diverse terrains. The 4-Link control arms and conversion brackets offer superior strength and improved suspension geometry, leading to enhanced handling behavior. This crucial upgrade incorporates high-strength 1/4-inch steel brackets for axle positioning, ensuring minimal caster change during wheel travel.

The kit features a forged drop pitman arm, which is vital for steering correction at lifted heights. This essential component, paired with a heavy-duty track bar relocation bracket, keeps axle positioning precise, offering a seamless driving experience. Additionally, brake line brackets and sway bar corrections maintain exceptional handling dynamics.

Included in the rear setup are robust steel lift blocks and longer U-bolts, complemented by a matching set of premium NX2 Nitro or FOX 2.0 Performance shocks that significantly enhance ride quality. The BDS suspension system is designed to accommodate the factory driveshaft, thanks to the included indexing ring and transmission crossmember, ensuring mechanical integrity and reliability.

With adjustable ride-height options and a variety of shock configurations, the BDS SUSPENSION BDS1695FS kit is the ultimate upgrade for your RAM 3500. Elevate your truck's performance and style while tackling any terrain with confidence. Whether for work or play, this lift kit delivers the performance and durability that serious truck enthusiasts demand.
