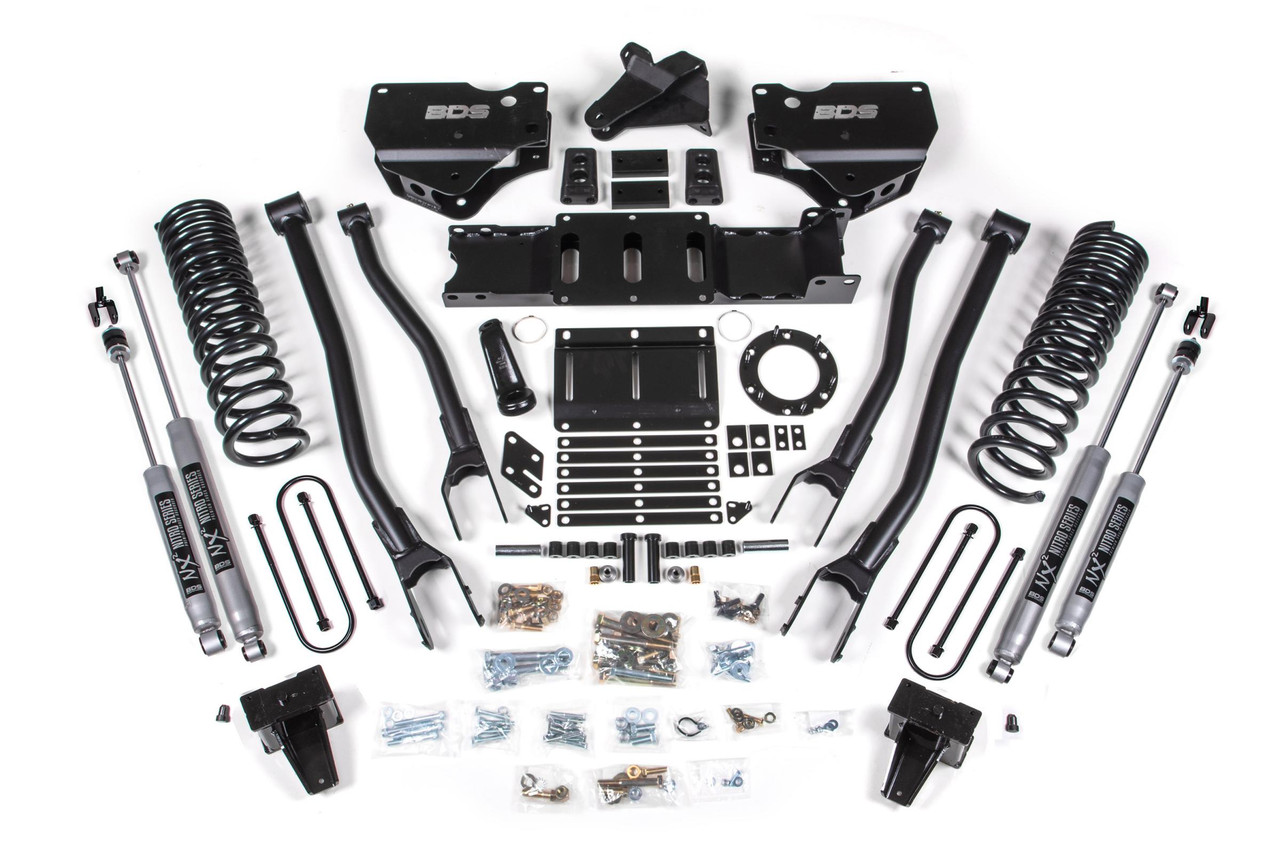

BDS SUSPENSION BDS1694FS 5.5 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD GAS WITHOUT FACTORY REAR OVERLOAD LEAF FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1694FS
MPN:
BDS1694FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1694FS 5.5 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD GAS WITHOUT FACTORY REAR OVERLOAD LEAF FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1694FS 5.5 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD GAS WITHOUT FACTORY REAR OVERLOAD LEAF FOX 2.0 PERFORMANCE SHOCKS
$2,877.55

Description

Raise your RAM 3500 gas powered truck to the next heights with this 5.5-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

  • (Trimming may be required)
  • 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Rear Lift Option
Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 5.5 inch
  • Rear Lift Height: 5 inch

Kit Components:

  • Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
  • Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
  • Includes one BDS012526, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612635
  • Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
  • Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
  • Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
  • Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Elevate your driving experience with the BDS Suspension BDS1694FS 5.5-Inch Lift Kit, specifically engineered for the RAM 3500 19-24 4WD Gas (without factory rear overload leaf). This comprehensive kit is designed to transform your truck’s stance, performance, and off-road capability, providing up to 37 inches of tire clearance.

The lift kit features robust Pro-Ride coil springs that deliver a smooth ride over varying terrains, paired with advanced 4-Link control arms and conversion brackets to enhance suspension geometry. A forged drop pitman arm ensures steering angles are optimized, while the heavy-duty track bar bracket repositions the axle correctly. This meticulous attention to detail enhances handling and stability for an exhilarating drive.

Installation is straightforward with the inclusion of a high-strength steel rear lift block complemented by longer u-bolts and precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks. The indexing ring and upgraded transmission crossmember allow seamless use of the factory front driveshaft without compromising efficiency.

The comprehensive kit also provides essential components such as brake line brackets and sway bar relocation, ensuring that every aspect of your truck’s performance is taken into account. The 4-Link conversion is a standout feature, replacing factory stamped steel arms with heavy-duty 1/4-inch steel brackets, allowing for superior axle positioning and limiting caster change throughout wheel travel.

With the option to choose between NX2 or FOX performance shocks, you can tailor your ride to your preferences. Upgrade your RAM 3500 today, and embrace the unmatched performance and style that comes with the BDS SUSPENSION BDS1694FS Lift Kit. Experience the perfect blend of rugged durability and exceptional ride quality, designed for both daily driving and off-road adventures.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
