BDS SUSPENSION

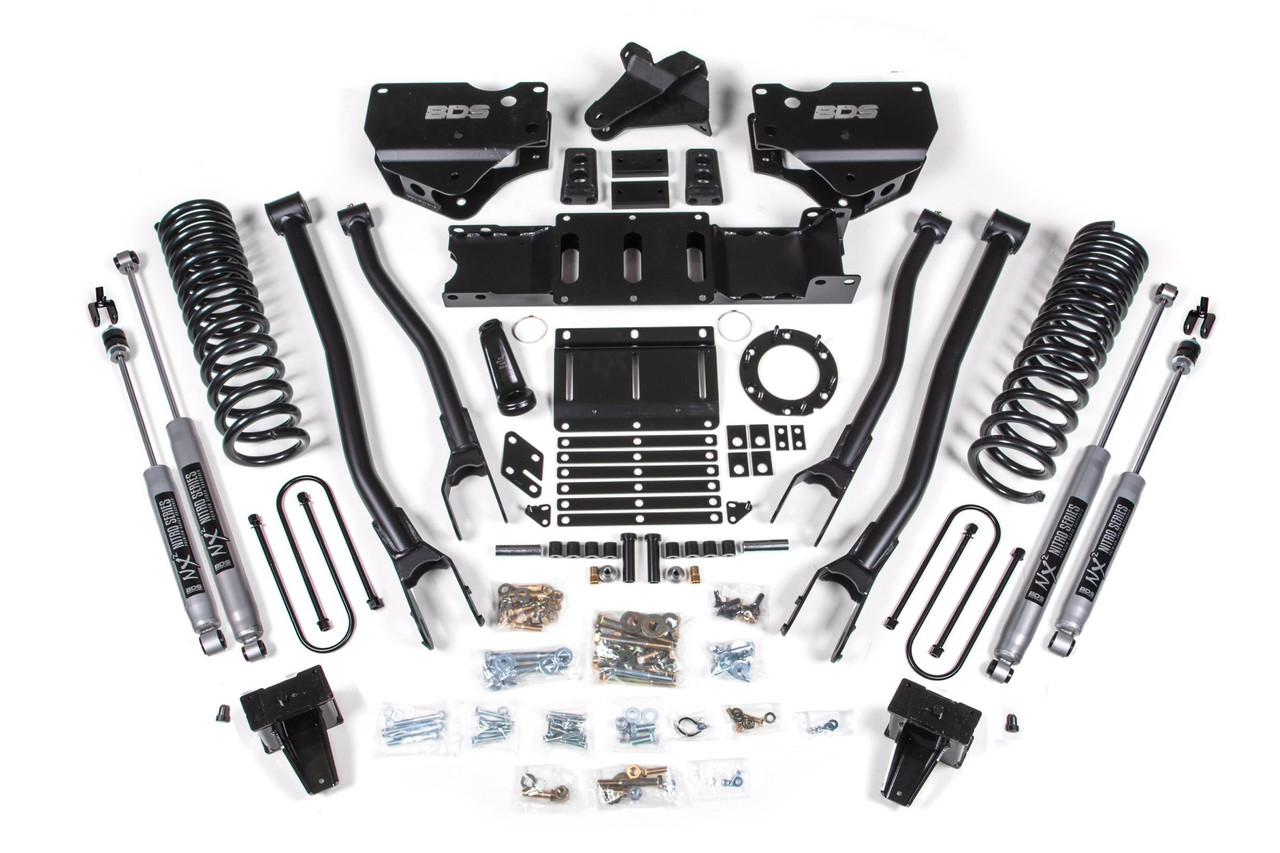

BDS SUSPENSION BDS1694FPE 5.5 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD GAS WITHOUT FACTORY REAR OVERLOAD LEAF FOX 2.5 PERFORMANCE ELITE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1694FPE
MPN:
BDS1694FPE
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1694FPE 5.5 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD GAS WITHOUT FACTORY REAR OVERLOAD LEAF FOX 2.5 PERFORMANCE ELITE SHOCKS
  • BDS SUSPENSION BDS1694FPE 5.5 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD GAS WITHOUT FACTORY REAR OVERLOAD LEAF FOX 2.5 PERFORMANCE ELITE SHOCKS
$5,517.65

Description

Raise your RAM 3500 gas powered truck to the next heights with this 5.5-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

  • (Trimming may be required)
  • 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Rear Lift Option
Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Shock Option

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty
  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 5.5 inch
  • Rear Lift Height: 5 inch

Kit Components:

  • Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
  • Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
  • Includes one BDS012526, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612635
  • Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
  • Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
  • Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
  • Includes one FOX88326102, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 inchРЎСљ Lift, Dual Speed Compression Adjust

Elevate your off-road experience with the BDS SUSPENSION BDS1694FPE 5.5 Inch Lift Kit, expertly designed for the RAM 3500, model years 2019-2024. This comprehensive lift kit transforms your gas-powered truck, increasing its height while optimizing performance and stance, all while accommodating up to 37" tires. The engineered components, including gas-specific Pro-Ride coil springs and a 4-link conversion system, ensure enhanced stability and handling on rugged terrains.

The kit features high-strength, forged components such as control arms, drop pitman arm, and a track bar bracket to correct steering geometry for a smooth riding experience. Enhanced with a sway bar relocation system, this kit maintains precise handling during cornering. The NX2 Nitro or FOX 2.0 Performance shocks included improve ride quality, ensuring comfort and control whether on or off the road.

A key highlight is the advanced 4-link conversion, transitioning from factory radius arms to a robust 4-link setup for optimized suspension geometry, improving both strength and handling. The full-length progressive rate Pro-Ride coil springs contribute to a predictable ride, delivering seamless travel across diverse surfaces.

Installation is made straightforward with supplied indexing rings and a new transmission crossmember for proper driveline alignment. This ensures functionality with your factory front driveshaft while raising overall performance.

Ideal for those looking for a combination of rugged capability and refined handling, the BDS1694FPE lift kit is tailored for the serious off-roader. Additional options, including FOX 2.5 Performance Elite shocks, provide adjustable versatility, enhancing dynamic performance based on terrain and load demands. Equipped with a 1-year manufacturer's warranty, this lift kit promises to be a lasting enhancement for your RAM 3500.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
