BDS SUSPENSION

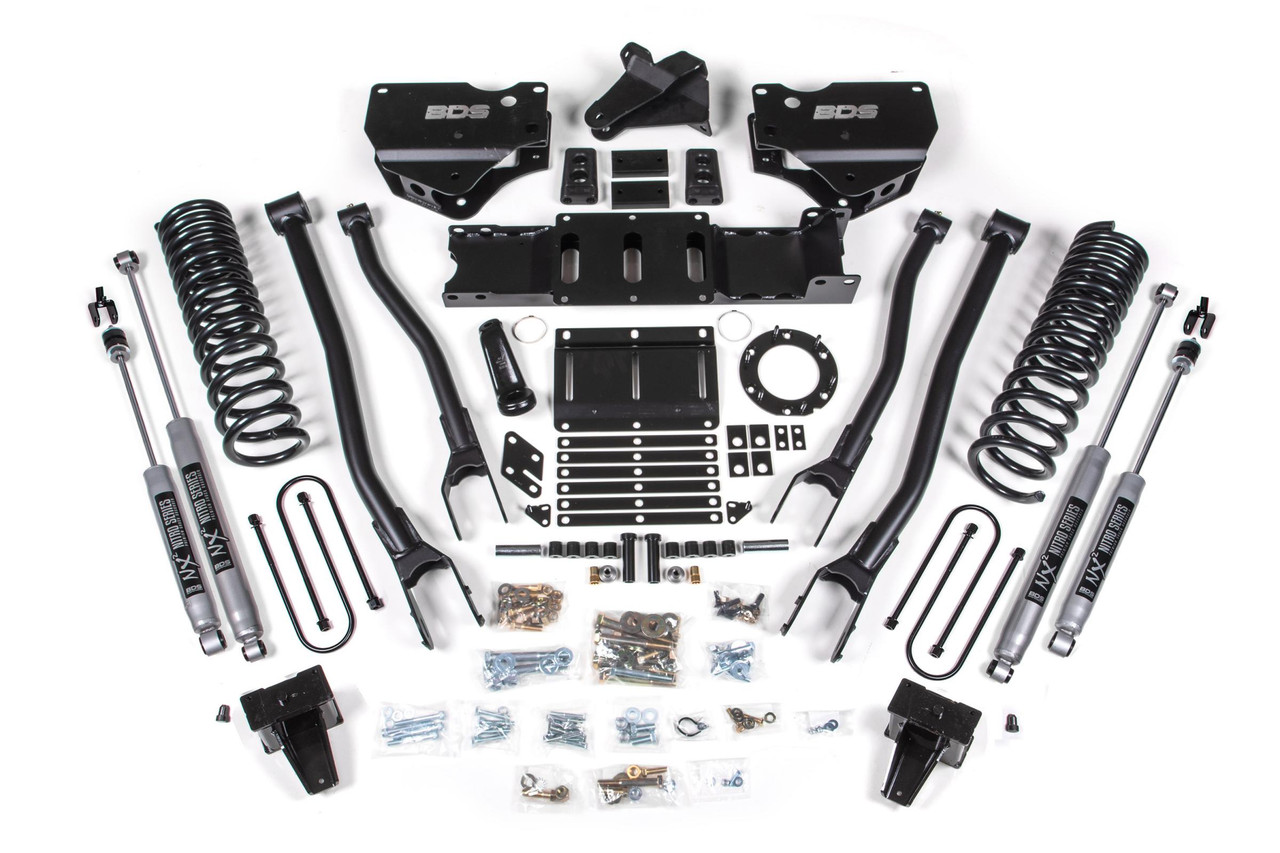

BDS SUSPENSION BDS1693FS 6 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 8 BOLT FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1693FS
MPN:
BDS1693FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1693FS 6 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 8 BOLT FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1693FS 6 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 8 BOLT FOX 2.0 PERFORMANCE SHOCKS
$3,982.90

Description

Raise your RAM 3500 diesel powered truck to the next heights with this 6-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 inch
  • Rear Lift Height: 5 inch
  1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option With Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

8 Bolt Indexing Ring

  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
  • The 8-bolt kit also
  • Includes an internal shaft seal extension and new shaft seal.

Kit Components:

  • Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
  • Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
  • Includes one BDS012527, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612642
  • Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel, UPC Code 658848616428
  • Includes one BDS122421, 2019-2024 Ram 3500 T-Case Index 18deg - 8 Bolt, UPC Code 658848619542
  • Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
  • Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Transform your RAM 3500 diesel truck with the BDS SUSPENSION BDS1693FS 6 Inch Lift Kit featuring a 4-Link conversion. Engineered for enthusiasts seeking enhanced stance, performance, and capability, this lift kit allows for the clearance of tires up to 37 inches. You’ll experience an elevated driving experience that combines rugged functionality with impressive aesthetics.

This comprehensive lift kit comes equipped with diesel-specific Pro-Ride coil springs and robust 4-Link control arms, along with essential conversion brackets for seamless installation. A forged drop pitman arm and a track bar bracket ensure optimal steering correction, while sway bar relocation and dedicated brake line brackets enhance safety and performance.

In addition to improving the front suspension, the rear features a high-strength steel lift block with longer u-bolts, paired with either NX2 Nitro or FOX 2.0 Performance shocks for superior ride quality. Designed for a smooth, predictable experience on any terrain, the full-length progressive rate Pro-Ride coil springs ensure proper lift height and ride comfort.

The heavy-duty 4-Link design optimizes handling characteristics, providing increased strength and stability while limiting caster changes during wheel travel. The bolt-on components use high-strength 1/4-inch steel brackets to correct axle positioning.

This lift kit comes with essential hardware for the 8-bolt Aisin transmission configurations and requires specific modifications for trucks equipped with a manual transfer case and 2-piece rear driveline configurations. Each component is crafted from durable materials, ensuring longevity and reliability for your off-road adventures.

Elevate your truck’s performance to new heights with the BDS SUSPENSION BDS1693FS 6 Inch Lift Kit, making it an essential upgrade for serious RAM 3500 enthusiasts. Enjoy enhanced capabilities while driving with confidence, whether on the road or off the beaten path.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
