BDS SUSPENSION

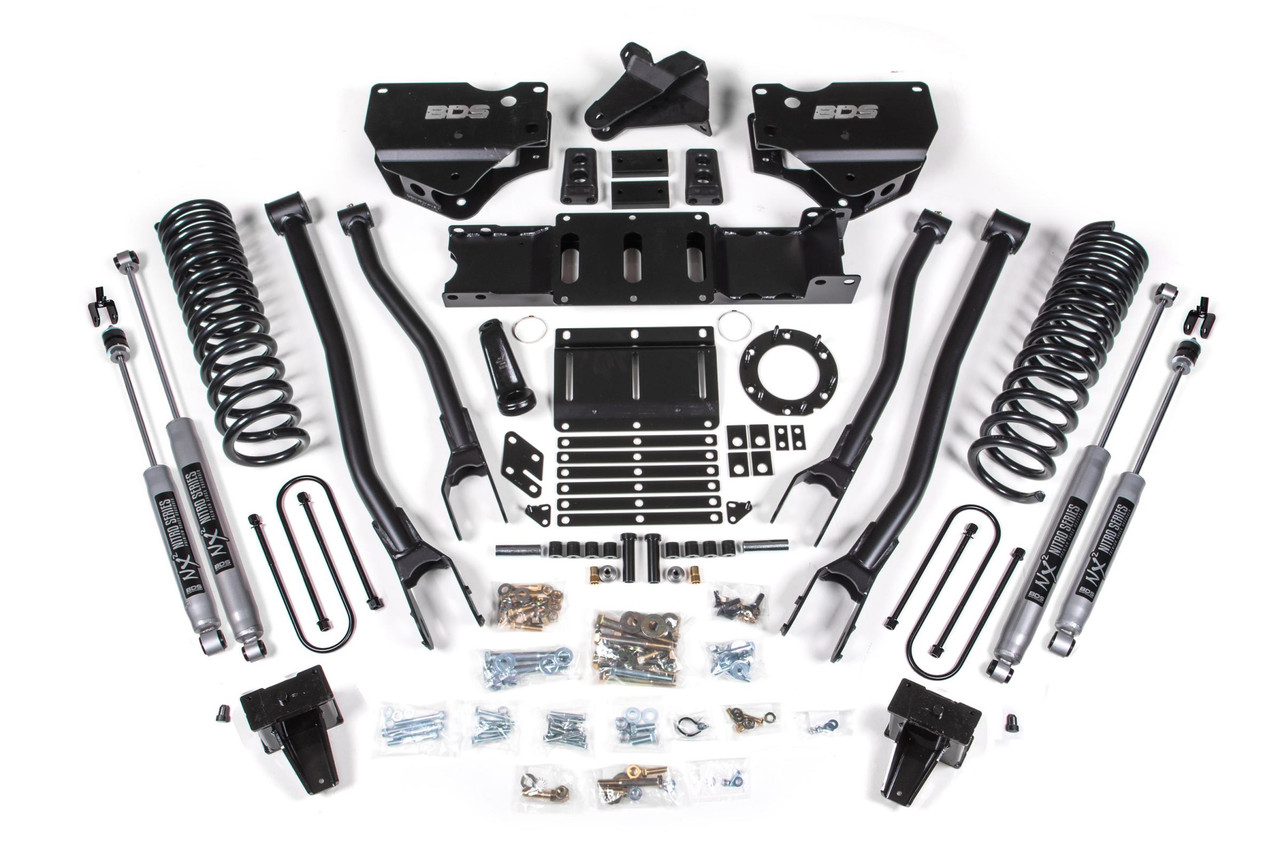

BDS SUSPENSION BDS1693FPE 6 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD DIESEL WITH FACOTRY REAR OVERLOAD LEAF 8 BOLT FOX 2.5 PERFORMANCE ELITE

(No reviews yet) Write a Review
SKU:
BDS1693FPE
MPN:
BDS1693FPE
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1693FPE 6 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD DIESEL WITH FACOTRY REAR OVERLOAD LEAF 8 BOLT FOX 2.5 PERFORMANCE ELITE
  • BDS SUSPENSION BDS1693FPE 6 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD DIESEL WITH FACOTRY REAR OVERLOAD LEAF 8 BOLT FOX 2.5 PERFORMANCE ELITE
$5,538.65

Description

Raise your RAM 3500 diesel powered truck to the next heights with this 6-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 inch
  • Rear Lift Height: 5 inch
  1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option With Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

8 Bolt Indexing Ring

  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
  • The 8-bolt kit also
  • Includes an internal shaft seal extension and new shaft seal.

Kit Components:

  • Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
  • Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
  • Includes one BDS012527, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612642
  • Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel, UPC Code 658848616428
  • Includes one BDS122421, 2019-2024 Ram 3500 T-Case Index 18deg - 8 Bolt, UPC Code 658848619542
  • Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
  • Includes one FOX88326102, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 inchРЎСљ Lift, Dual Speed Compression Adjust

Elevate your RAM 3500 diesel truck with the BDS1693FPE 6 Inch Lift Kit, a premier upgrade tailored for 2019-2024 models equipped with a 4WD system and factory rear overload leaf. This comprehensive lift kit is designed to enhance your vehicle’s stance, performance, and off-road capability, allowing for the installation of tires up to 37 inches in diameter, transforming your truck into the ultimate powerhouse.

This kit features robust diesel-specific Pro-Ride coil springs that deliver an optimal lift and a smooth ride across diverse terrains. The advanced 4-Link conversion enhances suspension geometry, improving handling while providing additional strength and stability. Included in this system are heavy-duty control arms and custom brackets designed from high-strength 1/4-inch steel, ensuring durability under heavy loads.

Installation is straightforward, with essential components such as a forged drop pitman arm and a track bar relocation bracket that fine-tune steering geometry to maintain control and performance. The heavy-duty rear lift utilizes a sturdy steel lift block paired with longer U-bolts and a choice between NX2 Nitro or FOX 2.0 Performance shocks, ensuring consistency and reliability on any surface.

The FOX 2.5 Performance Elite shocks included in this kit feature an external reservoir design for superior heat dissipation and dual-speed compression adjustments, providing the flexibility to adapt to varied terrains and loads. Each shock is fully serviceable and built to endure rigorous conditions, backed by a one-year manufacturer’s warranty.

Designed for those seeking to enhance both style and function, the BDS1693FPE Lift Kit is the definitive choice for serious off-road enthusiasts and everyday drivers alike. Embrace the adventure and conquer any landscape with confidence and capability.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
