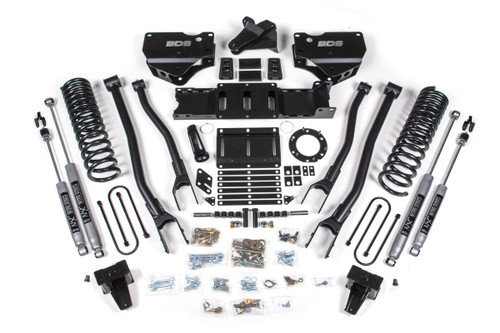

BDS SUSPENSION BDS1691H 6 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 6 BOLT NX2 NITRO SHOCKS

Raise your RAM 3500 diesel powered truck to the next heights with this 6-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option With Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Indexing Ring Option 6 Bolt Indexing Ring

• Kits come standard with 6-Bolt indexing ring kit.

Kit Components:

• Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
• Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
• Includes one BDS012527, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612642
• Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel, UPC Code 658848616428
• Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
• Includes two BDS85714, Shock - 26.78 x 15.96 x 2-3/8 - S50/EB2, UPC Code 711745609549
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

Transform your RAM 3500 into a true powerhouse with the BDS SUSPENSION BDS1691H 6-Inch Lift Kit. Tailored for 2019-2024 Diesel 4WD models, this comprehensive lift kit enhances your truck's stance, performance, and capability, accommodating up to 37-inch tires for a commanding presence on and off the road.

This lift kit features diesel-specific Pro-Ride coil springs that deliver a lofty 6 inches of lift in the front and 5 inches in the rear, combining a robust construction with progressive rate technology for a smooth ride over rough terrain. The innovative 4-Link conversion replaces the factory radius arms, optimizing suspension geometry for improved handling and stability. Crafted from high-strength 1/4-inch steel, the included brackets ensure superior axle positioning while minimizing caster change, enhancing everyday driving and off-road adventures alike.

Included with the kit are essential components such as a forged drop pitman arm, a heavy-duty track bar relocation bracket, and sway bar relocation brackets, all designed to maintain perfect steering alignment and performance after lift installation. Coupled with BDS NX2 or FOX 2.0 nitrogen-charged shocks, this kit maximizes ride quality, ensuring excellent dampening capabilities across various surfaces.

Installation is straightforward, thanks to the comprehensive instructions, and all necessary hardware is included. The heavy-duty 4-link setup reinforces strength and handling, while the transmission crossmember and indexing ring allow for proper driveline angles using factory driveshafts, ensuring durability and reliability.

Upgrade your RAM 3500 with the BDS1691H lift kit, and experience unmatched performance and style. Each ride becomes an adventure, elevating not just your truck’s height, but also your driving experience. Embrace the road ahead with confidence and power.
