BDS SUSPENSION BDS1689FPE 5.5 INCH LIFT KIT W/ 4-LINK RAM 2500 19-24 4WD GAS FOX 2.5 PERFORMANCE ELITE SHOCKS

Built to outperform, BDS Suspension engineered a 5.5-inch lift kit with 4-Link conversion for your 2019-2024 RAM 2500 gas powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 4.5 inch

1. Will NOT fit air-ride equipped models
2. Gas models only
3. Will NOT fit Power Wagon Models
4. Exhaust modification is required to clear front driveshaft. Vehicle can be driven w/o front driveshaft to an exhaust shop

• Heavy duty 4-link arms improve strength, handling and caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Tire Size: 37 x 13.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 18 x 9 Back Spacing: 5.625/5.625

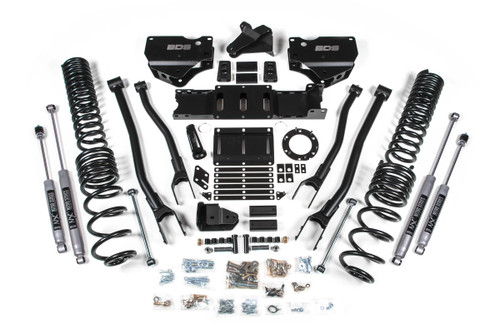

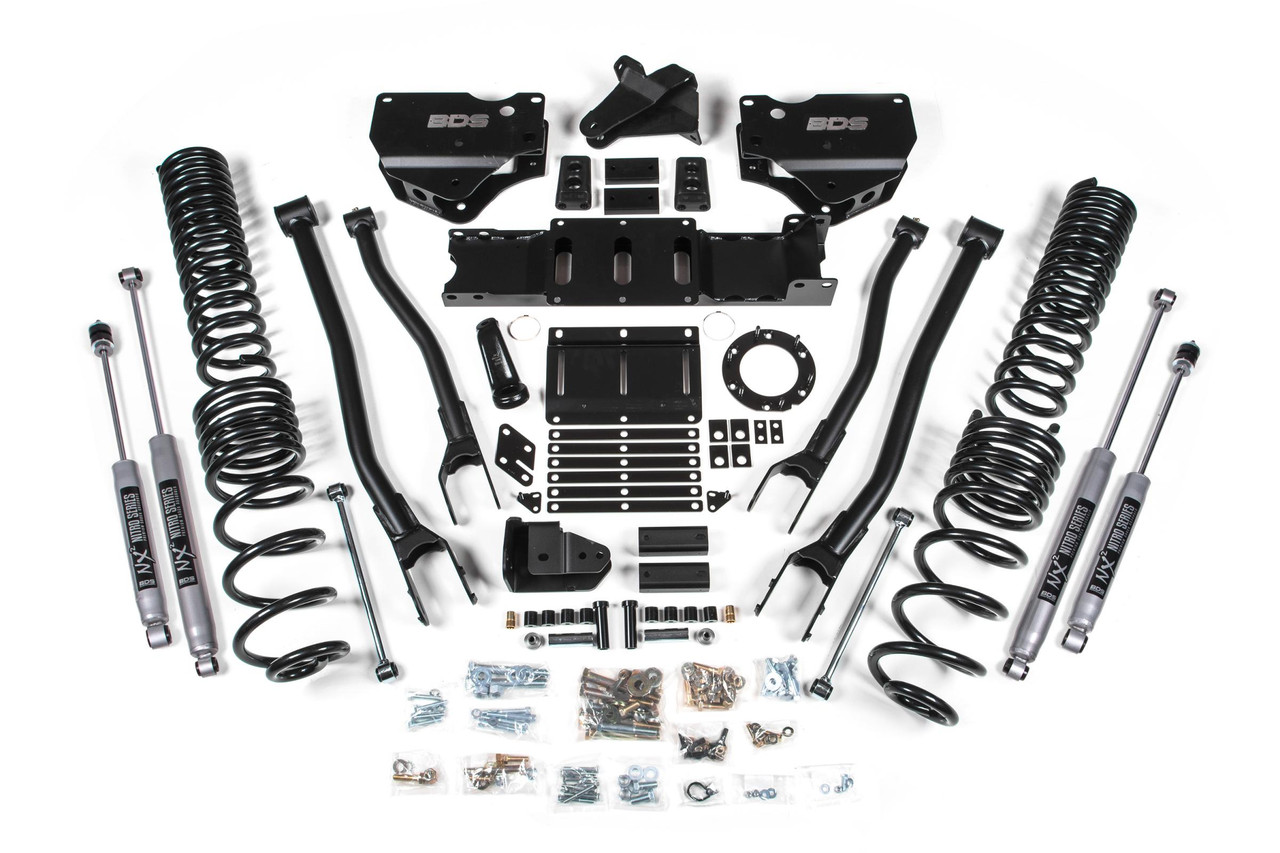

Kit Components:

• Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
• Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
• Includes one BDS012459, 2019-2024 Ram 2500 4.5 inch Rear Coil Box Kit, UPC Code 658848612482
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
• Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• Includes one FOX88326067, Kit: 2014-2023 Ram 2500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 11.1 inch, 4-6 inch Lift, Dual Speed Compression Adjust

Elevate your driving experience with the BDS Suspension BDS1689FPE 5.5-inch Lift Kit, expertly designed for the 2019-2024 RAM 2500 gas-powered models. This comprehensive lift kit transforms your truck, enhancing its stance, performance, and off-road capability while allowing clearance for impressive 37-inch tires.

The BDS1689FPE features robust Pro-Ride coil springs engineered specifically for gas applications, ensuring a smooth ride across diverse terrains. The kit's innovative 4-Link conversion optimizes suspension geometry, improving handling characteristics and stability. Built with high-strength 1/4-inch steel brackets, this upgrade allows for the secure mounting of heavy-duty upper and lower control arms, maintaining precise axle positioning throughout wheel travel.

Steering geometry is meticulously considered, enhanced by a forged drop pitman arm and a heavy-duty track bar drop bracket, which work in harmony to recenter the front axle and minimize steering angles. To ensure a balanced lift, the rear suspension also incorporates progressive rate Pro-Ride coil springs and various essential components, such as bump stop extensions and sway bar links.

Designed with off-road enthusiasts in mind, the BDS1689FPE comes equipped with advanced NX2 or FOX 2.5 Performance Elite shocks, providing unparalleled ride and off-road performance. The external reservoir design separates shock oil from high-pressure nitrogen, ensuring optimum performance across various terrains. With features like dual-speed compression adjustment, these shocks are tunable to match the load and speed of your vehicle.

This lift kit not only enhances your RAM 2500’s capabilities but also guarantees reliability and durability, backed by a one-year manufacturer’s warranty. Embrace new adventures and conquer any terrain with the BDS Suspension BDS1689FPE Lift Kit, a perfect blend of function, style, and performance.
