BDS SUSPENSION

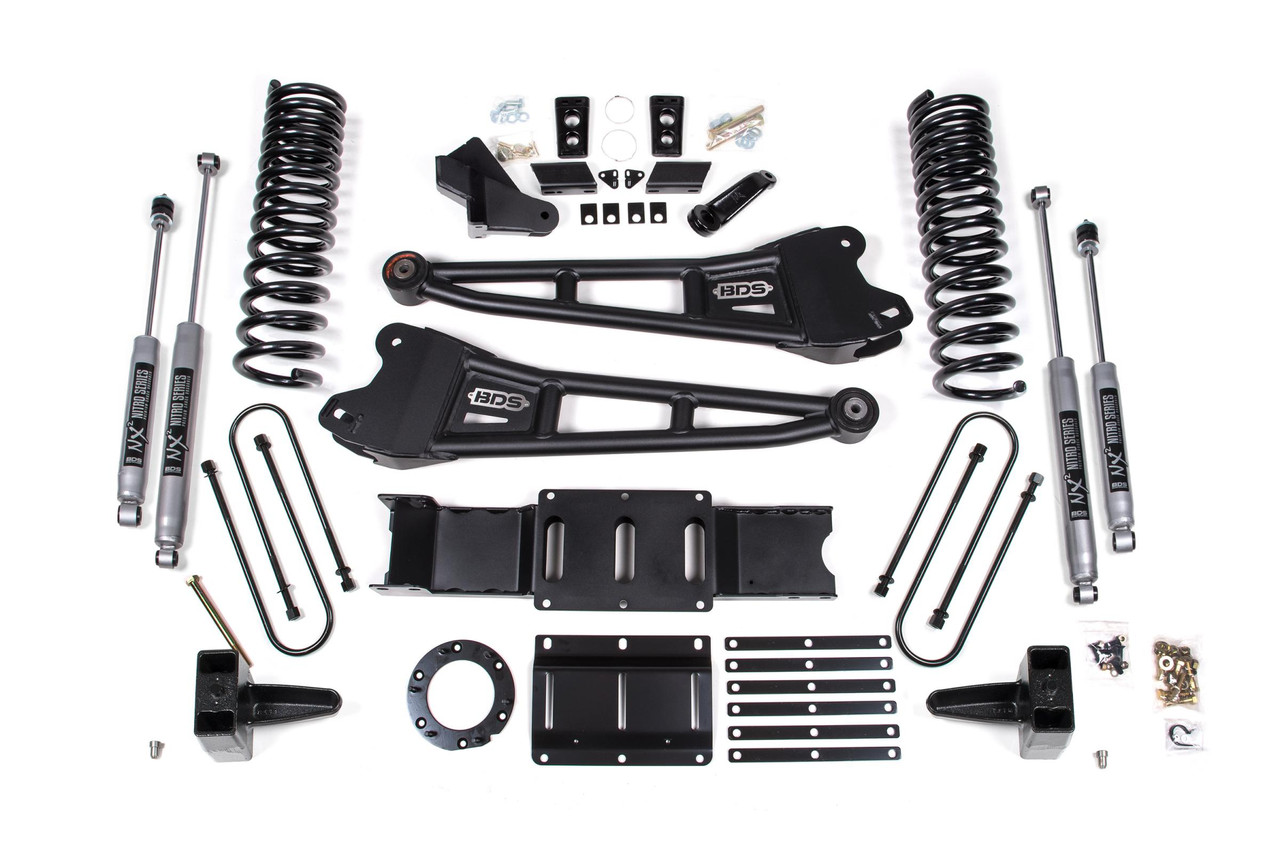

BDS SUSPENSION BDS1685FS 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 8 BOLT FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1685FS
MPN:
BDS1685FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1685FS 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 8 BOLT FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1685FS 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 8 BOLT FOX 2.0 PERFORMANCE SHOCKS
$2,708.55

Description

Raise your RAM 3500 diesel powered truck to the next heights with this 6-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 Inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 Inch
  • Rear Lift Height: 5 Inch
  1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  2. Mega Cab Inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop
  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option - With Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

8 Bolt Indexing Ring

  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
  • The 8-bolt kit also
  • Includes an internal shaft seal extension and new shaft seal.

Kit Components:

  • Includes one BDS012527, 2019-2024 Ram 3500 5 Inch Rear Box 4 3/8 Inch U-bolt w/ overload, UPC Code 658848612642
  • Includes one BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 Inch Radius Arm Front Box Kit, UPC Code 658848612758
  • Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 Inch Coils - Diesel, UPC Code 658848616428
  • Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
  • Includes one BDS122625, 2019-2024 Ram 3500 T-Case Index 15deg - 8 Bolt, UPC Code 658848619771
  • Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
  • Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Elevate your RAM 3500 diesel truck with the BDS SUSPENSION BDS1685FS 6 Inch Lift Kit featuring a robust radius arm design. Engineered for exceptional performance and off-road capability, this lift kit raises your ride height by six inches, providing ample clearance for up to 37-inch tires. The comprehensive package includes all components necessary to enhance your truck’s stance and handling both on and off the road.

The kit comes equipped with diesel-specific Pro-Ride coil springs that ensure a smooth, progressive ride tailored for uneven terrains. Heavy-duty replacement radius arms deliver increased strength, improve handling, and allow for caster adjustment, while the forged drop pitman arm and heavy-duty track bar bracket work together to optimize steering geometry and maintain vehicle equilibrium during suspension travel.

To accommodate the lift height, this kit also includes an indexing ring and new transmission crossmember, ensuring seamless compatibility with the factory front driveshaft. The rear assembly boasts a high-strength steel lift block combined with longer u-bolts and a matching set of either BDS NX2 Nitro or FOX 2.0 Performance shocks, both designed for top-tier responsiveness.

With features like sway bar relocation, precise brake line brackets, and an OE-style rubber bushing for smooth operation, the BDS1685FS lift kit guarantees enhanced stability and control. Its performance-oriented design extends beyond mere aesthetics, focusing on safety and reliability to improve your driving experience.

Whether tackling rough trails or enhancing your truck's appearance, the BDS Suspension 6 Inch Lift Kit is your pathway to unparalleled performance. Tailored for RAM 3500 models from 2019 to 2024, this lift kit makes an exceptional addition for anyone looking to elevate their off-road adventures.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
