BDS SUSPENSION

BDS SUSPENSION BDS1684H 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-24 4WD DIESEL WITHOUT FACTORY REAR OVERLOAD LEAF 8 BOLT NX2 NITRO SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1684H
MPN:
BDS1684H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1684H 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-24 4WD DIESEL WITHOUT FACTORY REAR OVERLOAD LEAF 8 BOLT NX2 NITRO SHOCKS
  • BDS SUSPENSION BDS1684H 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-24 4WD DIESEL WITHOUT FACTORY REAR OVERLOAD LEAF 8 BOLT NX2 NITRO SHOCKS
$2,148.55

Description

Raise your RAM 3500 diesel powered truck to the next heights with this 6-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 Inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 Inch
  • Rear Lift Height: 5 Inch
  1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  2. Mega Cab Inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop
  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option - Without Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

8 Bolt Indexing Ring

  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
  • The 8-bolt kit also
  • Includes an internal shaft seal extension and new shaft seal.

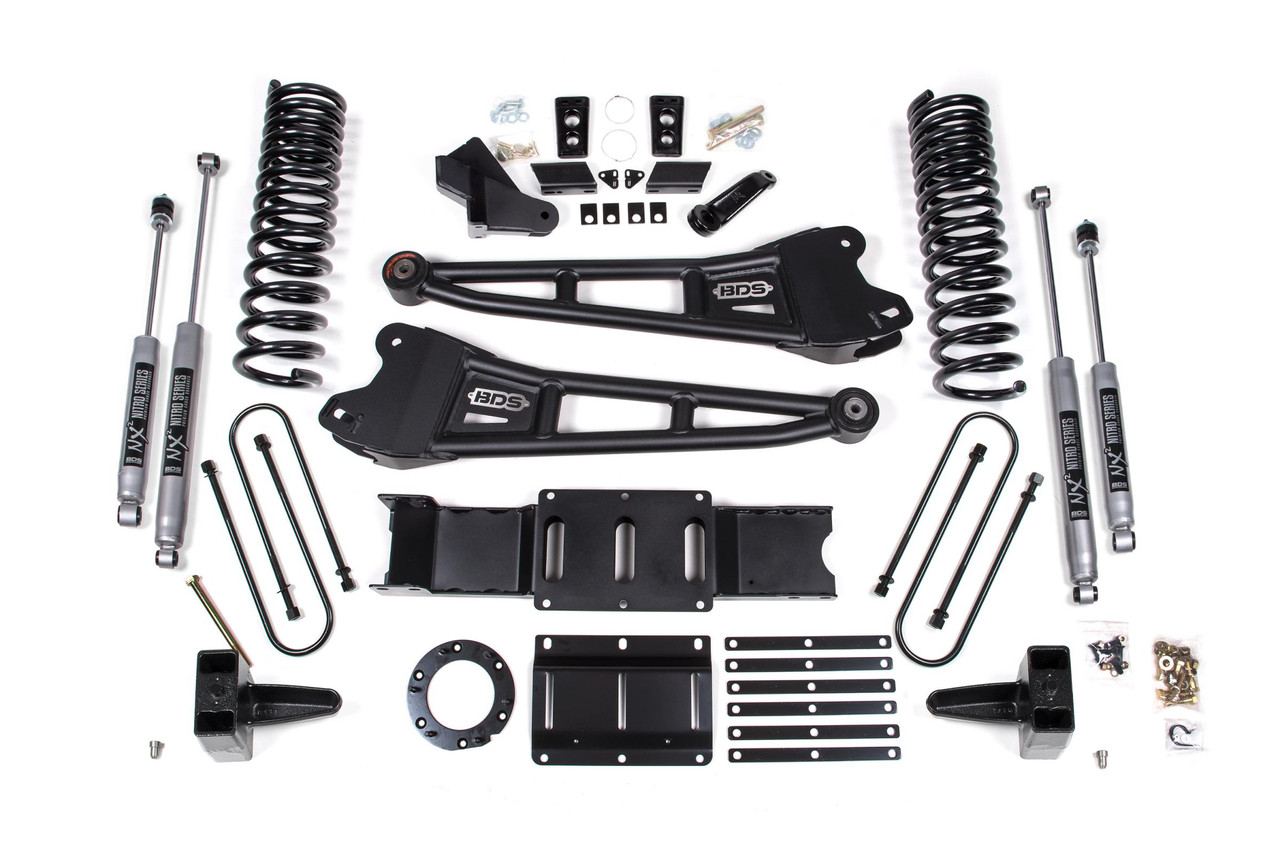

Kit Components:

  • Includes one BDS012526, 2019-2024 Ram 3500 5 Inch Rear Box 4 3/8 Inch U-bolt w/o overload, UPC Code 658848612635
  • Includes one BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 Inch Radius Arm Front Box Kit, UPC Code 658848612758
  • Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 Inch Coils - Diesel, UPC Code 658848616428
  • Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
  • Includes one BDS122625, 2019-2024 Ram 3500 T-Case Index 15deg - 8 Bolt, UPC Code 658848619771
  • Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
  • Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

Transform your RAM 3500 diesel truck into a commanding force both on and off the road with the BDS Suspension BDS1684H 6-Inch Lift Kit. Engineered specifically for the 2019-2024 model years without factory rear overload leaf, this lift kit elevates your truck’s performance, stance, and capability by providing the necessary height to accommodate up to 37-inch tires.

This comprehensive kit comes packed with essential components to optimize your RAM’s suspension system. Up front, diesel-specific Pro-Ride coil springs ensure a smooth and predictable ride while handling the toughest terrains. Heavy-duty tubular radius arms replace the factory stamped steel arms to enhance strength and handling, all while offering caster adjustment for a variety of lift heights. The inclusion of a forged drop pitman arm and track bar relocation bracket corrects the steering geometry, ensuring a safe and responsive drive.

In the rear, high-strength steel lift blocks and longer u-bolts, paired with precision-tuned NX2 Nitro or FOX 2.0 shocks, provide excellent stability and comfort. The kit also includes an indexing ring and a new transmission crossmember to ensure correct driveline angles, allowing the use of factory driveshafts with ease.

With features like front sway bar correction and an HD radius arm box kit, this lift system enhances both off-road performance and daily drivability. Nitrogen-charged shocks with 10-stage velocity-sensitive valving provide exceptional ride quality, whether you're tackling rugged trails or cruising on the highway.

Elevate your truck’s capabilities with the BDS Suspension BDS1684H 6-Inch Lift Kit, and experience unmatched strength, handling, and off-road prowess.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
