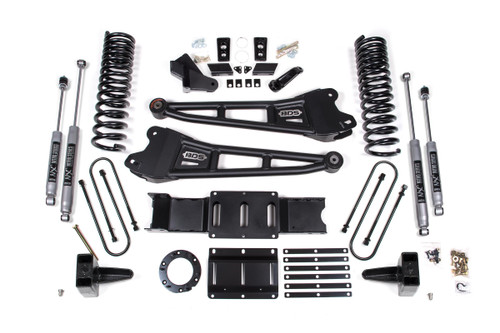

BDS SUSPENSION BDS1684FS 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-24 4WD DIESEL WITHOUT FACTORY REAR OVERLOAD LEAF 8 BOLT FOX 2.0 PERFORMANCE SHOCKS

Raise your RAM 3500 diesel powered truck to the next heights with this 6-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 Inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 Inch
• Rear Lift Height: 5 Inch

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
2. Mega Cab Inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option - Without Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

8 Bolt Indexing Ring

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
• The 8-bolt kit also
• Includes an internal shaft seal extension and new shaft seal.

Kit Components:

• Includes one BDS012526, 2019-2024 Ram 3500 5 Inch Rear Box 4 3/8 Inch U-bolt w/o overload, UPC Code 658848612635
• Includes one BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 Inch Radius Arm Front Box Kit, UPC Code 658848612758
• Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 Inch Coils - Diesel, UPC Code 658848616428
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes one BDS122625, 2019-2024 Ram 3500 T-Case Index 15deg - 8 Bolt, UPC Code 658848619771
• Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Elevate your RAM 3500 diesel truck with the BDS1684FS 6-Inch Lift Kit, designed for 2019-2024 4WD models without the factory rear overload leaf. This lift kit is engineered to enhance the stance, performance, and off-road capability of your truck, providing ample clearance for up to 37-inch tires.

The kit encompasses all essential components to ensure a seamless installation, including heavy-duty replacement radius arms, specially designed Pro-Ride coil springs for a smooth ride, and accurately tuned nitrogen-charged FOX 2.0 performance shocks. These advanced shocks enhance off-road handling while providing superior comfort on various terrains.

The BDS1684FS kit features high-strength tubular radius arms, which improve strength and caster control, allowing for optimized handling. A forged drop pitman arm corrects steering angles, ensuring your truck remains responsive and stable, even at increased heights. Additionally, the sway bar relocation and brake line brackets integrate smoothly into your existing setup, maintaining functionality and safety.

To accommodate the lift, the included indexing ring aligns the transfer case to utilize the factory front driveshaft, while the anti-roll system enhances lateral stability. The rear is elevated with a durable steel lift block and extended u-bolts to match the front lift, offering a balanced appearance and robust capability.

With the BDS SUSPENSION lift kit, not only will your RAM 3500 perform better off-road, but it will also turn heads wherever you go. Experience the combination of rugged reliability and refined driving dynamics with this comprehensive lift solution, ideal for both work and play. Unlock the true potential of your truck and conquer any terrain with confidence.
