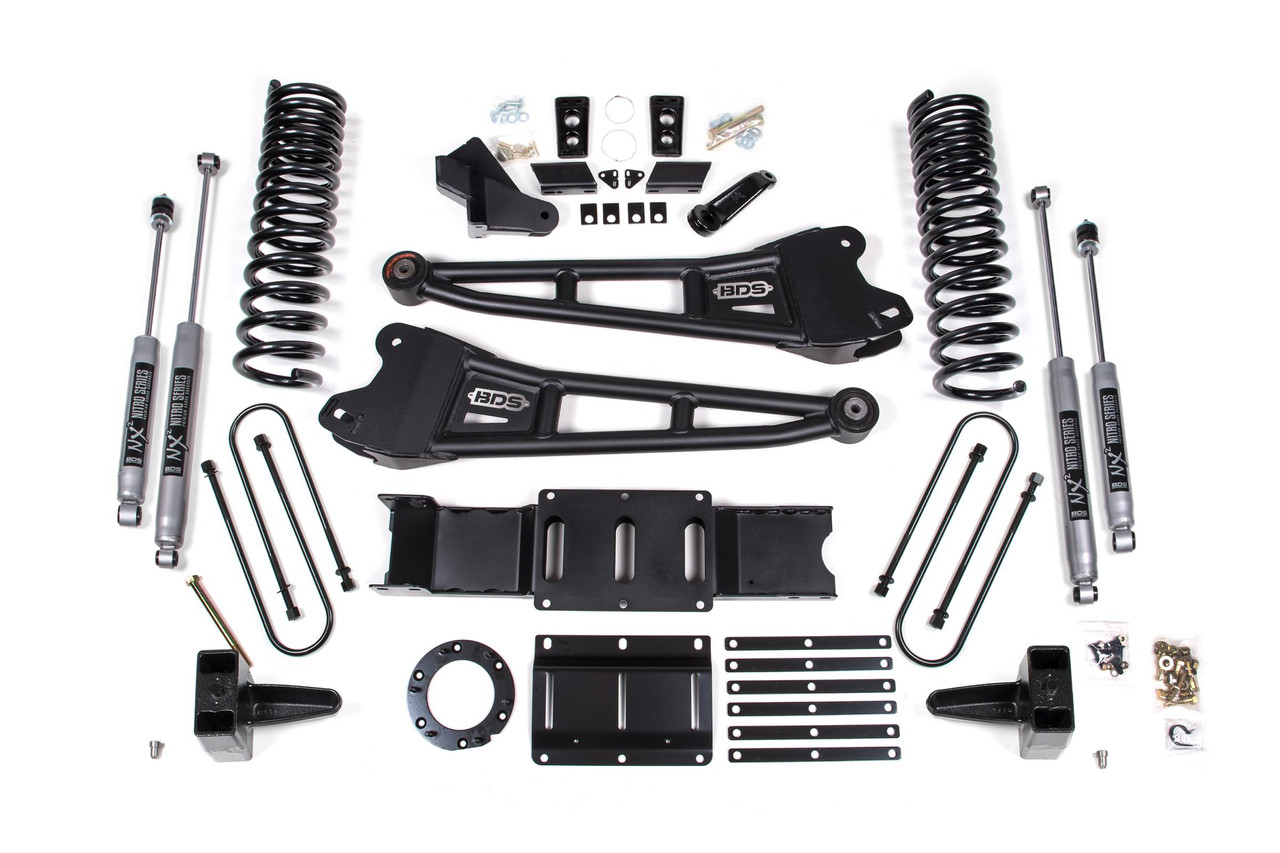

BDS SUSPENSION BDS1684FPE 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-24 4WD DIESEL WITHOUT FACTORY REAR OVERLOAD LEAF 8 BOLT FOX 2.5 PERFORMANCE ELITE SHOCKS

Raise your RAM 3500 diesel powered truck to the next heights with this 6-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 Inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 Inch
• Rear Lift Height: 5 Inch

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
2. Mega Cab Inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option - Without Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

8 Bolt Indexing Ring

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
• The 8-bolt kit also
• Includes an internal shaft seal extension and new shaft seal.

Kit Components:

• Includes one BDS012526, 2019-2024 Ram 3500 5 Inch Rear Box 4 3/8 Inch U-bolt w/o overload, UPC Code 658848612635
• Includes one BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 Inch Radius Arm Front Box Kit, UPC Code 658848612758
• Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 Inch Coils - Diesel, UPC Code 658848616428
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes one BDS122625, 2019-2024 Ram 3500 T-Case Index 15deg - 8 Bolt, UPC Code 658848619771
• Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 Inch Lift, Dual Speed Compression Adjust
• Includes one FOX88326102, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 InchРЎСљ Lift, Dual Speed Compression Adjust

Elevate your RAM 3500 diesel truck with the BDS SUSPENSION BDS1684FPE 6 Inch Lift Kit, engineered to enhance performance, stance, and off-road capability. Designed specifically for 4WD models from 2019 to 2024, this comprehensive lift kit gives your truck the clearance necessary for fitting up to 37-inch tires, transforming its presence on any terrain.

At the forefront of the BDS1684FPE kit are diesel-specific Pro-Ride coil springs that ensure a smooth and reliable ride. The inclusion of high-strength tubular radius arms replaces the factory units, providing increased strength and precise caster adjustment for a versatile range of lift heights. A forged drop pitman arm and robust track bar bracket are also included, aiding in steering correction and axle recentering for optimal handling.

The rear of the kit features a sturdy steel lift block and longer u-bolts, coupled with superior NX2 or FOX 2.0 Performance shocks for an unmatched driving experience. This lift kit employs an indexing ring and transmission crossmember to ensure your factory front driveshaft operates smoothly, accommodating the necessary adjustments for the transferred case.

The FOX 2.5 Performance Elite shocks included in this kit significantly enhance off-road capabilities. With features such as a 2.5-inch aluminum body, adjustable dual-speed compression, and full serviceability, they’re tailored for optimal performance tailored to terrain conditions.

Comprehensive and sturdy, the BDS1684FPE 6 Inch Lift Kit includes everything you need for a significant vehicle upgrade without the factory overload leaf. Whether tackling rugged trails or navigating city streets, this lift kit promises a remarkable transformation in performance and aesthetics for your RAM 3500. Enjoy smooth rides, superior handling, and a bold new look, all backed by BDS’s commitment to quality.
