BDS SUSPENSION

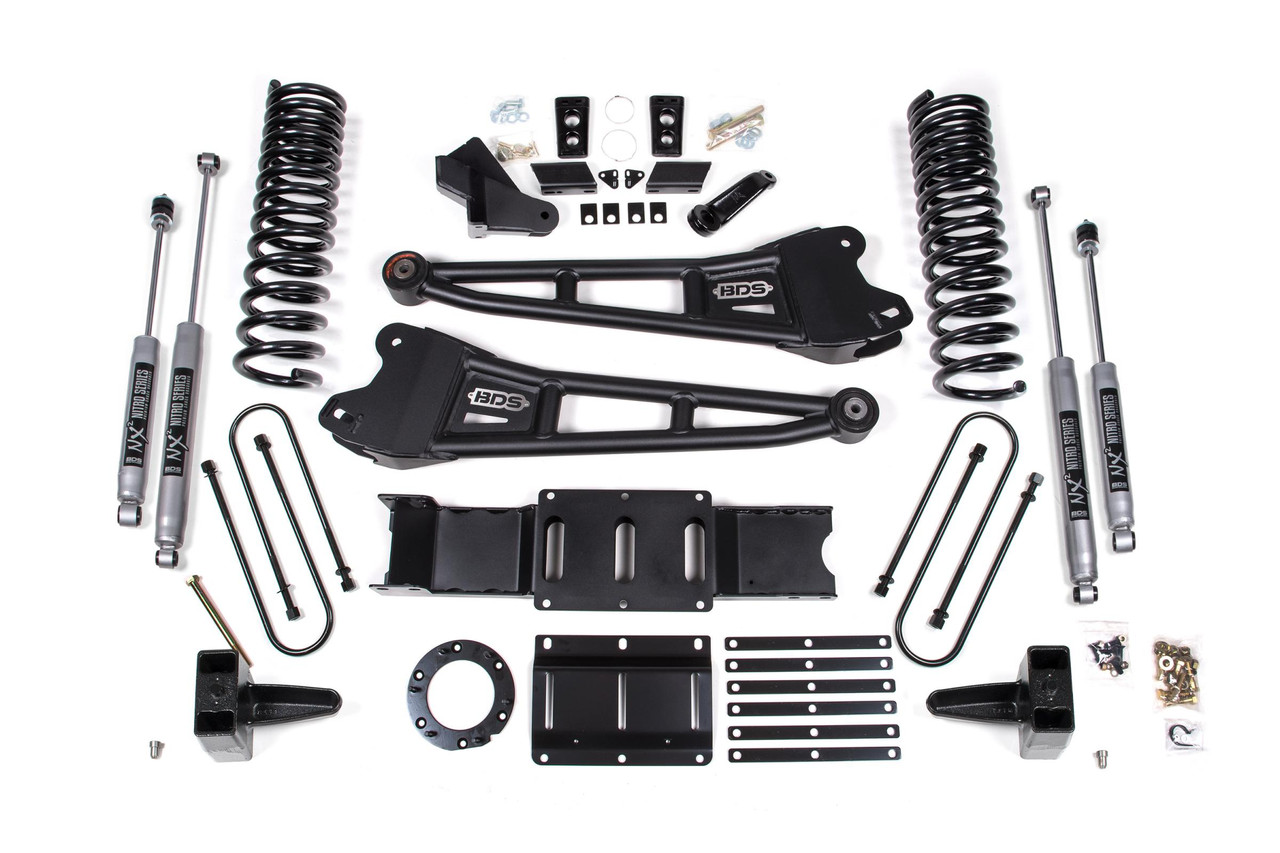

BDS SUSPENSION BDS1683FS 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 6 BOLT FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1683FS
MPN:
BDS1683FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1683FS 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 6 BOLT FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1683FS 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 6 BOLT FOX 2.0 PERFORMANCE SHOCKS
$2,708.55

Description

Raise your RAM 3500 diesel powered truck to the next heights with this 6-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 Inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 Inch
  • Rear Lift Height: 5 Inch
  1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  2. Mega Cab Inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop
  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option - With Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Indexing Ring Option 6 Bolt Indexing Ring

  • Kits come standard with 6-Bolt indexing ring kit.

Kit Components:

  • Includes one BDS012527, 2019-2024 Ram 3500 5 Inch Rear Box 4 3/8 Inch U-bolt w/ overload, UPC Code 658848612642
  • Includes one BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 Inch Radius Arm Front Box Kit, UPC Code 658848612758
  • Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 Inch Coils - Diesel, UPC Code 658848616428
  • Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
  • Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
  • Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
  • Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Elevate your RAM 3500 diesel truck's capabilities with the BDS Suspension BDS1683FS 6 Inch Lift Kit featuring Radius Arms. Specifically engineered for 2019-2024 models, this comprehensive lift kit enhances both off-road performance and on-road handling, delivering a robust upgrade for serious truck enthusiasts.

The heart of this lift kit is its impressive 6-inch front lift, achieved through diesel-specific Pro-Ride coil springs. These full-length, progressive rate springs provide the ideal height while ensuring a smooth ride across diverse terrains. Complemented by heavy-duty tubular radius arms, which replace factory components, the kit delivers improved strength and caster control, marrying functionality with durability.

Steering mechanics are expertly addressed with a forged drop pitman arm and heavy-duty track bar relocation bracket. This attention to detail minimizes steering angles, ensuring the wheels remain aligned and responsive, even on the roughest paths. Additionally, a comprehensive high-strength steel lift block, longer u-bolts, and performance shocks—either NX2 or FOX 2.0—enhance the driving experience by absorbing shocks and bumps effectively.

Installation is straightforward, thanks to the included indexing ring and heavy-duty transmission crossmember that facilitate the use of your factory front driveshaft without a hitch. The kit also comes with sway bar relocation and brake line brackets, ensuring everything aligns perfectly for optimal performance.

Whether you're tackling tough off-road trails or cruising through urban landscapes, the BDS1683FS lift kit transforms your RAM 3500 into a commanding presence. With compatibility for up to 37-inch tires, it's more than just a lift; it's a complete reimagining of your vehicle's potential. Experience strength, style, and unparalleled performance with this meticulously engineered lift kit.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
