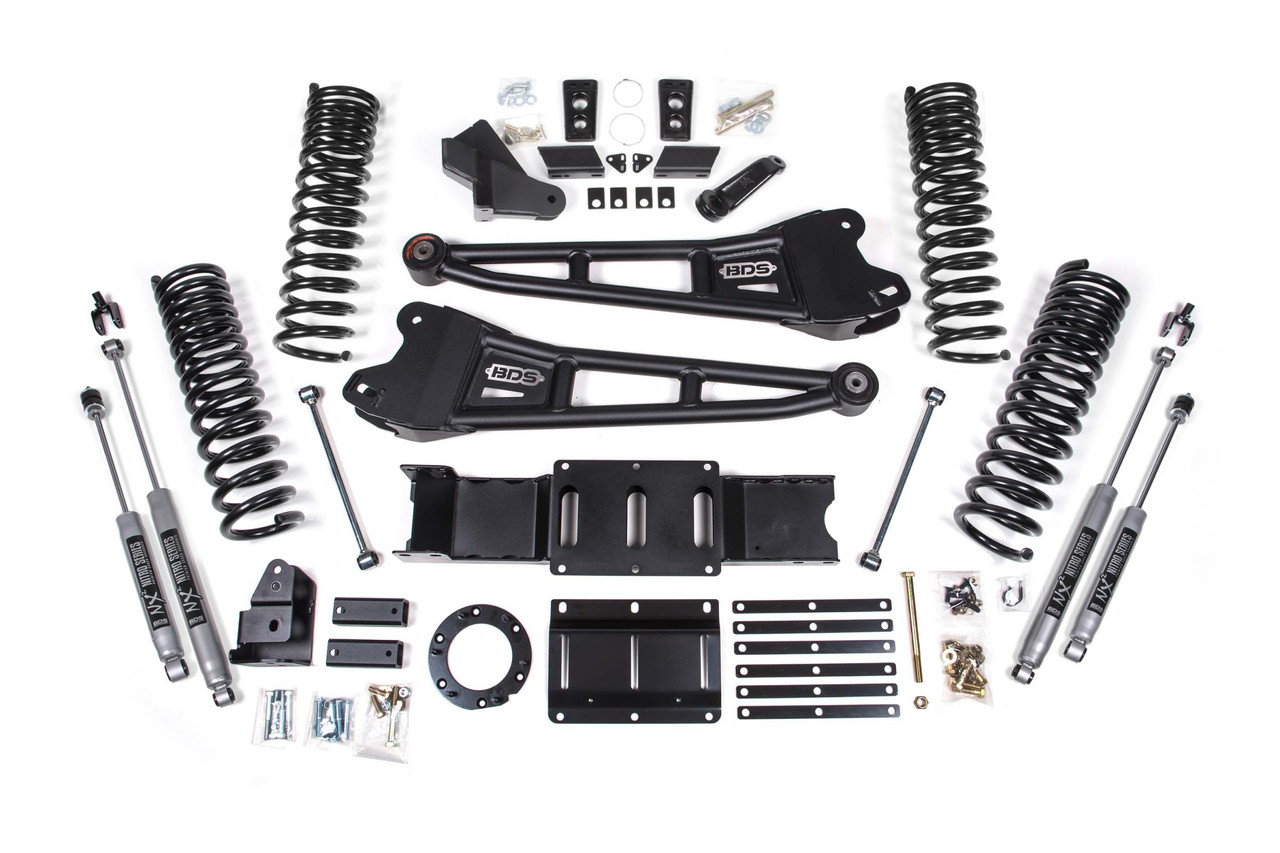

BDS SUSPENSION BDS1681H 5.5 INCH LIFT KIT W/ RADIUS ARM RAM 2500 19-24 4WD GAS NX2 NITRO SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1681H
MPN:
BDS1681H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1681H 5.5 INCH LIFT KIT W/ RADIUS ARM RAM 2500 19-24 4WD GAS NX2 NITRO SHOCKS
  • BDS SUSPENSION BDS1681H 5.5 INCH LIFT KIT W/ RADIUS ARM RAM 2500 19-24 4WD GAS NX2 NITRO SHOCKS
$2,357.55

Description

Take your RAM 2500 gas powered truck to the next level with this 5.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Coil Springs
  • Shocks Included: Yes
  • Front Lift Height: 5.5 inch
  • Rear Lift Height: 4.5 inch
  1. Will NOT fit air-ride equipped models
  2. Gas models only
  3. Will NOT fit Power Wagon Models
  4. Exhaust modification is required to clear front driveshaft. Vehicle can be driven w/o front driveshaft to an exhaust shop
  • Heavy duty 4-link arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Tire Size: 37 x 13.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 18 x 9 Back Spacing: 5.625/5.625

Kit Components:

  • Includes one BDS012459, 2019-2024 Ram 2500 4.5 inch Rear Coil Box Kit, UPC Code 658848612482
  • Includes one BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 inch Radius Arm Front Box Kit, UPC Code 658848612758
  • Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
  • Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
  • Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
  • Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
  • Includes two BDS85756, Shock- 27.9 x 16.6 x 2-3/8 - Special/EB1, UPC Code 711745609655

Transform your RAM 2500 gas-powered truck with the BDS SUSPENSION BDS1681H 5.5-Inch Lift Kit featuring radius arms, specifically engineered for 2019-2024 4WD models. This comprehensive lift kit not only enhances the vehicle's stance but also significantly improves performance and off-road capability. With the ability to accommodate up to 37-inch tires, your truck will dominate any terrain with confidence.

Key components of the lift kit include gas-specific Pro-Ride coil springs and robust replacement radius arms, designed to work seamlessly with your truck’s existing architecture. The kit ensures precise steering correction through a forged drop pitman arm and included track bar bracket. Furthermore, it features sway bar relocation and precise brake line brackets, maintaining optimal functionality throughout its operation.

The rear of the kit complements the front with progressive rate Pro-Ride coil springs that enhance ride quality and handling. It also incorporates a track bar relocation bracket to accurately position the axle and ensure a stable drive. The enhanced buoyancy and damping are provided by NX2 Nitro or FOX 2.0 performance shocks, which are engineered for reliability and off-road performance.

Constructed from high-strength materials, the included heavy-duty radius arms allow for caster adjustment and smooth, quiet operation. The innovative suspension geometry minimizes steering angles at lifted heights, promoting increased accuracy and control while driving.

For optimal fitment, the kit requires modification of the exhaust system to clear the front driveshaft, ensuring compatibility with factory components. This meticulously designed lift kit represents a perfect blend of strength, durability, and elevated performance for the discerning truck enthusiast, making it the ultimate upgrade for your RAM 2500.
