BDS SUSPENSION BDS1677FS 4 INCH LIFT KIT W/ 4-LINK RAM 3500 19-23 4WD GAS WITH FACTORY REAR OVERLOAD LEAF FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1677FS
MPN:
BDS1677FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1677FS 4 INCH LIFT KIT W/ 4-LINK RAM 3500 19-23 4WD GAS WITH FACTORY REAR OVERLOAD LEAF FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1677FS 4 INCH LIFT KIT W/ 4-LINK RAM 3500 19-23 4WD GAS WITH FACTORY REAR OVERLOAD LEAF FOX 2.0 PERFORMANCE SHOCKS
$2,872.55

Description

Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

  • Front Lift Method: 4-Link
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 3 inch
  1. A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
  2.  Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
  3. Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension.
  4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Rear Lift Option - With Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

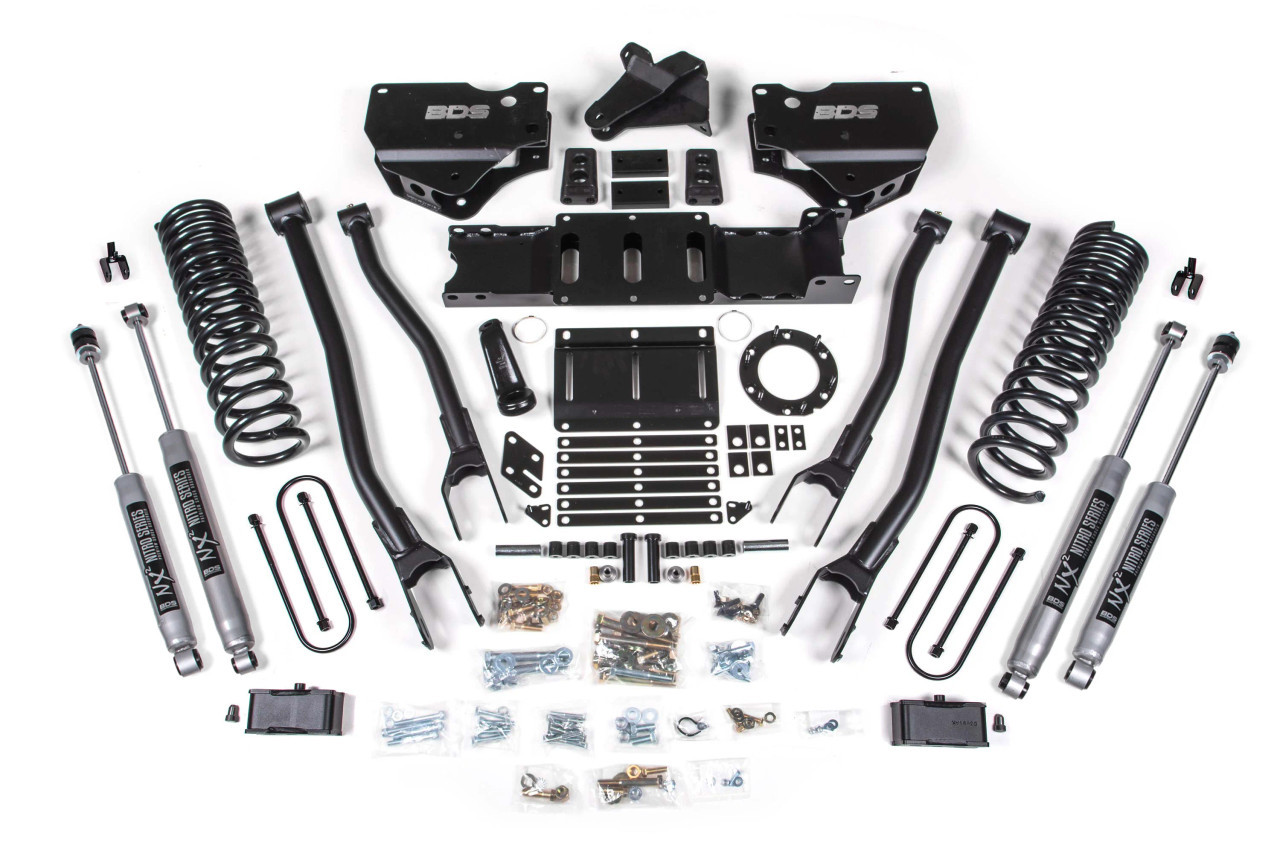

Kit Components:

  • Includes one BDS012329, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612291
  • Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
  • Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
  • Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
  • Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
  • Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
  • Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevate your truck’s off-road capabilities and overall performance with the BDS Suspension BDS1677FS 4-Inch Lift Kit, specifically designed for the 2019-2023 RAM 3500 4WD gas models with factory rear overload leaf springs. This exceptional lift kit not only enhances the stance of your vehicle but also ensures compatibility with tire sizes up to 35 inches, empowering your adventures on rough terrain.

Featuring a comprehensive 4-Link conversion, this kit comes with gas-specific Pro-Ride coil springs, control arms, and conversion brackets that collectively work to optimize ride quality and handling. The forged drop pitman arm and track bar bracket are included for necessary steering correction, while sway bar relocation and brake line brackets ensure proper alignment and performance under heightened suspension conditions. Experience unparalleled comfort and control with the included precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks.

The installation is straightforward, with an indexing ring and a new transmission crossmember provided for proper use of the factory front driveshaft. In the rear, a durable high-strength steel lift block and longer u-bolts are part of the assembly, complemented by a matching set of performance shocks to guarantee a smooth ride.

For added versatility, separate options are available for models equipped with factory rear overload leaf springs. Built with a remarkable 2-inch impact extruded aluminum body, the FOX 2.0 shocks are engineered with a high-flow piston design and application-specific valving, maximizing your driving experience.

Complete with all necessary components and easy-to-follow instructions, the BDS1677FS Lift Kit will transform your RAM 3500 into a powerhouse that is as visually striking as it is performance-ready, offering reliable height adjustments to conquer every terrain with confidence.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
