BDS SUSPENSION

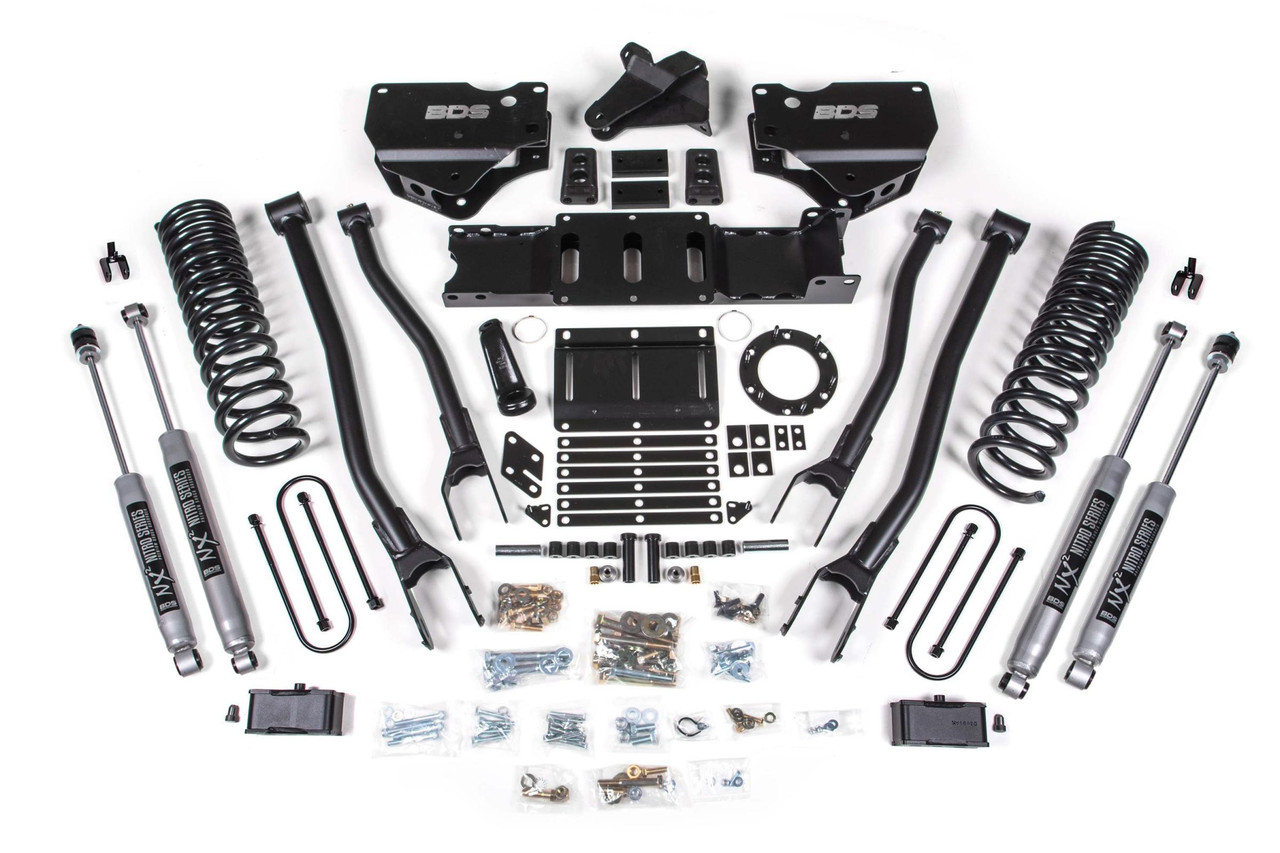

BDS SUSPENSION BDS1676H 4 INCH LIFT KIT W/ 4-LINK RAM 3500 19-23 4WD GAS WITHOUT FACTORY REAR OVERLOAD LEAF NX2 NITRO SHOCKS
- SKU:
- BDS1676H
- MPN:
- BDS1676H
- Shipping:
- Calculated at Checkout
Description
Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
- Front Lift Method: 4-Link
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 3 inch
- A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
- Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
- Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension.
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
Rear Lift Option - Without Factory Rear Overload Leaf
Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.
Shock Option NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Kit Components:
- Includes one BDS012328, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 711745611511
- Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
- Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
- Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
- Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
- Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
- Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686
Featuring a robust 4-inch front lift through Pro-Ride coil springs, the kit includes precision-engineered 4-Link control arms and conversion brackets. The inclusion of a forged drop pitman arm and track bar bracket ensures steering correction, while sway bar relocation and brake line brackets further enhance the setup. The NX2 Nitro or FOX 2.0 nitrogen-charged shocks provide exceptional off-road performance, showcasing advanced tuning for a smooth ride.
In the rear, this lift kit utilizes a high-strength steel lift block, complemented by longer u-bolts and matched NX2 or FOX shocks. This comprehensive setup comfortably supports up to 35-inch tires, enhancing the rugged stance and off-road capability of your truck.
To accommodate the lift, the transfer case is indexed for seamless compatibility with the factory front driveshaft, while a new transmission crossmember is provided. For Dually or Mega Cab models equipped with Aisin transmissions, a DEF tank relocation bracket is required to finalize the installation. Additionally, exhaust modifications may be necessary to clear the front driveshaft.
Crafted for those who demand performance and resilience, the BDS Suspension BDS1676H Lift Kit delivers an unbeatable combination of quality and capability, making it the ultimate enhancement for your RAM 3500. Embrace every adventure with confidence, knowing your truck is built to tackle the toughest terrains.
