BDS SUSPENSION BDS1676FS 4 INCH LIFT KIT W/ 4-LINK RAM 3500 19-23 4WD GAS WITHOUT FACTORY REAR OVERLOAD LEAF FOX 2.0 PERFORMANCE SHOCKS

Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

• Front Lift Method: 4-Link
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
2.  Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
3. Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension.
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Rear Lift Option - Without Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

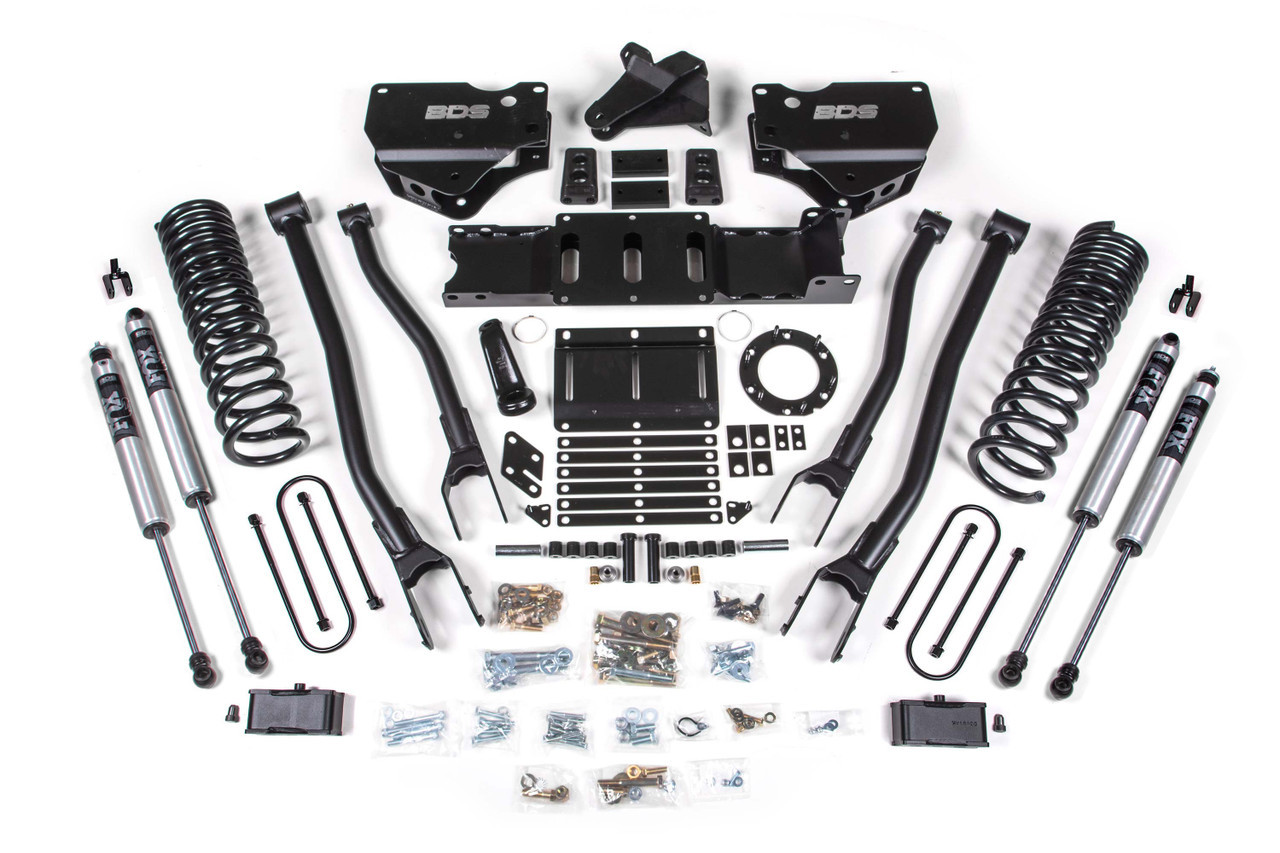

Kit Components:

• Includes one BDS012328, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 711745611511
• Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
• Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
• Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
• Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
• Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevate your RAM 3500 with the BDS SUSPENSION BDS1676FS 4-inch Lift Kit featuring a robust 4-Link system. Designed for 2019-2023 4WD gas models without factory rear overload leafs, this lift kit enhances both performance and aesthetics, allowing for the installation of larger tires up to 35 inches.

The front of the kit is equipped with gas-specific Pro-Ride coil springs, precision-engineered 4-Link control arms, and all necessary conversion brackets to ensure a smooth installation. Additionally, a forged drop pitman arm and track bar bracket are included to maintain optimal steering geometry. Sway bar relocation, brake line brackets, and top-tier NX2 or FOX 2.0 nitrogen-charged shocks guarantee a comfortable ride while absorbing the toughest terrains.

The rear section utilizes a high-strength steel lift block and longer u-bolts paired with matching performance shocks, ensuring durability and stability when trekking off-road. For seamless integration, the transfer case is indexed with a supplied indexing ring and a new transmission crossmember, facilitating the use of the factory front driveshaft.

While the lift offers a 4-inch front rise and a 3-inch rear enhancement, certain modifications are necessary for specific vehicle configurations, including DEF tank relocation for Dually or Mega Cab models, and potential exhaust modifications for driveshaft clearance. The kit consists of high-quality components, such as CNC machined aluminum parts and an internal floating piston design for shocks, ensuring longevity and high performance on any journey.

With a focus on quality and capability, the BDS1676FS lift kit is ideal for those looking to increase their truck's off-road prowess while maintaining a factory-like ride. Transform your RAM 3500 into a powerful and versatile vehicle equipped for both everyday use and adventurous escapades.
