BDS SUSPENSION BDS1670FS 4 INCH LIFT KIT W/ 4-LINK RAM 3500 19-23 4WD DIESEL 6 BOLT FOX 2.0 PERFORMANCE SHOCKS

4 Inch Lift Kit w/ 4-Link Ram 3500 19-23 4WD Diesel

• Front Lift Method: 4-Link
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

• Kits come standard with 6-Bolt indexing ring kit.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

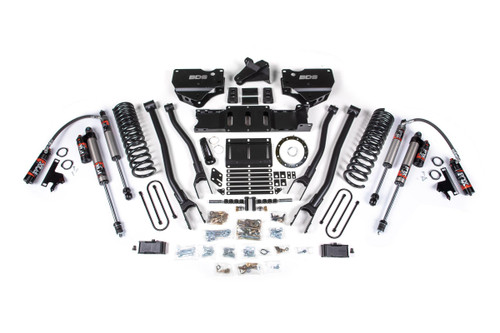

Kit Components:

• Includes one BDS012215, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612116
• Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
• Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
• Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevate your off-road experience with the BDS SUSPENSION BDS1670FS 4 INCH LIFT KIT, expertly designed for the 2019-2023 RAM 3500 4WD Diesel models. This comprehensive lift kit transforms your truck, providing a remarkable 4 inches of front lift and 2 inches in the rear, enhancing its aggressive stance while improving ground clearance for tackling rough terrains.

This kit features a robust 4-link front lift method, ensuring superior stability and handling. The rear lift is accomplished using durable block technology, allowing for improved articulation and performance under load. Included in the package are top-quality FOX 2.0 Performance Shocks, engineered with a 2-inch impact-extruded aluminum body and featuring a race-developed high-flow piston design. The shocks are designed with application-specific valving, maximizing your vehicle’s performance and ride quality, whether you’re on the highway or navigating rugged trails.

Installation of the BDS1670FS lift kit is straightforward, although specific vehicles may require additional components like the BDS122409 DEF Relocation Kit for dually trucks or the BDS122423 Manual Transfer Case Shifter Extension for models equipped with a manual T-case. The kit includes every necessary component, such as custom U-bolts, 4-link boxes, coil springs, and indexing rings.

Constructed for durability and long-lasting performance, this lift kit combines precision engineering with high-grade materials. Experience enhanced capability and a commanding presence on the road with the BDS SUSPENSION BDS1670FS 4 INCH LIFT KIT, a perfect upgrade for serious off-road enthusiasts wanting to unlock their truck’s full potential.
