BDS SUSPENSION BDS1668H 4 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD DIESEL WITHOUT FACTORY REAR OVERLOAD LEAF 8 BOLT NX2 NITRO SHOCKS

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, dual rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength dual rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option

• Without Factory Rear Overload Leaf

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

8 Bolt Indexing Ring

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
• The 8-bolt kit also
• Includes an internal shaft seal extension and new shaft seal.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

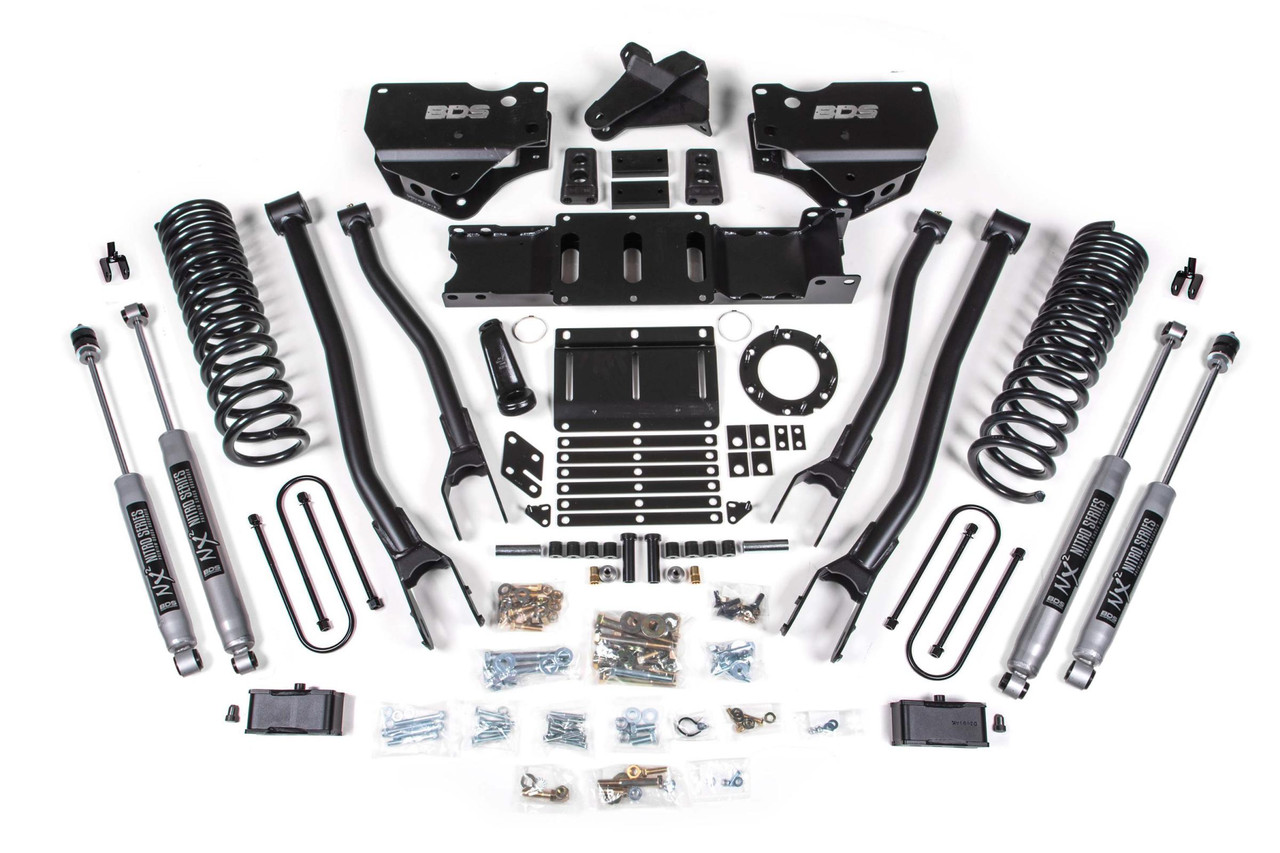

Kit Components:

• Includes one BDS012328, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 711745611511
• Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
• Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122421, 2019-2024 Ram 3500 T-Case Index 18deg - 8 Bolt, UPC Code 658848619542
• Includes two BDS85714, Shock - 26.78 x 15.96 x 2-3/8 - S50/EB2, UPC Code 711745609549
• Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686

Elevate your RAM 3500 diesel truck experience with the BDS SUSPENSION BDS1668H 4-Inch Lift Kit, meticulously engineered to redefine performance, stability, and capability. Designed for 2019-2024 models without a factory rear overload leaf, this lift kit not only enhances your truck's stance but also provides ample clearance for fitting up to 37-inch tires.

The BDS1668H kit includes everything you need for a seamless installation, featuring diesel-specific Pro-Ride coil springs that deliver a smooth ride across varied terrains. The heavy-duty replacement radius arms and forged drop pitman arm ensure optimal steering correction, while the sway bar relocation and precision-tuned NX2 or FOX 2.0 gas shocks further enhance handling and comfort.

A significant aspect of this lift kit is its innovative 4-link conversion. Transitioning from factory stamped steel radius arms to a robust BDS 4-link setup optimizes your truck's suspension geometry, improving strength and handling characteristics. The bolt-on high-strength 1/4-inch steel brackets facilitate the mounting of heavy-duty upper and lower control arms, ensuring accurate axle positioning throughout wheel travel.

Installation is a breeze, thanks to the included indexing ring and a new transmission crossmember, which accommodate the factory front driveshaft, allowing you to maintain driveline angles even at increased heights. Performance is further bolstered with BDS NX2 or FOX 2.0 shocks that feature nitrogen charge and a twin-tube design for exceptional off-road capabilities.

Designed for strength, stability, and superior ride quality, the BDS SUSPENSION BDS1668H 4-Inch Lift Kit transforms your RAM 3500 into a powerhouse ready to tackle any adventure. Drive with confidence, knowing you’re equipped with the best in suspension technology.
