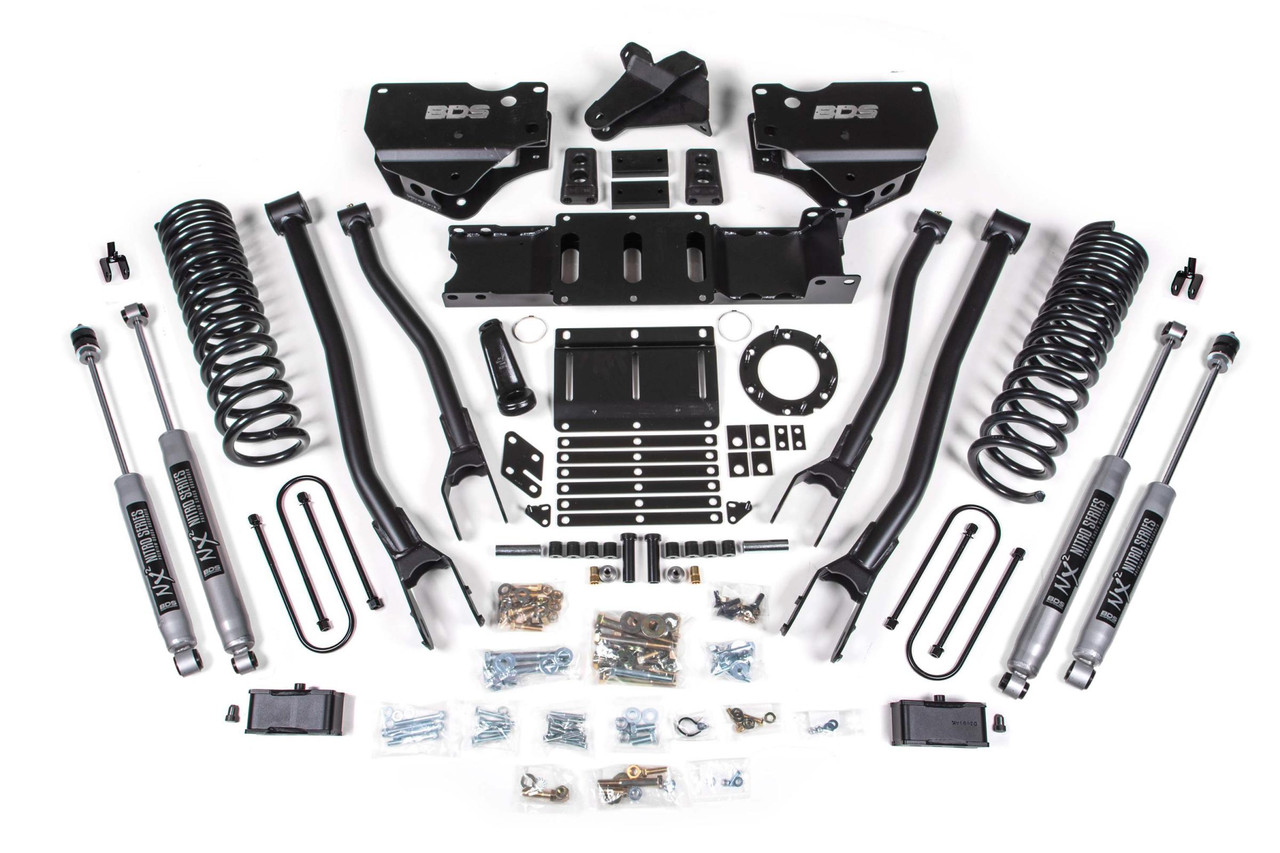

BDS SUSPENSION BDS1666FS 4 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD DIESEL WITHOUT FACTORY REAR OVERLOAD LEAF 6 BOLT FOX 2.0 PERFORMANCE SHOCKS

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, dual rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength dual rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option

• Without Factory Rear Overload Leaf

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

Indexing Ring Option 6 Bolt Indexing Ring

• Kits come standard with 6-Bolt indexing ring kit.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components:

• Includes one BDS012328, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 711745611511
• Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
• Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
• Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevating your RAM 3500 to new heights, the BDS SUSPENSION BDS1666FS 4-Inch Lift Kit with 4-Link conversion is meticulously crafted for diesel-powered trucks from 2019 to 2024, excluding those with factory rear overload leafs. This comprehensive lift kit is designed to enhance your vehicle’s stance, performance, and overall capability, allowing you to fit larger 37-inch tires effortlessly.

At the forefront of this kit are diesel-specific Pro-Ride coil springs, engineered to provide a balanced and smooth ride across diverse terrains. The heavy-duty replacement radius arms and forged drop pitman arm ensure optimal steering geometry, enhancing both safety and handling on and off the road. With additional components like a sway bar relocation bracket, brake line brackets, and precision-tuned NX2 or FOX 2.0 performance shocks, every element works harmoniously to improve your driving experience.

Additionally, the 4-Link conversion replaces factory components with high-strength, 1/4-inch steel brackets for increased stability and better handling characteristics. This upgrade not only improves axle positioning but also limits caster changes throughout the wheel travel, making your ride smoother and more controlled.

Installation is straightforward, thanks to the inclusion of an indexing ring and new transmission crossmember, necessary for adjusting the transfer case to maintain the use of the factory front driveshaft. The rear lift option utilizes a durable fabricated lift block and longer U-bolts to achieve a precise lift, paired with performance shocks that further enhance handling.

Built for tough terrains and engineered for performance, the BDS SUSPENSION BDS1666FS Lift Kit is the perfect upgrade for enthusiasts looking to maximize their truck's capabilities without compromising ride quality or safety. Experience unparalleled performance and aesthetics with this robust lift kit designed for serious off-road adventures.
