BDS SUSPENSION BDS1665FSL 2 INCH LIFT KIT FOX 2.0 COIL-OVER RAM 1500 13-18 4WD

Level out your 2013-2018 RAM 1500 4WD truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Coil-Over Shocks

These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut. They feature a 2.0 inch extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (Internal Floating Piston) to eliminate oil aeration, FOX's proprietary internals, 5/8 inch hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 0 inch

1. The stock wheel/Tire can be reinstalled. Stock wheel with wider 12.50 Tires cannot due to clearance issue to UCA at full steering lock.
2. Vehicles equipped with Offroad or Rebel Package will not achieve the full 2 inch of lift, net ride height change will be around 1 inchabove stock.
3. Will not fit adjustable air suspension equipped models.

• FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation

Tire Size: 33 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 53-4 hrs

1. The stock wheel/Tire can be reinstalled. Stock wheel with wider 12.50 Tires cannot due to clearance issue to UCA at full steering lock.
2. Vehicles equipped with Offroad or Rebel Package will not achieve the full 2 inch of lift, net ride height change will be around 1 inchabove stock.
3. Will not fit adjustable air suspension equipped models.

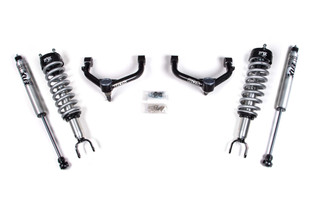

Kit Components:

• Includes one BDS122253, 2006-2023 Ram 1500 UCA Kit - 2-3 inch Lift Height, UPC Code 658848619368
• Includes two FOX98224712, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
• Includes two FOX98302050, 06-ON Dodge 1500 4WD Front Coilover, PS, 2.0, Internal Floating Piston, 5.4 inch 0-2 inch Lift, UPC Code 714686857659

Elevate your driving experience with the BDS Suspension BDS1665FSL 2-Inch Lift Kit, designed specifically for 2013-2018 RAM 1500 4WD trucks. This expertly engineered lift kit not only enhances the overall stance of your vehicle but also significantly improves ride quality and off-road capability. Equipped with FOX 2.0 coil-over shocks, this kit provides the perfect blend of comfort and performance, allowing for smoother handling both on and off the beaten path.

Crafted with precision, the BDS1665FSL includes everything needed for seamless installation, providing clearance for tires up to 33 inches in size. The front section boasts FOX 2.0 Performance Series coil-over shocks, engineered to replace your factory strut easily, delivering outstanding damper performance. Constructed with a robust 6061 T6 aluminum body, these shocks ensure superior heat dissipation and long-lasting durability, equipped with an Internal Floating Piston to minimize oil aeration.

In addition, heavy-duty tubular upper control arms enhance strength and increase suspension travel, making them ideal for leveled or lifted setups. Featuring a durable black powder coat finish and greaseable ball joints, these control arms ensure a maintenance-free operation while allowing for necessary adjustments in camber and down travel.

This lift kit is designed with efficiency in mind—boasting a straightforward, bolt-on installation process. Note that those vehicles equipped with the Offroad or Rebel Package will experience a slight height change at approximately one inch above stock. The BDS1665FSL Kit is perfect for those looking to elevate their RAM 1500's performance while maintaining an impressive visual appeal. Quality and functionality come together for an experience that stands the test of time.
