BDS SUSPENSION BDS1665FDSC 2 INCH LIFT KIT FOX 2.5 COIL-OVER RAM 1500 13-18 4WD FOX 2.5 PERFORMANCE SHOCKS CLASSIC BODY STYLE

Take your 2013-2018 RAM 1500 4WD truck to the next level and improve the ride with this 2-inch lift kit featuring FOX 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

Dual Speed Compression Adjust Adjustment

FOX 2.5 coil-overs are available with optional Dual Speed Compression Adjust (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.

Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 0 inch

1. The stock wheel/Tire can be reinstalled. Stock wheel with wider 12.50 Tires cannot due to clearance issue to UCA at full steering lock.
2. Vehicles equipped with Offroad or Rebel Package will not achieve the full 2 inch of lift, net ride height change will be around 1 inch above stock.
3. Will not fit adjustable air suspension equipped models.

• FOX 2.5 Factory series coil-overs offer improved damper performance over stock
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation

Rear Shock Option FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Tire Size: 33 x 12.5 Wheel Diameter: 20 x 9 Back Spacing:5

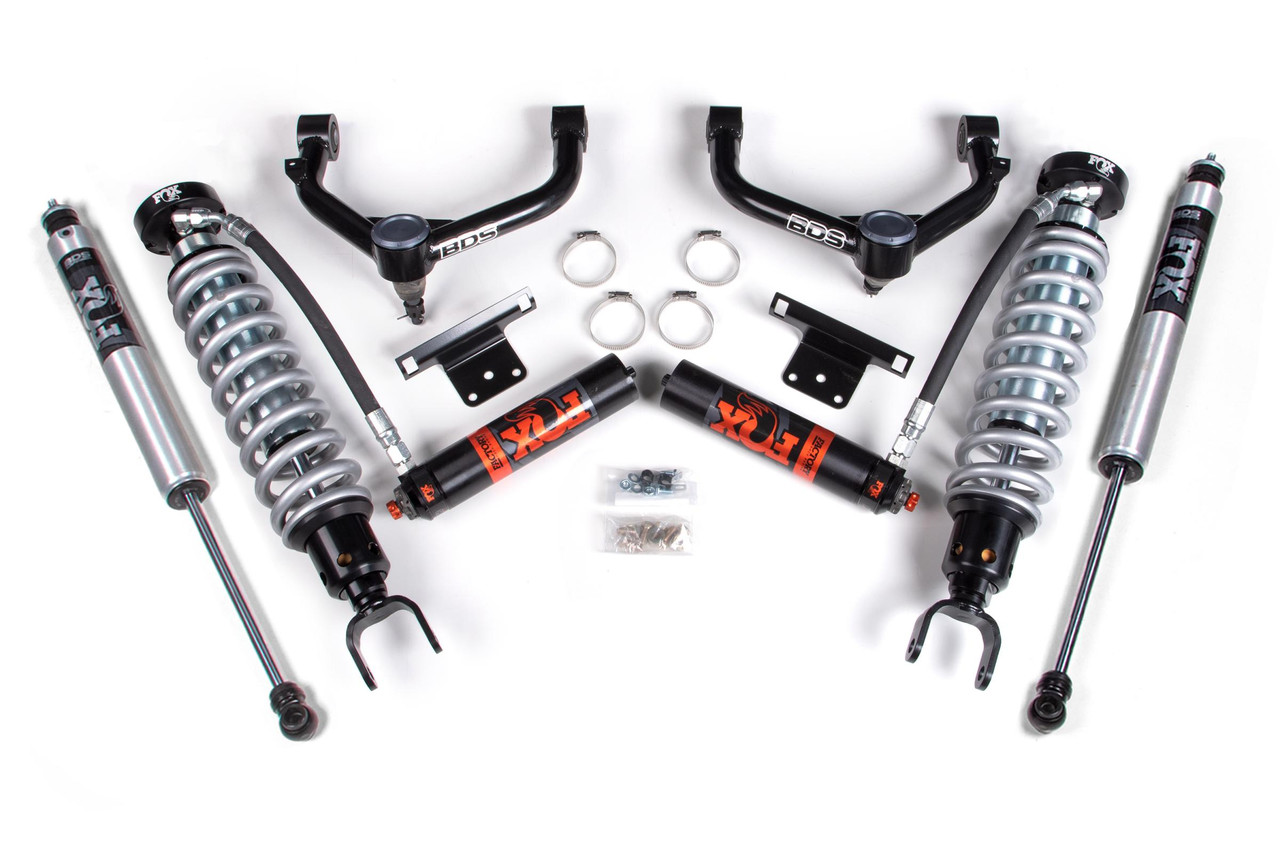

Kit Components:

• Includes one BDS122253, 2006-2023 Ram 1500 UCA Kit - 2-3 inch Lift Height, UPC Code 658848619368
• Includes one FOX88306080, NF: KIT: 06-ON Dodge 1500 4wd Front Coilover, 2.5 Series, R/R, 5.7 inch, 0-2 inch Lift, Dual Speed Compression Adjust
• Includes two FOX98224712, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1

Elevate your driving experience with the BDS Suspension BDS1665FDSC 2-inch Lift Kit, specifically designed for 2013-2018 RAM 1500 4WD trucks. This exceptional lift kit enhances your vehicle's stance, performance, and off-road capabilities, allowing for the installation of larger tires up to 33 inches.

The front of the kit features the high-performance FOX 2.5 Factory Series remote reservoir coil-over shocks, paired with robust tubular upper control arms. This combination not only enhances strength but also significantly improves ride quality. The advanced shocks are engineered for optimal on-road comfort and off-road durability, ensuring you can tackle any terrain with confidence. The remote reservoir design allows for improved heat dissipation, keeping your performance at its peak even during challenging conditions.

In the rear, the kit includes FOX 2.0 Performance shocks that provide a seamless ride, allowing you to maneuver effortlessly over bumps and uneven surfaces. The shocks come with application-specific valving and race-developed piston designs, optimizing handling and responsiveness for an extraordinary driving experience.

Control and adjustability are paramount, thanks to the optional Dual Speed Compression Adjust feature of the FOX 2.5 coil-overs. This allows you to fine-tune high-speed and low-speed compression damping, providing precise handling capabilities whether you’re on the highway or off the beaten path.

Constructed with durability in mind, the heavy-duty upper control arms feature 1.5-inch OD tubing and maintenance-free bushings for smooth operation. Finished with a robust black powder coat, these components are built to withstand the rigors of rigorous outdoor adventures.

With 100% bolt-on installation and a Factory Protection Plus drivetrain warranty, the BDS1665FDSC lift kit is the perfect upgrade for any RAM 1500 owner looking to enhance their vehicle's performance and style.
