BDS SUSPENSION BDS1660FS 4 INCH LIFT KIT W/ RADIUS ARM RAM 2500 19-24 4WD DIESEL FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1660FS
MPN:
BDS1660FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1660FS 4 INCH LIFT KIT W/ RADIUS ARM RAM 2500 19-24 4WD DIESEL FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1660FS 4 INCH LIFT KIT W/ RADIUS ARM RAM 2500 19-24 4WD DIESEL FOX 2.0 PERFORMANCE SHOCKS
$2,914.55

Description

Take your RAM 2500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Coil Springs
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 2.5 inch

1. Will NOT fit air-ride equipped models 2. Diesel models only

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

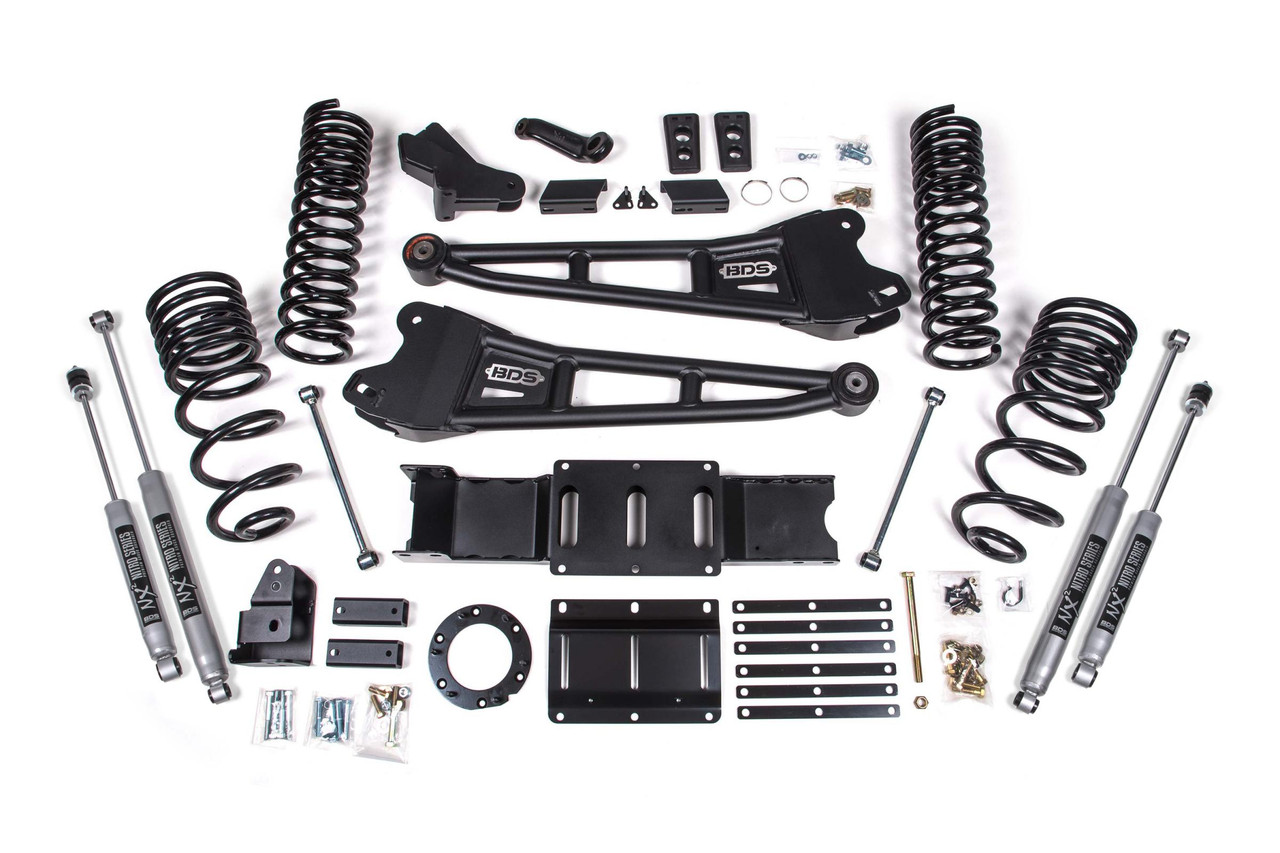

Kit Components:

  • Includes one BDS012269, 2019-2024 Ram 2500 2.5 inch Rear Coil Box Kit, UPC Code 658848612185
  • Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
  • Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
  • Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
  • Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
  • Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
  • Includes two FOX98224753, Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1

Elevate your RAM 2500 diesel truck's performance and aesthetics with the BDS Suspension BDS1660FS 4-Inch Lift Kit with Radius Arm. This expertly engineered lift kit is crafted for exceptional durability and improved off-road capabilities, providing the ideal solution for owners who aspire to enhance their truck's stance and functionality.

Designed specifically for 2019-2024 RAM 2500 4WD diesel models, this kit allows you to equip your truck with larger 35-inch tires while maintaining optimal performance. The kit features heavy-duty diesel-specific Pro-Ride coil springs that ensure a smooth, reliable ride over various terrains. Crafted from high tensile strength steel, these coil springs provide the perfect lift height without compromising stability.

Experience superior handling with the included high-strength tubular radius arms, which replace the factory arms for enhanced strength, caster control, and noise-free operation. The kit’s forged drop pitman arm and heavy-duty track bar relocation brackets optimize steering geometry, ensuring precise handling even with the elevated stance. Other essential components, including brake line brackets and sway bar relocation links, contribute to a complete installation that maximizes performance.

The BDS1660FS kit is equipped with advanced FOX 2.0 performance shocks, featuring a race-developed design that improves ride quality and off-road performance with application-specific valving. Additionally, for proper driveline angles, the kit includes a heavy-duty transmission crossmember and t-case indexing ring, ensuring compatibility with the factory front driveshaft.

Transform your RAM 2500 into a robust, stylish machine ready for any adventure. Elevate your off-road experience and navigate with confidence, knowing that you have a lift kit that’s not just built for looks, but for performance and reliability.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
