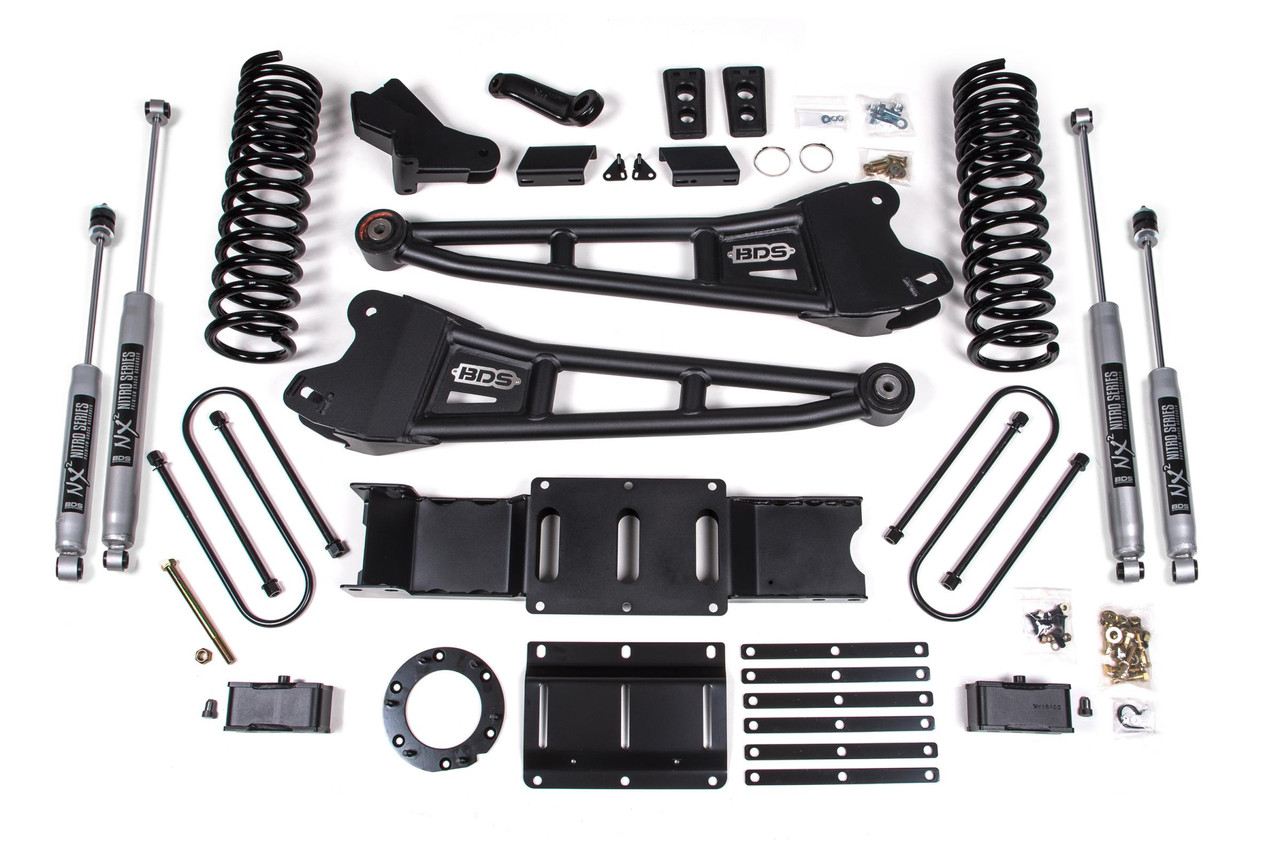

BDS SUSPENSION BDS1659FS 4 INCH LIFT KIT W/ RADIUS ARM 3 INCH REAR BLOCK RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 8 BOLT FOX 2.0 PERFORMANCE SHOCKS

Take your RAM 3500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• 3 inch Rear block w/o overload

Rear Lift Option

• With Factory Rear Overload Leaf

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

8 Bolt Indexing Ring

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
• The 8-bolt kit also
• Includes an internal shaft seal extension and new shaft seal.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components:

• Includes one BDS012329, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612291
• Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes one BDS122625, 2019-2024 Ram 3500 T-Case Index 15deg - 8 Bolt, UPC Code 658848619771
• Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevate your RAM 3500 to impressive new heights with the BDS1659FS 4-Inch Lift Kit, meticulously engineered for 2019-2024 models powered by diesel. This lift kit is a perfect blend of improved performance, enhanced styling, and unmatched capability, allowing you to tackle any terrain with confidence. The kit is designed to accommodate up to 35-inch tires, making it ideal for those looking to upgrade their off-road experience.

At the heart of this lift kit lies a set of heavy-duty Pro-Ride coil springs specifically crafted for diesel engines, alongside robust replacement radius arms. These high-strength tubular radius arms replace the factory components, providing superior strength, handling, and caster control while ensuring a quieter and more responsive ride. The inclusion of a forged drop pitman arm and track bar bracket allows for precise steering correction, maintaining optimal geometry even with the added height.

Installation is seamless, with essential components such as an indexing ring, new transmission crossmember, and sway bar relocation features, all aimed at enhancing driveline angles and functionality. The included NX2 or FOX 2.0 nitrogen-charged shocks contribute to a smooth and controlled ride, whether you're navigating rugged trails or cruising on the highway.

This lift kit is not just about aesthetics; it’s also about functionality and performance. With a rear lift of 3 inches utilizing a strong fabricated lift block and longer u-bolts, your vehicle’s capabilities are maximized. Experience improved off-road performance and a sleek, commanding stance with the BDS1659FS Lift Kit – taking your RAM 3500 to levels you never thought possible. Perfect for those who demand both style and strength, this kit transforms your truck into a true formidable beast on and off the road.
