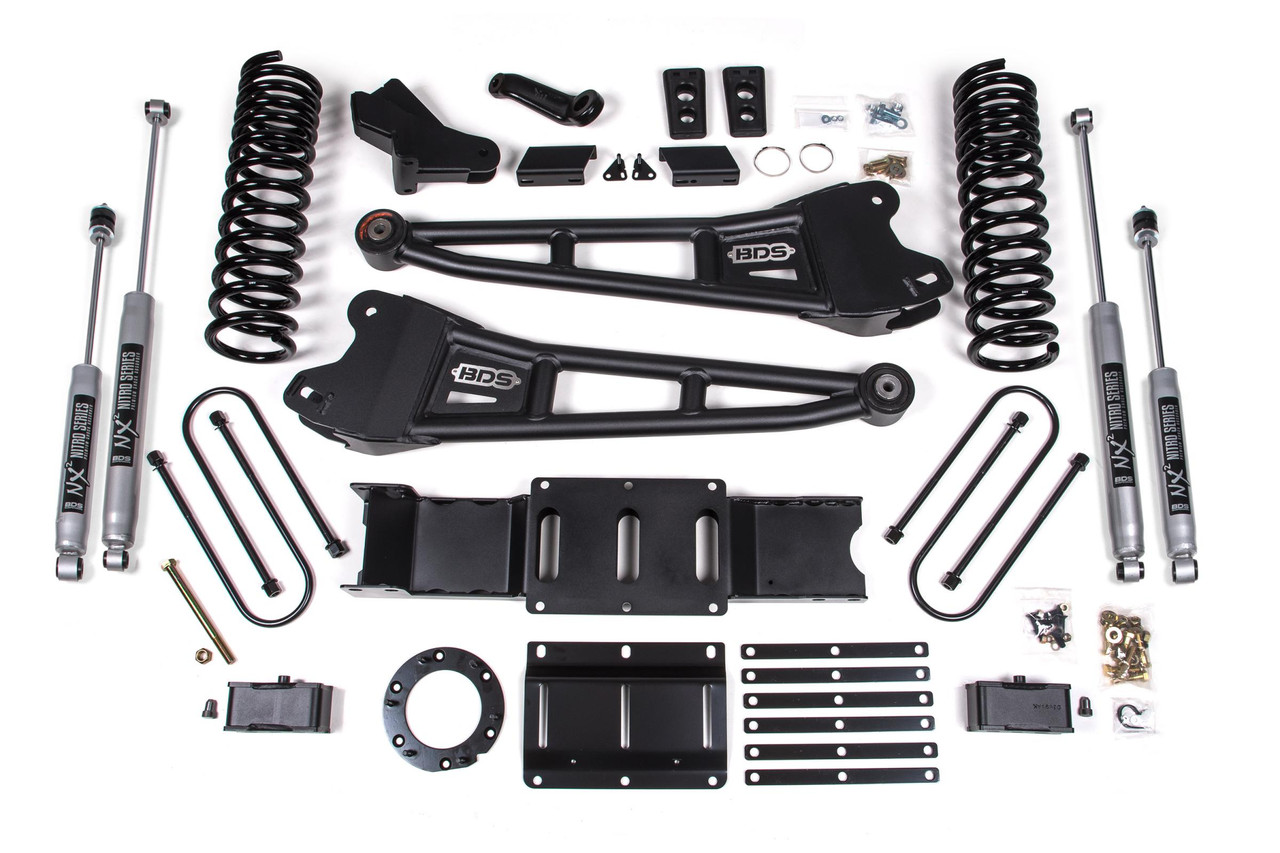

BDS SUSPENSION BDS1658H 4 INCH LIFT KIT W/ RADIUS ARM 3 INCH REAR BLOCK RAM 3500 19-24 4WD DIESEL WITHOUT FACTORY REAR OVERLOAD LEAT 8 BOLT NX2 NITRO SHOCKS

Take your RAM 3500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• 3 inch Rear block w/o overload

Rear Lift Option

• Without Factory Rear Overload Leaf

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

8 Bolt Indexing Ring

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
• The 8-bolt kit also
• Includes an internal shaft seal extension and new shaft seal.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes one BDS012328, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 711745611511
• Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes one BDS122625, 2019-2024 Ram 3500 T-Case Index 15deg - 8 Bolt, UPC Code 658848619771
• Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
• Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686

Enhance your RAM 3500 with the BDS Suspension BDS1658H 4 Inch Lift Kit, meticulously engineered to elevate your off-road capabilities and overall performance. This comprehensive kit is designed specifically for diesel-equipped models from 2019 to 2024, excluding those with factory rear overload leaf springs, ensuring a perfect fit.

The centerpiece of this lift kit features exceptionally engineered radius arms made of high-strength tubular steel, providing improved strength and handling while maintaining caster control. Paired with progressive rate Pro-Ride coil springs, drivers can expect a smooth and predictable ride, effectively adapting to various terrains.

With a front lift of 4 inches and a rear lift of 3 inches, this kit allows you to accommodate larger tires, facilitating clearance for up to 35-inch or even 37 x 12.5 tires. The included forged drop pitman arm and track bar relocation bracket optimize steering geometry and minimize steering angles, ensuring precision handling and stability even in the ruggedest conditions.

The rear component utilizes a robust fabricated lift block and extended u-bolts to enhance stability and performance. The kit also provides BDS NX2 nitrogen-charged shocks or FOX 2.0 performance shocks, each designed to elevate your riding experience through advanced valving and superior damping capabilities.

Additionally, necessary components like the transmission crossmember and indexing ring are included to maintain proper driveline angles, allowing for the seamless use of factory driveshafts. Whether you're tackling muddy trails or cruising on the highway, this lift kit transforms your RAM 3500 into a formidable machine, providing the ultimate blend of form and function. Experience the thrill of off-roading like never before with the BDS1658H lift kit.
