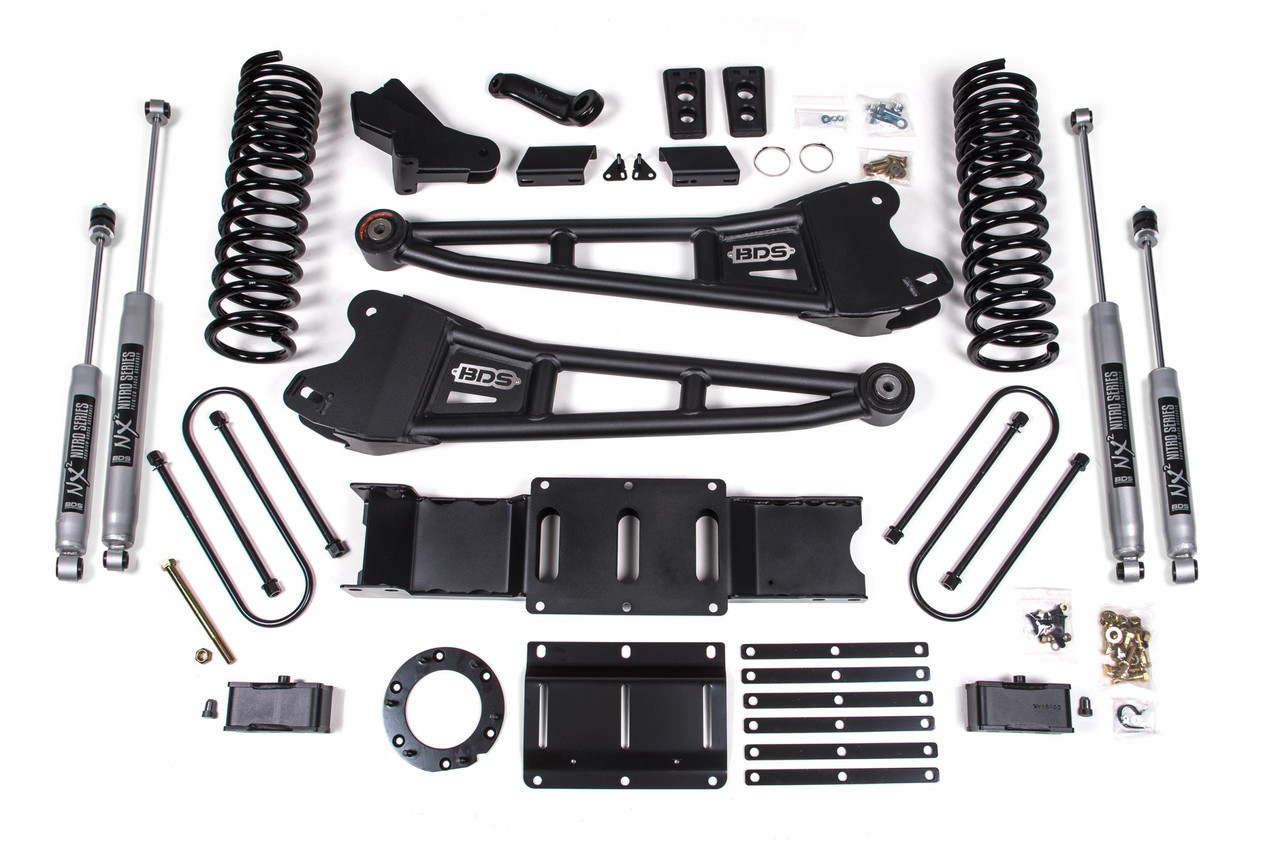

BDS SUSPENSION BDS1657FPE 4 INCH LIFT KIT W/ RADIUS ARM 3 INCH REAR BLOCK RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 6 BOLT FOX 2.5 PERFORMANCE ELITE SHOCKS

Take your RAM 3500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• 3 inch Rear block w/o overload

Rear Lift Option

• With Factory Rear Overload Leaf

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

Indexing Ring Option 6 Bolt Indexing Ring

• Kits come standard with 6-Bolt indexing ring kit.

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Kit Components:

• Includes one BDS012329, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612291
• Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
• Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• Includes one FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchРЎСљ Lift, Dual Speed Compression Adjust

Elevate your RAM 3500 diesel truck's performance and appearance with the BDS Suspension BDS1657FPE 4 Inch Lift Kit. Engineered for 2019-2024 models equipped with the factory rear overload leaf, this comprehensive kit offers a remarkable 4-inch front lift and a 3-inch rear lift, perfect for enhancing your truck’s capabilities while accommodating up to 35-inch tires.

The lift kit features diesel-specific Pro-Ride coil springs designed to provide an impressive balance of ride comfort and off-road prowess, ensuring a smooth journey across varying terrains. The heavy-duty tubular radius arms replace the factory components, offering superior strength and caster adjustments that enhance handling and stability without compromising performance.

As part of the package, you’ll receive a forged drop pitman arm and a heavy-duty track bar drop bracket, addressing steering geometry to guarantee optimal handling even when navigating bumpy trails. Enhanced with advanced sway bar corrections and brake line brackets, this system assures your truck maintains its factory driving quality while sitting higher.

The inclusion of BDS NX2 gas or FOX 2.5 Performance Elite shocks further elevates the kit’s performance. Engineered with a 2.5-inch extruded aluminum body and massive 7/8-inch hard chrome plated shaft, these shocks are capable of adapting to varying loads and terrains, ensuring an unparalleled driving experience.

Installation is straightforward, with essential components such as an indexing ring and new transmission crossmember provided to correct driveline angles for seamless integration with factory driveshafts. Built to withstand the rigors of off-road adventures and designed for easy adjustment, this lift kit transforms your RAM 3500 into the ultimate off-road powerhouse. Enjoy a 1-year manufacturer's warranty for peace of mind and take your truck’s capabilities to new heights.
