BDS SUSPENSION BDS1656FS 4 INCH LIFT KIT W/ RADIUS ARM 3 INCH REAR BLOCK RAM 3500 19-24 4WD DIESEL WITHOUT FACTORY REAR OVERLOAD LEAF 6 BOLT FOX 2.0 PERFORMANCE SHOCKS

Take your RAM 3500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• 3 inch Rear block w/o overload

Rear Lift Option

• Without Factory Rear Overload Leaf

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

Indexing Ring Option 6 Bolt Indexing Ring

• Kits come standard with 6-Bolt indexing ring kit.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

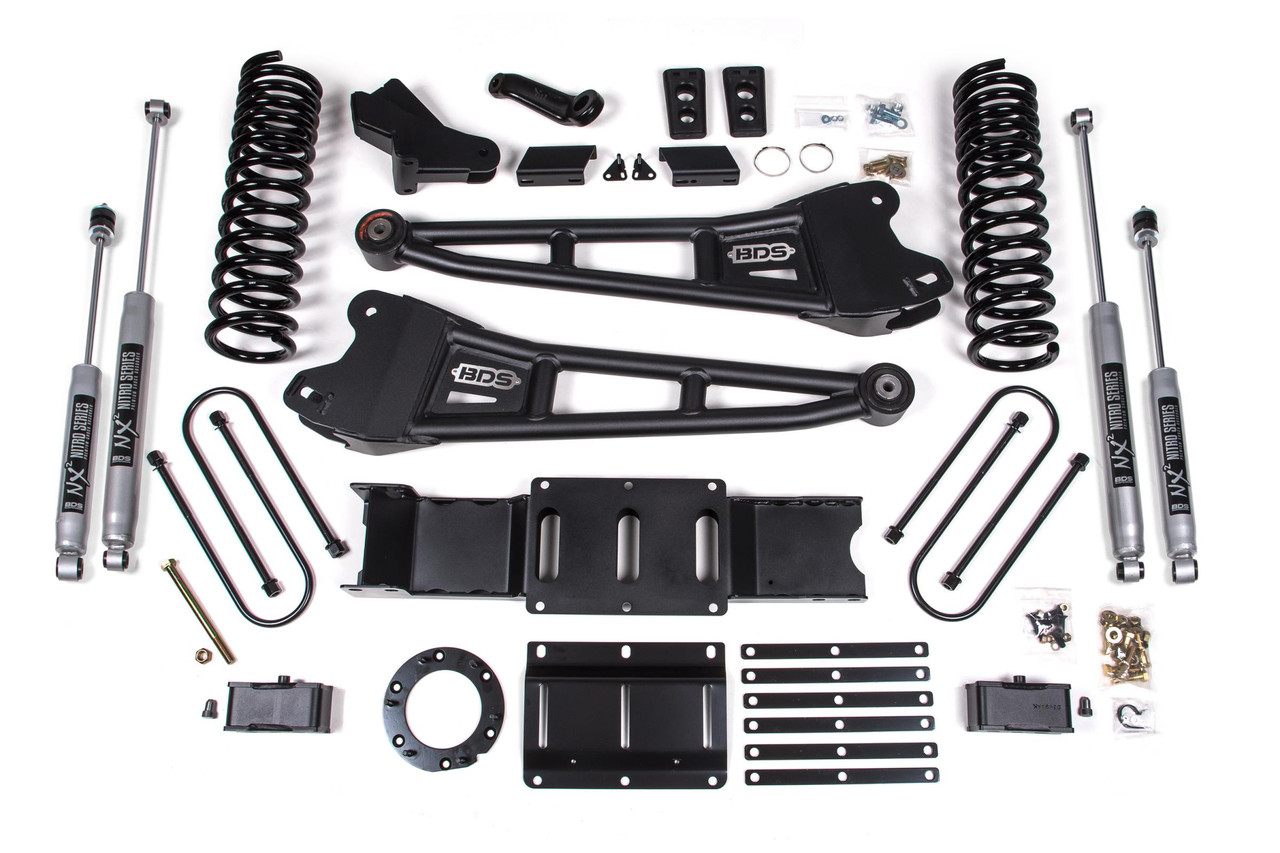

Kit Components:

• Includes one BDS012328, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 711745611511
• Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
• Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevate your driving experience with the BDS Suspension BDS1656FS 4 Inch Lift Kit, specifically engineered for your RAM 3500 diesel truck from 2019 to 2024. This comprehensive lift kit is designed to enhance your vehicle's stance, performance, and off-road capability while providing clearance for up to 35-inch tires.

The kit features heavy-duty replacement radius arms crafted from high-strength tubular material, ensuring superior strength and handling. With the addition of diesel-specific Pro-Ride coil springs, experience a smooth, progressive ride across varied terrains. A forged drop pitman arm and track bar bracket help maintain optimal steering geometry and performance, crucial for precise handling after the lift.

Included in this all-in-one package are NX2 or FOX 2.0 nitrogen-charged performance shocks, designed to improve ride quality and off-road handling. The front lift method utilizes reliable coil springs, achieving a 4-inch lift, while the rear accommodates a 3-inch lift using durable fabricated blocks and longer u-bolts. The kit also includes essential components such as a high-strength transmission crossmember and t-case indexing ring, allowing for seamless integration with the factory front driveshaft.

Whether navigating through rugged landscapes or cruising on highways, the BDS1656FS lift kit provides unmatched durability and performance. Optimization features like front sway bar relocation and steering correction ensure that your truck remains agile and responsive.

Upgrade to the BDS Suspension BDS1656FS Lift Kit and transform your RAM 3500 into a powerful, lifted beast ready for any adventure. Get ready to take on the toughest terrains with confidence and style!
