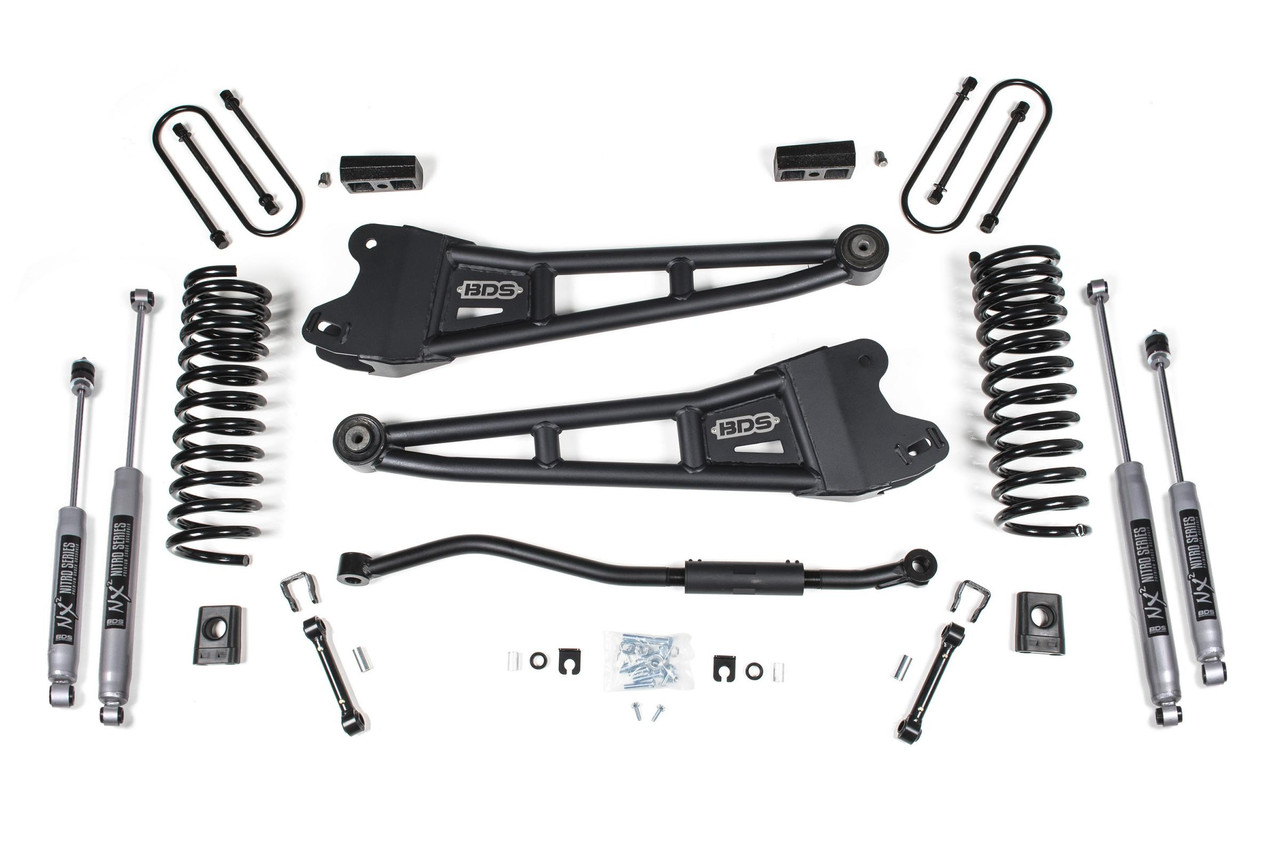

BDS SUSPENSION BDS1654H 3 INCH LIFT KIT W/ RADIUS ARM RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF NX2 NITRO SHOCKS

Level out and take your RAM 3500 diesel powered truck with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar links, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to re-center the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes with bushings and is ready to bolt into the factory mounting points.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2 inch

1. Will NOT fit rear air-ride equipped models.

2. Diesel models only.

3. If you experience front driveline vibration, a T-case indexing ring is available for 6-bolt and 8-bolt equipped models. Be sure to select the correct one for your application.

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength dual rate coil springs for a great ride on any terrain
• Front adjustable track bar allows you to re-center axle
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option - With Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes one BDS012216, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612123
• Includes one BDS012312, 2014-2024 Ram 2500 / 2013-2024 Ram 3500 3 inch Front Box Kit, UPC Code 711745611436
• Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes two BDS85713, Shock- 23.5 x 14.2 x 2-3/8 - S50/EB2, UPC Code 711745609532
• Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686

Enhance your RAM 3500’s performance and presence with the BDS SUSPENSION BDS1654H 3-Inch Lift Kit, designed specifically for 2019-2024 4WD diesel models equipped with factory rear overload leaf springs. This robust lift kit elevates your truck by three inches in the front, ensuring a perfect stance while providing ample clearance for aggressive 35-inch tires.

The kit features specially engineered diesel-specific Pro-Ride coil springs, which deliver a balanced, smooth ride across diverse terrains, complemented by heavy-duty replacement radius arms. Crafted from high-strength tubular steel, these radius arms replace factory components, enhancing strength, handling, and caster control. Additionally, the heavy-duty adjustable track bar allows precise re-centering of the front axle to maintain optimal steering geometry, further elevating handling capabilities.

Equipped with precision-tuned NX2 Nitro or FOX 2.0 shocks, the suspension system promises exceptional off-road performance and comfort. The rear lift is supported by a fabricated lift block and longer u-bolts, ensuring reliability and stability during every journey.

This kit also includes essential components such as sway bar links and brake line brackets, facilitating a comprehensive lift solution tailored to enhance your vehicle's capability. For added peace of mind, the NX2 shocks feature a nitrogen-charged twin-tube design with self-lubricating seals and a powder-coated finish for durability.

Ideal for off-road enthusiasts and truck lovers alike, the BDS1654H lift kit not only boosts aesthetics but also transforms your RAM 3500 into a formidable powerhouse, ready for any challenge. It’s a must-have upgrade for those seeking to elevate both form and function in their truck experience.
