BDS SUSPENSION

BDS SUSPENSION BDS1643H 4 INCH LIFT KIT RAM 3500 W/ REAR AIR RIDE 13-18 4WD DIESEL NX2 NITRO SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1643H
MPN:
BDS1643H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1643H 4 INCH LIFT KIT RAM 3500 W/ REAR AIR RIDE 13-18 4WD DIESEL NX2 NITRO SHOCKS
  • BDS SUSPENSION BDS1643H 4 INCH LIFT KIT RAM 3500 W/ REAR AIR RIDE 13-18 4WD DIESEL NX2 NITRO SHOCKS
$1,481.65

Description

Improve the ride and style of your 2013-2018 RAM 3500 diesel powered truck equipped with factory rear air ride by installing this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacer, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 3 inch
  1. The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.
  2. Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
  • Heavy duty radius arm drop brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

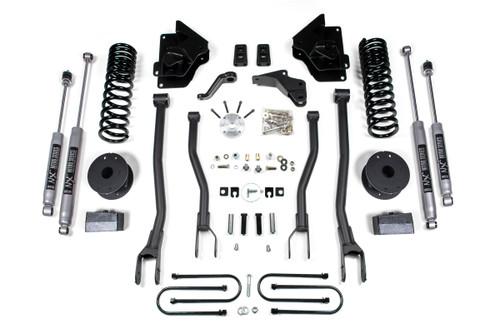

Kit Components:

  • Includes one BDS012318, Ram 3500 Auto Level Air Suspension 3 inch Rear, UPC Code 711745611467
  • Includes one BDS012401, 2013-18 Ram 2500/300 4 inch Front Box Kit, UPC Code 658848612321
  • Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
  • Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
  • Includes two BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1, UPC Code 711745609679

Enhance both the performance and aesthetic of your 2013-2018 RAM 3500 diesel truck with the BDS1643H 4-Inch Lift Kit, specifically designed for models equipped with factory rear air ride. This comprehensive lift kit not only raises your truck by 4 inches, allowing for impressive clearance for up to 35-inch tires, but it also improves capabilities across various terrains, making your driving experience smoother and more enjoyable.

The lift kit features advanced diesel-specific Pro-Ride coil springs that ensure a predictable and smooth ride. Steering precision is further optimized with a forged drop pitman arm and a heavy-duty track bar drop bracket, which maintain proper alignment and improve handling during off-road adventures.

Installation is straightforward with included components, such as radius arm drop brackets and bump stops, ensuring that suspension geometry remains intact. The rear lift is achieved through a high-strength fabricated lift block paired with an airbag spacer for enhanced stability, complemented by NX2 Nitro or FOX 2.0 Performance shocks engineered to deliver superior off-road performance.

The FOX 2.0 shocks feature a robust 2-inch impact extruded aluminum body and a race-developed high-flow piston design that maximizes both ride quality and durability for those rugged trails. With clear anodized finishes and application-specific valving, these shocks are tailor-made for your RAM 3500, ensuring they stand up to any demands.

Ride in style and confidence as this lift kit transforms your truck into a commanding presence on the road. Elevate your RAM 3500's capabilities and enhance its look with BDS Suspension, where quality meets innovation for the ultimate off-road experience.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
