BDS SUSPENSION

BDS SUSPENSION BDS1631H 4 INCH LIFT KIT RAM 2500 W/ REAR AIR RIDE 14-18 4WD DIESEL NX2 NITRO SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1631H
MPN:
BDS1631H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1631H 4 INCH LIFT KIT RAM 2500 W/ REAR AIR RIDE 14-18 4WD DIESEL NX2 NITRO SHOCKS
  • BDS SUSPENSION BDS1631H 4 INCH LIFT KIT RAM 2500 W/ REAR AIR RIDE 14-18 4WD DIESEL NX2 NITRO SHOCKS
$1,492.65

Description

Improve the ride and style of your 2014-2018 RAM 2500 diesel truck, equipped with factory rear air ride, with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes heavy duty air bag spacers, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks. BDS also supplies new air ride leveling sensor brackets to re-position the ride height sensors allowing it to perform just like it does at factory ride height and maintain full air bag range of motion.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Spacer
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 3.5 inch
  1. For OE Air Ride systems only
  • Heavy duty radius arm drop brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

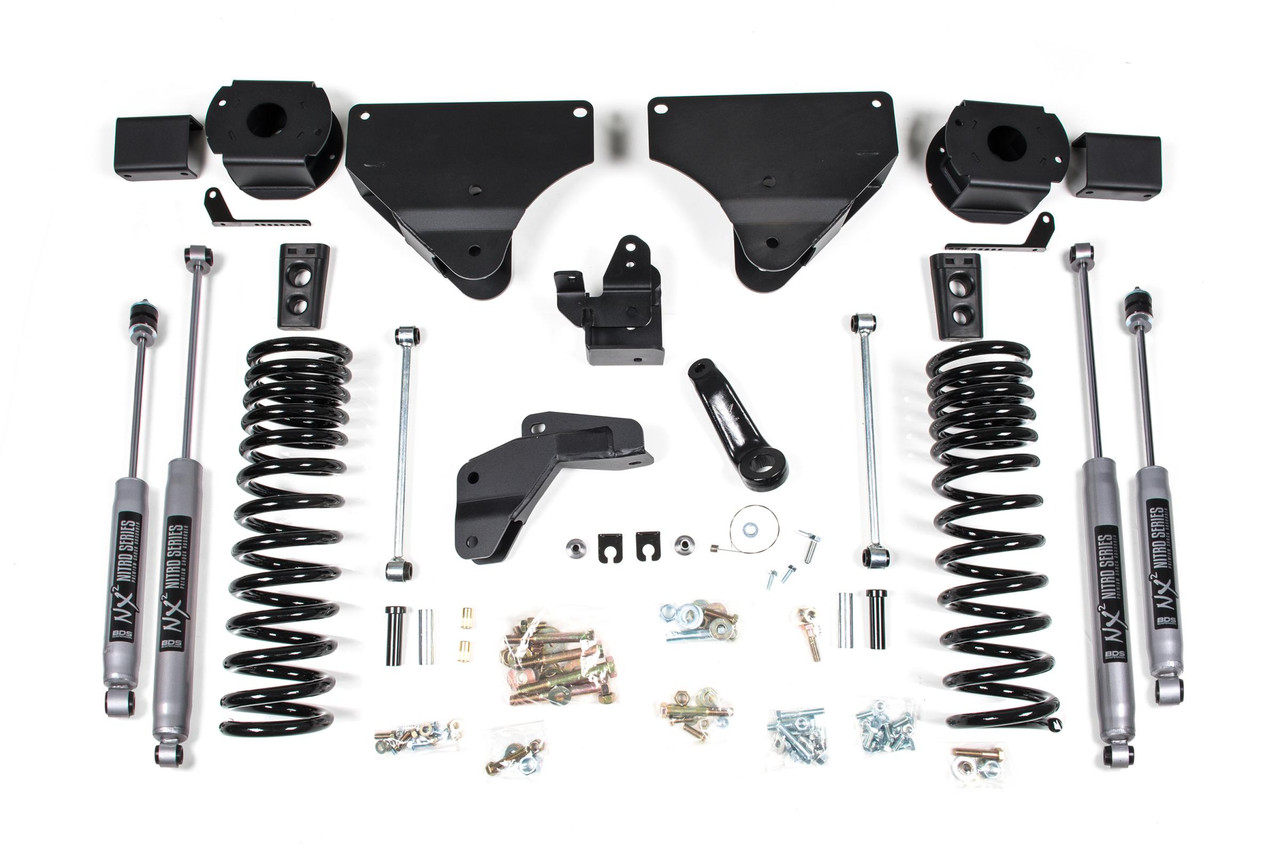

Kit Components:

  • Includes one BDS012359, 14-18 Ram 2500 3.5 inch Rear AirRide Box Kit, UPC Code 658848612314
  • Includes one BDS012401, 2013-18 Ram 2500/300 4 inch Front Box Kit, UPC Code 658848612321
  • Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
  • Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
  • Includes two BDS85764, Shock- 24.80 x 14.80 x 2 - Special/EB1, UPC Code 711745609730

Transform your 2014-2018 RAM 2500 diesel truck with the BDS1631H 4-inch Lift Kit, designed for vehicles equipped with factory rear air ride. This premium lift kit enhances both the aesthetics and the functionality of your truck, offering improved stance and performance alongside the capability to accommodate tires up to 35 inches in size.

At the forefront of this lift kit are the robust diesel-specific Pro-Ride coil springs that ensure a smooth and predictable ride across varied terrains. Constructed from high-tensile strength steel, these coil springs promise maximum reliability, ensuring they won’t succumb to premature coil bind. Additionally, the kit includes vital components such as radius arms drop brackets, a forged drop pitman arm, and a track bar bracket that work harmoniously to maintain optimal steering correction and axle positioning.

In the rear, heavy-duty air bag spacers and a track bar relocation bracket help to retain proper alignment and handling. Coupled with bump stop extensions, sway bar links, and a matching set of performance shocks—either the NX2 Nitro or FOX 2.0—this lift kit delivers not just height, but enhanced ride quality, whether you're on-road or off.

The innovative design of the BDS1631H kit safeguards the functionality of your factory air ride system by including new leveling sensor brackets. This ensures that your truck maintains its factory dynamics while enjoying improved ride height and travel.

Pioneering performance is guaranteed with features like the 10-stage velocity-sensitive valving in the NX2 Nitro shocks, ensuring you’re equipped for any adventure. Elevate your driving experience and tackle any terrain with confidence and style with the BDS SUSPENSION BDS1631H Lift Kit.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
