BDS SUSPENSION BDS1619FS 5.5 INCH LIFT KIT RAM 3500 13-18 4WD GAS LEAF SPRINGS FOX 2.0 PERFORMANCE SHOCKS

Improve the ride and style of your 2013-2018 RAM 3500 gas powered truck with this 5.5-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 4 inch

1. 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
2. The carrier bearing drop is necessary for models equipped with two-piece rear drive shaft.
3. Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
4. DRW models fit inner wheel clearance to the upper u-bolt plate on 5.5-6 inch kits

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Leaf Springs

• Level stance front to rear.
• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Shock Option Fox 2.0 Performance Shocks

Tire Size: 35 x 12.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 17 x 9 Back Spacing: 4.5/5.625

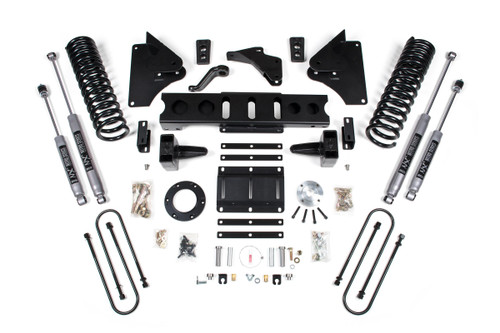

Kit Components:

• Includes two BDS002609, Ram Rear Leaf Spring, UPC Code 658848611300
• Includes one BDS012610, 2013 Ram 3500 6 inch Front Box Kit, UPC Code 658848612727
• Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
• Includes one BDS122616, Ram T-Case Index - Gas - 6 Bolt, UPC Code 658848619702
• Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
• Includes four UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt, UPC Code 711745613003

Elevate your 2013-2018 RAM 3500 gas truck’s performance and appearance with the BDS SUSPENSION BDS1619FS 5.5-inch lift kit. This meticulously engineered lift kit is designed to enhance your truck's stance while ensuring a smooth, capable ride across various terrains. With the ability to accommodate up to 37-inch tires, you’ll experience not just an upgraded look but also improved off-road capability.

The front lift features gas-specific, full-length Pro-Ride coil springs, which deliver a perfect blend of enhanced lift height and a predictable, comfortable riding experience. The kit includes an array of essential components such as heavy-duty radius arm drop brackets, a forged drop pitman arm, and a track bar bracket for precise steering correction. This comprehensive setup minimizes steering angle and maintains proper wheel alignment, ensuring superior handling on and off the road.

At the rear, high-strength fabricated lift blocks, extended u-bolts, and a matching set of BDS NX2 Nitro or FOX 2.0 Performance shocks work in harmony to provide a balanced lift, giving your truck a level stance from front to back. The multi-leaf progressive design of the leaf springs contributes to reduced axle wrap and a stable feel during heavy loads.

Built with quality and performance in mind, this lift kit includes components that accommodate various driveline configurations, making it suitable for a range of RAM 3500 models. Whether conquering rugged trails or enhancing your truck's style on city streets, BDS Suspension delivers the perfect upgrade for dedicated RAM enthusiasts. Embrace the adventure and transform your truck into a powerful, stylish beast with the BDS SUSPENSION BDS1619FS lift kit.
