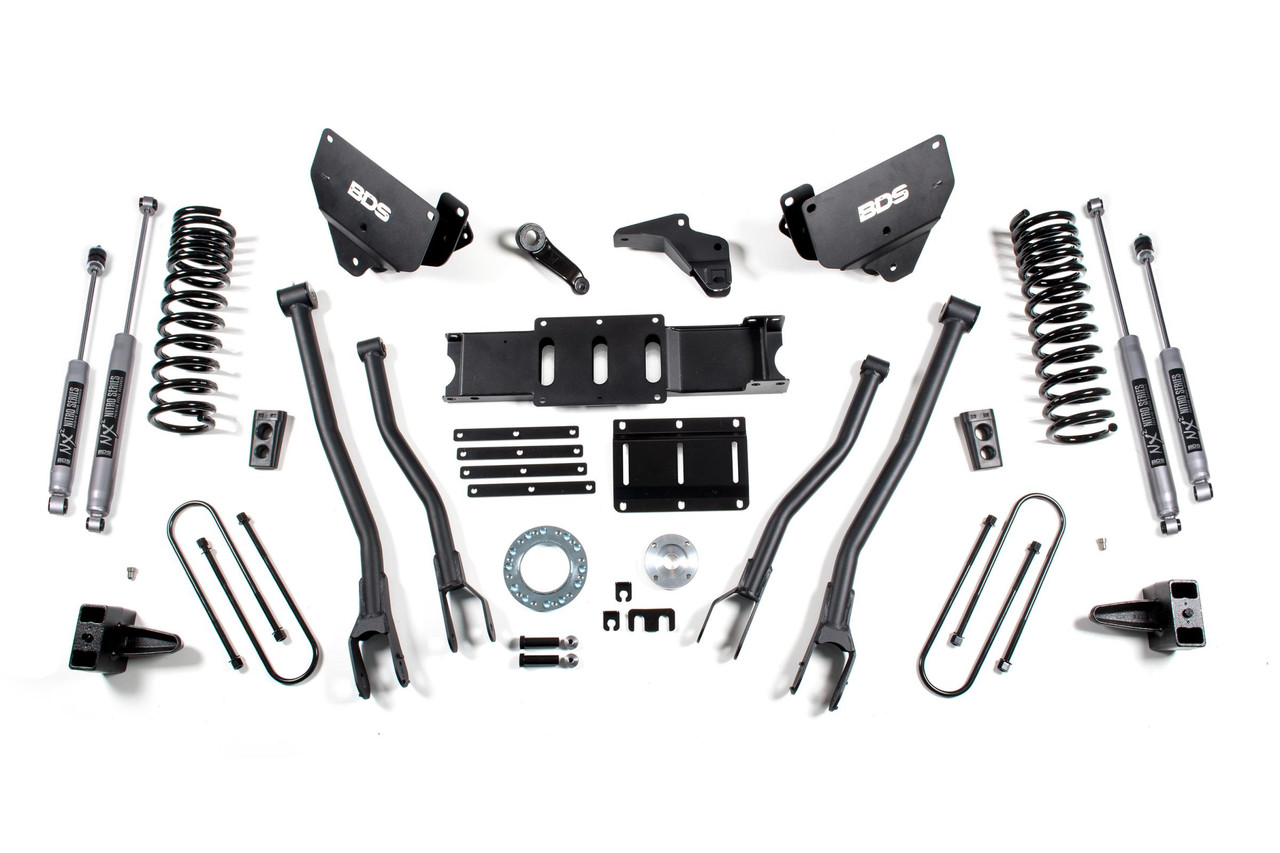

BDS SUSPENSION BDS1618FPE 6 INCH LIFT KIT W/ 4-LINK RAM 3500 13-18 4WD DIESEL LEAF SPRINGS 6 BOLT INDEXING RING FOX 2.5 PERFORMANCE ELITE SHOCKS

Built to outperform, BDS Suspension engineered a 6-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

1. The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft.
2. Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Leaf Springs

• Level stance front to rear.
• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Tire Size: 37 x 13.5 Wheel Diameter: 17 x 9 Back Spacing: 5.625

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Indexing Ring Option 6 Bolt Indexing Ring

• Kits come standard with 6-Bolt indexing ring kit.

Kit Components:

• Includes two BDS002609, Ram Rear Leaf Spring, UPC Code 658848611300
• Includes one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2), UPC Code 658848612345
• Includes one BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2), UPC Code 658848612703
• Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel, UPC Code 658848616428
• Includes one BDS122623, 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt, UPC Code 658848619757
• Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• Includes one FOX88326102, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 inchРЎСљ Lift, Dual Speed Compression Adjust
• Includes four UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt, UPC Code 711745613003

Elevate your 2013-2018 RAM 3500 diesel truck to new heights with the BDS SUSPENSION BDS1618FPE 6 Inch Lift Kit. This comprehensive lift kit is expertly engineered to enhance stance, performance, and off-road capability, making it perfect for adventure enthusiasts and everyday drivers alike. With the ability to accommodate up to 37-inch tires, this kit delivers the robust look and functionality you desire.

At the heart of this kit are diesel-specific Pro-Ride coil springs that provide a smooth and responsive ride across various terrains. The innovative 4-Link conversion optimizes suspension geometry, significantly enhancing handling and stability while ensuring axle positioning is maintained, thanks to high-strength 1/4-inch steel brackets. This upgrade includes a forged drop pitman arm and a heavy-duty track bar drop bracket, ensuring your steering geometry is corrected after the lift, which allows for precise control during all drives.

In the rear, the kit is equipped with a high-strength fabricated lift block, longer u-bolts, and a matched pair of NX2 Nitro or FOX 2.0 Performance shocks, guaranteeing superior performance on or off-road. The multi-leaf progressive design of the leaf springs ensures a level stance and smooth ride quality while maintaining factory payload ratings, making every journey comfortable and stable.

With FOX’s 2.5 Performance Elite shocks included, you can easily adjust them to fit any terrain, load, or speed, ensuring an optimized driving experience. The external reservoir design and dual-speed compression adjust capabilities enhance off-road performance, making this lift kit a top choice for serious truck owners.

Complete your build with confidence as BDS Suspension stands behind this kit, offering a 1-year manufacturer’s warranty for peace of mind. Transform your RAM 3500 with this ultimate lifting experience.
