BDS SUSPENSION

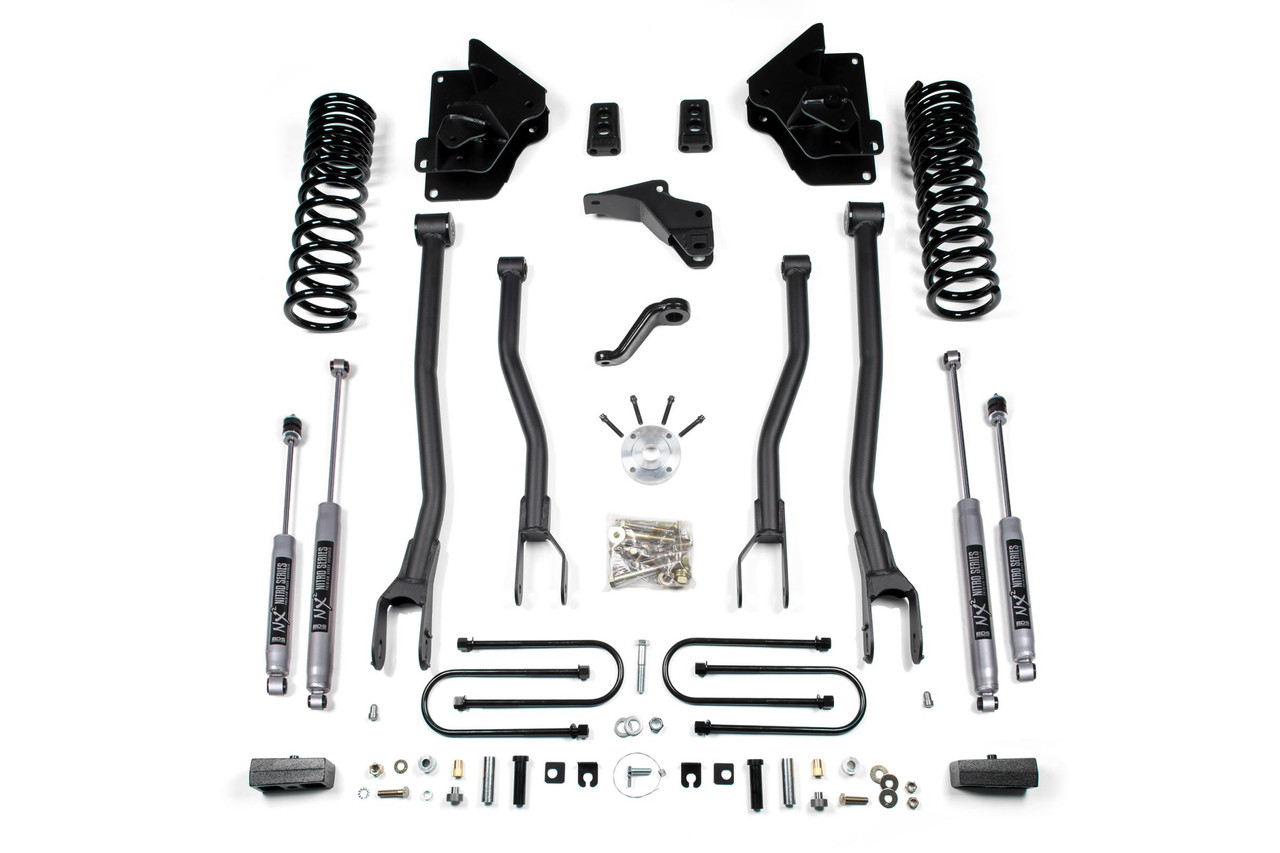

BDS SUSPENSION BDS1613FS 4 INCH LIFT KIT W/ 4-LINK RAM 3500 13-18 4WD GAS 3 INCH BLOCK FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1613FS
MPN:
BDS1613FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1613FS 4 INCH LIFT KIT W/ 4-LINK RAM 3500 13-18 4WD GAS 3 INCH BLOCK FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1613FS 4 INCH LIFT KIT W/ 4-LINK RAM 3500 13-18 4WD GAS 3 INCH BLOCK FOX 2.0 PERFORMANCE SHOCKS
$3,492.41

Description

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 gas powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 2 inch
  1. The carrier-bearing drop kit is necessary for models equipped with two-piece rear drive shaft.
  2. 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option 3 Inch Block Kit

  • Level to tail high appearance

Tire Size: 35 x 12.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 17 x 9 Back Spacing: 4.5/5.625

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Kit Components:

  • Includes one BDS012317, 2013 Ram 3500 3 inch Rear Box w/4 inch axle, UPC Code 711745611450
  • Includes one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2), UPC Code 658848612345
  • Includes one BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2), UPC Code 658848612390
  • Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
  • Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
  • Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevate your off-road experience with the BDS Suspension BDS1613FS 4-Inch Lift Kit featuring an advanced 4-Link conversion tailored specifically for the 2013-2018 RAM 3500 gas-powered truck. This expertly engineered lift kit is designed not only to enhance your truck’s stance, but also to significantly improve both performance and capability, providing clearance for tires up to 35 inches.

The front of the kit features gas-specific Pro-Ride coil springs, coupled with robust 4-Link control arms and conversion mounts. A forged drop pitman arm and track bar bracket ensure precision steering correction, while included bump stops and brake line brackets provide added safety and support. With the selection of NX2 or FOX 2.0 nitrogen charged shocks, you can enjoy a smooth and controlled ride across all terrains.

At the rear, a fabricated lift block, longer u-bolts, and a matching set of performance shocks complement the overall setup, creating a seamless blend of strength and functionality. The unique 4-Link conversion optimizes suspension geometry, improving handling and stability while minimizing caster change throughout wheel travel.

Experience the luxury of high-strength, progressive-rate coil springs that guarantee the perfect lift height and a predictable ride quality. The kit also addresses necessary steering corrections with a well-engineered drop pitman arm, positioning the axle correctly for an enhanced driving experience.

The BDS Suspension BDS1613FS not only transforms the aesthetics and functionality of your RAM 3500, but it also instills confidence both on and off the beaten path. This all-in-one suspension solution is perfect for those looking to boost their vehicle's performance and off-road capabilities without compromise. Step up your game and embrace a new level of adventure with this top-tier lift kit.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
