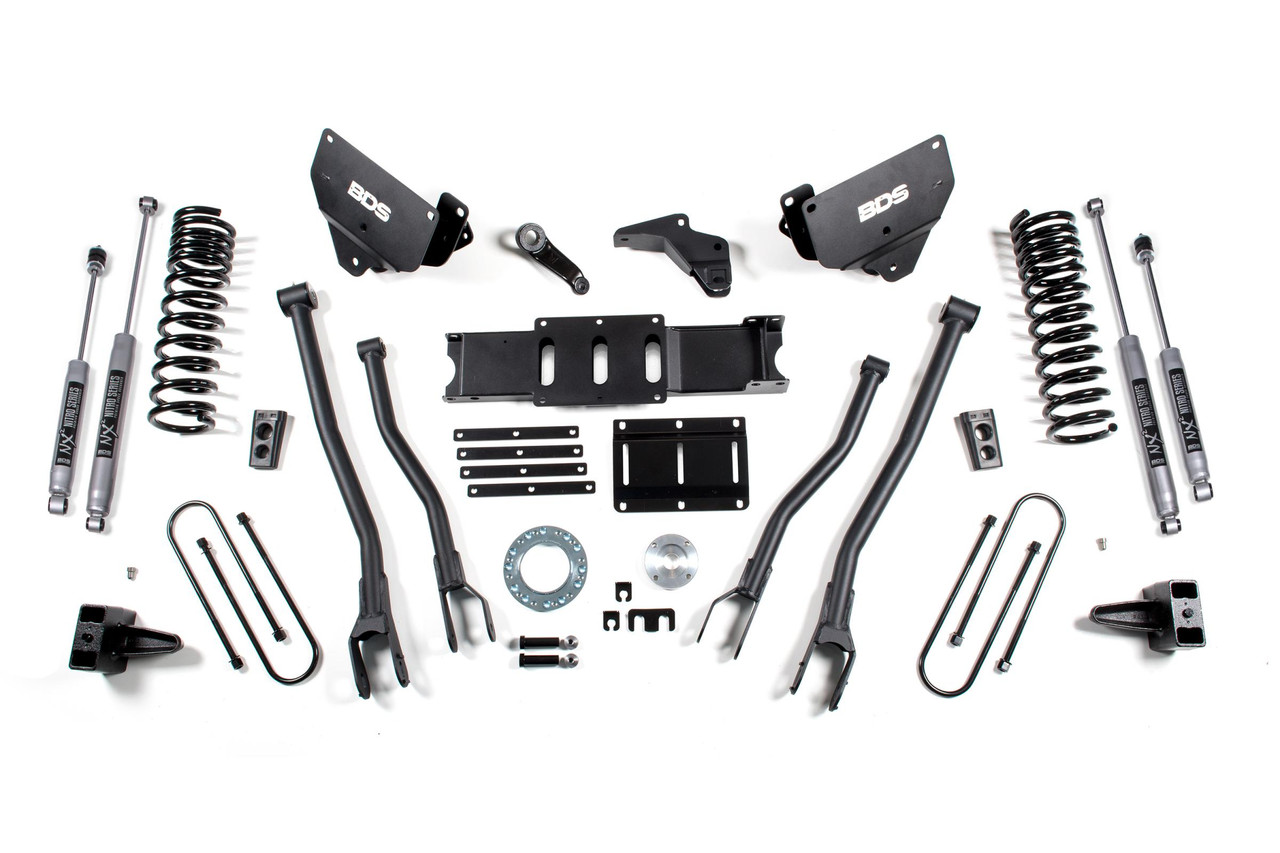

BDS SUSPENSION BDS1608H 5.5 INCH LIFT KIT W/ 4-LINK RAM 3500 13-18 4WD GAS 5 INCH BLOCK NX2 NITRO SHOCKS

Built to outperform, BDS Suspension engineered a 5.5-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 gas powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability.

This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 4 inch

1. 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
2. The carrier bearing drop is necessary for models equipped with two-piece rear drive shaft.
3. Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
4. DRW models fit inner wheel clearance to the upper u-bolt plate on 5.5-6 inch kits

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option Block Kit

• 5 Inch Block: Level to tail high appearance
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

Tire Size: 35 x 12.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 17 x 9 Back Spacing: 4.5/5.625

Kit Components:

• Includes one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2), UPC Code 658848612345
• Includes one BDS012516, Dodge 5 inch Rear Block Kit w/4 inch, UPC Code 658848612598
• Includes one BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2), UPC Code 658848612703
• Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
• Includes one BDS122616, Ram T-Case Index - Gas - 6 Bolt, UPC Code 658848619702
• Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

The BDS Suspension BDS1608H 5.5 Inch Lift Kit with 4-Link for the 2013-2018 RAM 3500 4WD Gas trucks is a meticulously engineered lift solution that takes performance to the next level. Specifically designed to enhance stance, improve overall capability, and provide the clearance needed for up to 37-inch tires, this lift kit combines superior components for an unmatched off-road experience.

At the heart of this package are gas-specific Pro-Ride coil springs that ensure a smooth, controlled ride, while the innovative 4-Link conversion optimizes suspension geometry for improved handling and stability. The kit features robust 4-Link control arms, a forged drop pitman arm for precise steering correction, and a comprehensive array of accessories including bump stops and brake line brackets. The precision-tuned NX2 Nitro shocks enhance both on-road comfort and off-road performance, providing a versatile setup that adapts to various terrains.

In the rear, a heavy-duty fabricated lift block and longer u-bolts integrate seamlessly with the matching NX2 Nitro or FOX 2.0 Performance shocks, delivering exceptional strength and stability. This thoughtful design prioritizes correct pinion angles and leverages a heavy-duty track bar drop bracket for optimal axle positioning.

Highlighted features include high-strength 1/4-inch steel brackets for the bolt-on 4-Link upgrade, progressive rate coil springs for unmatched ride quality, and comprehensive steering corrections that maintain handling performance post-lift. The kit caters to both 5.7L and 6.4L gas models, with additional modifications advised for enhanced fitment.

Suitable for those seeking serious lift and superior performance, the BDS1608H Lift Kit is a prime choice for anyone looking to elevate their RAM 3500 and conquer rugged terrains with confidence.
