BDS SUSPENSION BDS1607H 5.5 INCH LIFT KIT RAM 3500 13-18 4WD GAS 5 INCH BLOCK NX2 NITRO SHOCKS

Improve the ride and style of your 2013-2018 RAM 3500 gas powered truck with this 5.5-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 4 inch

1. 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
2. The carrier bearing drop is necessary for models equipped with two-piece rear drive shaft.
3. Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
4. DRW models fit inner wheel clearance to the upper u-bolt plate on 5.5-6 inch kits

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option Block Kit

• 5 Inch Block: Level to tail high appearance
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

Shock Option NX2 Nitro Shocks

Tire Size: 35 x 12.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 17 x 9 Back Spacing: 4.5/5.625

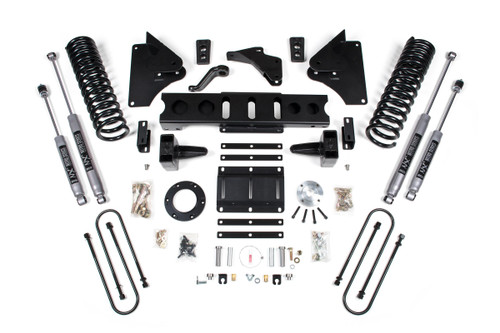

Kit Components:

• Includes one BDS012516, Dodge 5 inch Rear Block Kit w/4 inch, UPC Code 658848612598
• Includes one BDS012610, 2013 Ram 3500 6 inch Front Box Kit, UPC Code 658848612727
• Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
• Includes one BDS122616, Ram T-Case Index - Gas - 6 Bolt, UPC Code 658848619702
• Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

Elevate your driving experience with the BDS SUSPENSION BDS1607H 5.5-Inch Lift Kit, meticulously engineered for 2013-2018 RAM 3500 gas-powered trucks. This comprehensive lift kit not only enhances your truck’s performance but also optimizes its stance and style, providing ample clearance to accommodate tires of up to 37 inches.

The kit is equipped with high-quality components to ensure a seamless installation and exceptional handling. At the forefront, gas-specific Pro-Ride coil springs deliver a smooth and adaptable ride across diverse terrains. This is complemented by essential features such as radius arm drop brackets, a forged drop pitman arm, a heavy-duty track bar bracket for improved steering precision, bump stops, and brake line brackets, all designed to deliver quality performance.

In the rear, the BDS1607H features a robust fabricated lift block along with extended u-bolts and a matching set of NX2 Nitro or FOX 2.0 performance shocks, which enhance off-road capabilities while maintaining ride comfort. The comprehensive design of this lift kit also addresses steering geometry with a front track bar relocation bracket to ensure the axle remains centered during suspension travel.

Additional elements include a robust transmission crossmember and a t-case indexing ring to correct front driveline angles, allowing you to retain factory driveshaft functionality. The heavy-duty construction of the components ensures durability, even under the toughest conditions.

With specific lift heights of 5.5 inches in the front and 4 inches in the rear, the BDS1607H offers a level to tail-high stance, enhancing both aesthetic appeal and off-road performance. With straightforward installation requirements, this lift kit promises to unleash the full potential of your RAM 3500, transforming it into an impressive and capable machine ready for adventure.
