BDS SUSPENSION BDS1605FS 5.5 INCH LIFT KIT RAM 2500 14-18 4WD GAS FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1605FS
MPN:
BDS1605FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1605FS 5.5 INCH LIFT KIT RAM 2500 14-18 4WD GAS FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1605FS 5.5 INCH LIFT KIT RAM 2500 14-18 4WD GAS FOX 2.0 PERFORMANCE SHOCKS
$2,575.60

Description

Take your 2014-2018 RAM 2500 gas powered truck to the next level with this 5.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Coil Springs
  • Shocks Included: Yes
  • Front Lift Height: 5.5 inch
  • Rear Lift Height: 4.5 inch
  1. 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
  • Heavy duty radius arm drop brackets maintain proper suspension geometry
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/5

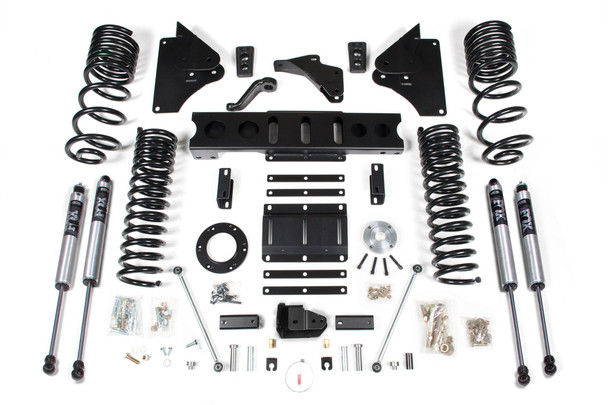

Kit Components:

  • Includes one BDS012458, 2014-2018 Ram 2500 4.5 inch Rear Coil Box Kit, UPC Code 658848612475
  • Includes one BDS012610, 2013 Ram 3500 6 inch Front Box Kit, UPC Code 658848612727
  • Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
  • Includes one BDS122616, Ram T-Case Index - Gas - 6 Bolt, UPC Code 658848619702
  • Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
  • Includes two FOX98224756, Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1

Elevate your 2014-2018 RAM 2500 gas truck with the BDS Suspension BDS1605FS 5.5-inch Lift Kit. Crafted for enthusiasts seeking enhanced performance, improved stance, and rugged capability, this comprehensive kit allows for a commanding clearance fit for up to 37-inch tires. Engineered with precision, it includes essential components to transform your truck into an off-road powerhouse.

The front of the kit features gas-specific Pro-Ride coil springs that deliver exceptional ride quality across diverse terrains. Coupled with heavy-duty radius arm drop brackets and a forged drop pitman arm, steering geometry is optimized for improved handling. The addition of a track bar bracket maintains proper axle positioning while sway bar relocation and brake line brackets ensure safe and efficient operation.

In the rear, progressive rate Pro-Ride coil springs complement the lift, working alongside bump stop extensions and a track bar relocation bracket to enhance ride dynamics. Both the front and rear of the vehicle are equipped with high-performance NX2 or FOX 2.0 nitrogen-charged shocks, known for their durability and responsiveness in challenging off-road conditions.

The BDS1605FS kit also includes an HD transmission crossmember and an indexing ring to ensure compatibility with the factory front driveshaft. Designed with high-strength tubular radius arms, the kit offers flexibility for caster adjustments, promoting quiet operation thanks to OE-style rubber bushings.

With this lift kit, you can confidently tackle any adventure while enjoying a smooth ride. Whether navigating rugged terrain or hitting the highway, the BDS Suspension Lift Kit is engineered for performance, durability, and an unbeatable driving experience. Transform your RAM 2500 into the ultimate off-road companion today.
