BDS SUSPENSION

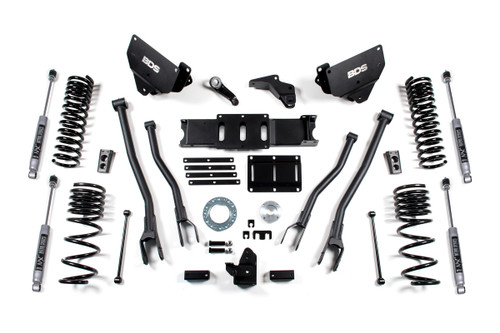

BDS SUSPENSION BDS1604FPE 6 INCH LIFT KIT W/ 4-LINK RAM 2500 14-18 4WD DIESEL FOX 2.5 PERFORMANCE ELITE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1604FPE
MPN:
BDS1604FPE
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1604FPE 6 INCH LIFT KIT W/ 4-LINK RAM 2500 14-18 4WD DIESEL FOX 2.5 PERFORMANCE ELITE SHOCKS
  • BDS SUSPENSION BDS1604FPE 6 INCH LIFT KIT W/ 4-LINK RAM 2500 14-18 4WD DIESEL FOX 2.5 PERFORMANCE ELITE SHOCKS
$6,057.65

Description

Built to outperform, BDS Suspension engineered a 6-inch lift kit with 4-Link conversion for your 2014-2018 RAM 2500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Coil Springs
  • Shocks Included: Yes
  • Front Lift Height: 6 inch
  • Rear Lift Height: 4.5 inch
  1. Not for use with factory rear airbag suspension
  2. Indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicle coul have 8-bolt transfer cases (w/heavy-duty Aisin 6 speed transmissions), order 122813.
  • Heavy duty 4-link arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

Tire Size: 37 x 12.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/5.625

Kit Components:

  • Includes one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2), UPC Code 658848612345
  • Includes one BDS012458, 2014-2018 Ram 2500 4.5 inch Rear Coil Box Kit, UPC Code 658848612475
  • Includes one BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2), UPC Code 658848612703
  • Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel, UPC Code 658848616428
  • Includes one BDS122623, 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt, UPC Code 658848619757
  • Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
  • Includes one FOX88326067, Kit: 2014-2023 Ram 2500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 11.1 inch, 4-6 inch Lift, Dual Speed Compression Adjust

Experience unmatched performance and enhanced capability with the BDS SUSPENSION BDS1604FPE 6 Inch Lift Kit, specifically designed for the 2014-2018 RAM 2500 4WD diesel truck. This comprehensive 6-inch lift kit optimizes your vehicle's stance, allowing for clearance of up to 37-inch tires while dramatically improving off-road performance.

The kit features high-strength Pro-Ride coil springs engineered exclusively for diesel applications, offering a smooth, predictable ride across various terrains. The standout 4-Link conversion replaces factory radius arms with advanced control arms, honing suspension geometry for superior handling, stability, and strength. Each component, including the forged drop pitman arm, track bar relocation brackets, and bump stop extensions, has been meticulously crafted to ensure flawless alignment and steering dynamics.

To address the shift in transfer case position, the kit includes an indexing ring and a robust transmission crossmember, allowing seamless compatibility with the factory driveshaft. Additionally, the BDS Suspension NX2 or FOX 2.0 performance shocks are engineered to enhance ride quality, featuring specially tuned nitrogen gas for optimal performance, whether on rugged trails or smooth highways.

The FOX 2.5 Performance Elite Series shocks provide advanced adjustability, letting you tailor the ride to match your terrain. With a durable aluminum body and a specially designed external reservoir, these shocks ensure consistent performance under pressure, while the dual-speed compression adjust feature allows for further versatility.

Designed for heavy-duty applications, the kit enhances your truck's handling, stability, and overall ride experience. Embrace adventure confidently with the BDS SUSPENSION BDS1604FPE Lift Kit, where every journey can be taken to the next height.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
