BDS SUSPENSION

BDS SUSPENSION BDS1602FS 4 INCH LIFT KIT W/ 4-LINK RAM 2500 14-18 4WD DIESEL FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1602FS
MPN:
BDS1602FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1602FS 4 INCH LIFT KIT W/ 4-LINK RAM 2500 14-18 4WD DIESEL FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1602FS 4 INCH LIFT KIT W/ 4-LINK RAM 2500 14-18 4WD DIESEL FOX 2.0 PERFORMANCE SHOCKS
$2,897.60

Description

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your 2014-2018 RAM 2500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Coil Springs
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 4 inch
  1.  Not for use with factory rear airbag suspensions
  • Heavy duty 4-link arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Tire Size: 35 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/5.625

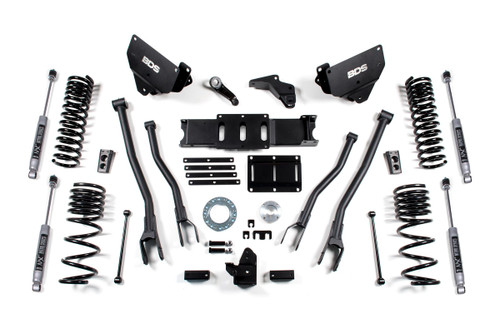

Kit Components:

  • Includes one BDS012258, 2014-2018 Ram 2500 2.5 inch Rear Coil Spring Replacement Box Kit, UPC Code 658848612161
  • Includes one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2), UPC Code 658848612345
  • Includes one BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2), UPC Code 658848612390
  • Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
  • Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
  • Includes two FOX98224753, Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1

The BDS SUSPENSION BDS1602FS 4 INCH LIFT KIT offers an exceptional upgrade for your 2014-2018 RAM 2500 diesel truck, designed to enhance its off-road capabilities, stance, and overall performance. This comprehensive 4-inch lift kit includes a revolutionary 4-Link conversion, allowing clearance for impressive 35-inch tires, making it perfect for both adventurous trails and daily use.

At the forefront of this lift kit, the diesel-specific Pro-Ride coil springs provide a reliable and smooth ride across diverse terrains. The advanced 4-Link control arms come equipped with conversion mounts, enabling superior suspension geometry for improved handling. Its strong forged drop pitman arm, along with a track bar bracket, ensures seamless steering correction, while also maintaining axle positioning for enhanced stability during the ride.

The rear section of the kit complements the front with progressive rate Pro-Ride coil springs and a track bar relocation bracket, ensuring optimized axle positioning. The addition of bump stop extensions and sway bar links promotes balanced handling, while the FOX 2.0 gas shocks enhance ride quality, making for a resilient setup wherever the journey takes you.

With its heavy-duty 4-link arms and high-tensile coil springs, this kit ensures that your truck can tackle tough terrains without compromising on comfort. Notable features such as steering angle correction and a transmission crossmember enhance driveline angles, allowing you to use factory driveshafts seamlessly.

The race-developed FOX 2.0 Performance Series shocks bring innovative design and application-specific valving, delivering both durability and a long-lasting finish. Experience the ultimate lift kit that fuses performance, reliability, and appearance, all engineered to take your RAM 2500 to new heights of adventure.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
