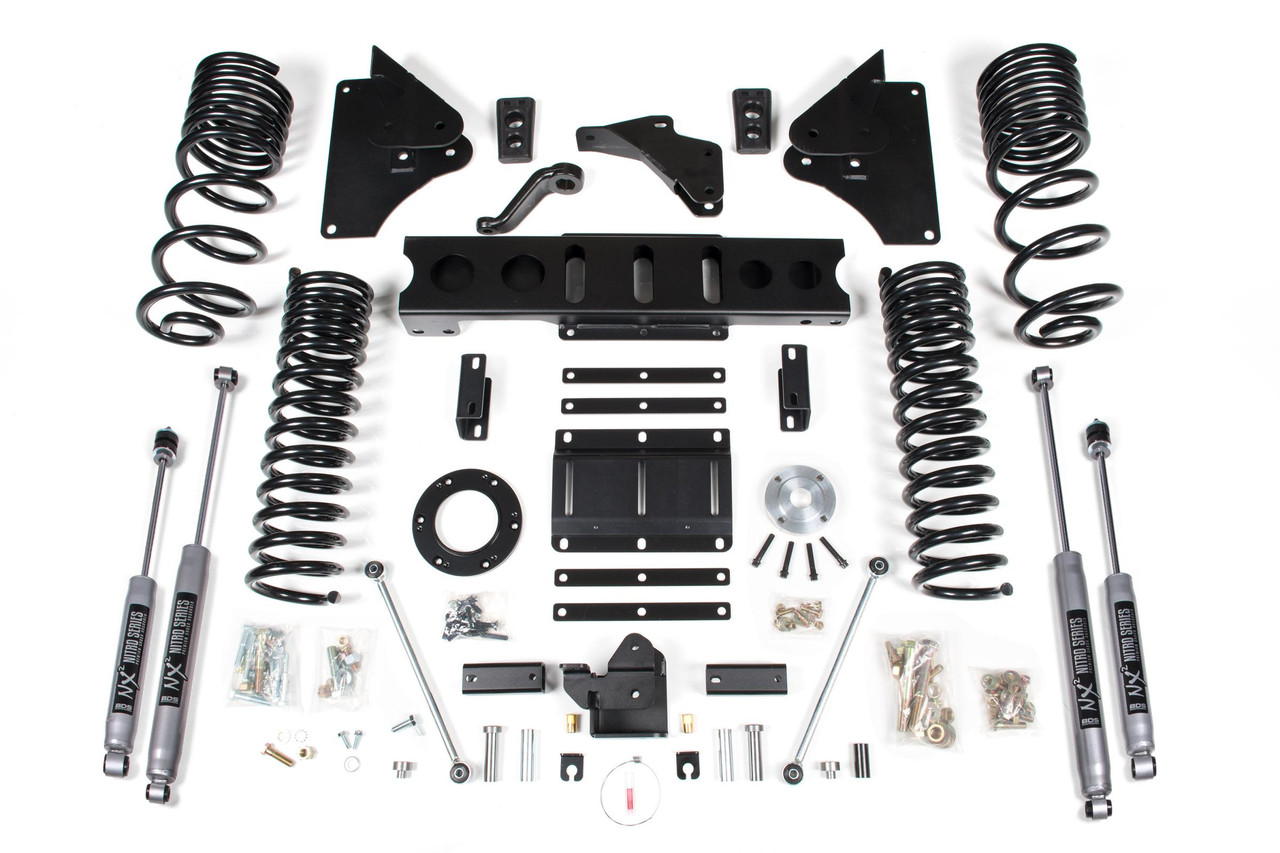

BDS SUSPENSION BDS1600H 6 INCH LIFT KIT RAM 2500 14-18 4WD DIESEL NX2 NITRO SHOCKS

Take your 2014-2018 RAM 2500 diesel powered truck to the next level with this 6-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4.5 inch

1. Not for use with factory rear airbag suspensions
2. Indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicle could have 8 bolt transfer cases (w/Heavy-duty Aisin 6 speed transmissions)

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Kit Components:

• Includes one BDS012458, 2014-2018 Ram 2500 4.5 inch Rear Coil Box Kit, UPC Code 658848612475
• Includes one BDS012610, 2013 Ram 3500 6 inch Front Box Kit, UPC Code 658848612727
• Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel, UPC Code 658848616428
• Includes one BDS122623, 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt, UPC Code 658848619757
• Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
• Includes two BDS85756, Shock- 27.9 x 16.6 x 2-3/8 - Special/EB1, UPC Code 711745609655

Elevate your driving experience with the BDS Suspension BDS1600H 6-inch Lift Kit designed specifically for 2014-2018 RAM 2500 diesel 4WD trucks. This fully integrated lift kit enhances your truck's stance and performance, allowing you to tackle any terrain with confidence and style. With the capability to fit tires up to 37 inches, this system transforms your truck into a robust off-road machine.

The BDS1600H lift kit includes diesel-specific Pro-Ride coil springs, engineered for a smooth ride while providing the necessary height. The heavy-duty radius arms come as a notable upgrade, mounted in the factory locations, allowing for optimal caster adjustment to suit a variety of lift heights. A precision forged drop pitman arm and track bar bracket ensure proper steering geometry, complemented by sway bar relocation to maintain excellent handling.

Installation is straightforward with essential components such as indexing rings and a new transmission crossmember, ensuring seamless integration with your factory front driveshaft. The rear features progressive rate Pro-Ride coil springs, along with bump stop extensions and matching NX2 Nitro or FOX 2.0 shocks that enhance both comfort and off-road performance.

Designed for durability, the NX2 Nitro series shocks provide a nitrogen-charged experience with 10-stage velocity-sensitive valving and a dual-welded structure for added strength. The unique silver powder coat finish not only looks great but also resists corrosion.

With heavy-duty components and a focus on maintaining suspension geometry, the BDS1600H lift kit is the perfect solution for RAM 2500 owners seeking to boost their vehicle's capabilities without compromising on ride quality. Experience the roads less traveled with confidence and power, all thanks to BDS Suspension.
