BDS SUSPENSION BDS1577FPE 4 INCH LIFT KIT W/ 4-LINK FOX 2.5 PERFORMANCE ELITE COIL-OVER CONVERSION FORD F350 SUPER DUTY DRW 17-19 4WD DIESEL

(No reviews yet) Write a Review
SKU:
BDS1577FPE
MPN:
BDS1577FPE
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1577FPE 4 INCH LIFT KIT W/ 4-LINK FOX 2.5 PERFORMANCE ELITE COIL-OVER CONVERSION FORD F350 SUPER DUTY DRW 17-19 4WD DIESEL
  • BDS SUSPENSION BDS1577FPE 4 INCH LIFT KIT W/ 4-LINK FOX 2.5 PERFORMANCE ELITE COIL-OVER CONVERSION FORD F350 SUPER DUTY DRW 17-19 4WD DIESEL
$4,950.50

Description

Maximize the capability of your 2017-2019 Ford F350 Dually inchDRW inch Super Duty diesel powered truck with this 4-inch lift kit with 4-Link and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil-Over
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 2 inch
  1. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  2. 37 x 12.50 Tires may require minor trimming.
  3. Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
  4. If your truck is equipped with a factory rear sway bar add: 123005
  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

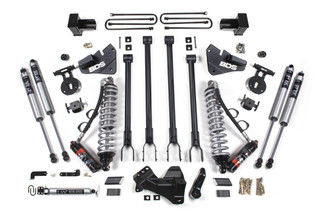

Kit Components:

  • Includes one BDS013423, 2017-2022 Ford F-250 / F-350 4 Inch 4-Link Box Kit 2of2, UPC Code 658848613496
  • Includes one BDS013526, 2017-2020 F350 Dually 5 inch Block Kit, UPC Code 658848613632
  • Includes one BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2, UPC Code 658848613700
  • Includes one BDS123613, 2017-2024 Super Duty Coil-over Mount Kit, UPC Code 711745604407
  • Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
  • Includes one FOX88406427, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 4 inch Lift, Dual Speed Compression Adjust
  • Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
  • Includes two FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Enhance the performance and capabilities of your 2017-2019 Ford F350 Dually (DRW) Super Duty diesel truck with the BDS Suspension BDS1577FPE 4-Inch Lift Kit, featuring an innovative 4-Link FOX 2.5 Performance Elite Coil-Over conversion. Crafted to provide superior stance and off-road prowess, this comprehensive lift kit allows for the installation of larger tires, accommodating up to 37 inches for a striking appearance and improved clearance.

The kit's front assembly includes specialized diesel-specific FOX 2.5 coil-over shocks, along with robust 4-link control arms and conversion brackets, ensuring optimal suspension geometry while enhancing handling and strength. With a forged drop pitman arm and track bar bracket, steering corrections are seamlessly integrated, delivering smooth maneuverability both on and off the road.

In the rear, the lift kit features high-strength fabricated lift blocks and extended u-bolts paired with an equally impressive set of FOX Performance shocks. This combination not only elevates your truck's profile but also ensures a level stance and outstanding ride quality.

The switch to a 4-link suspension system from the factory's stamped steel radius arms optimizes the suspension geometry, providing better handling characteristics and enhanced strength. Each component, including the bolt-on coil-overs and high-density Eibach coil springs, is pre-tuned for a hassle-free installation, allowing you to take on any terrain with confidence.

With adjustable compression settings on the 2.5 Performance Elite shocks, you can easily adapt to varying loads and road conditions, ensuring a tailored driving experience. Built to withstand the harshest environments, the shocks are corrosion-resistant and fully serviceable, ensuring a long-lasting performance. Transform your Ford F350 with this lift kit and experience unmatched durability and capability in every adventure.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
