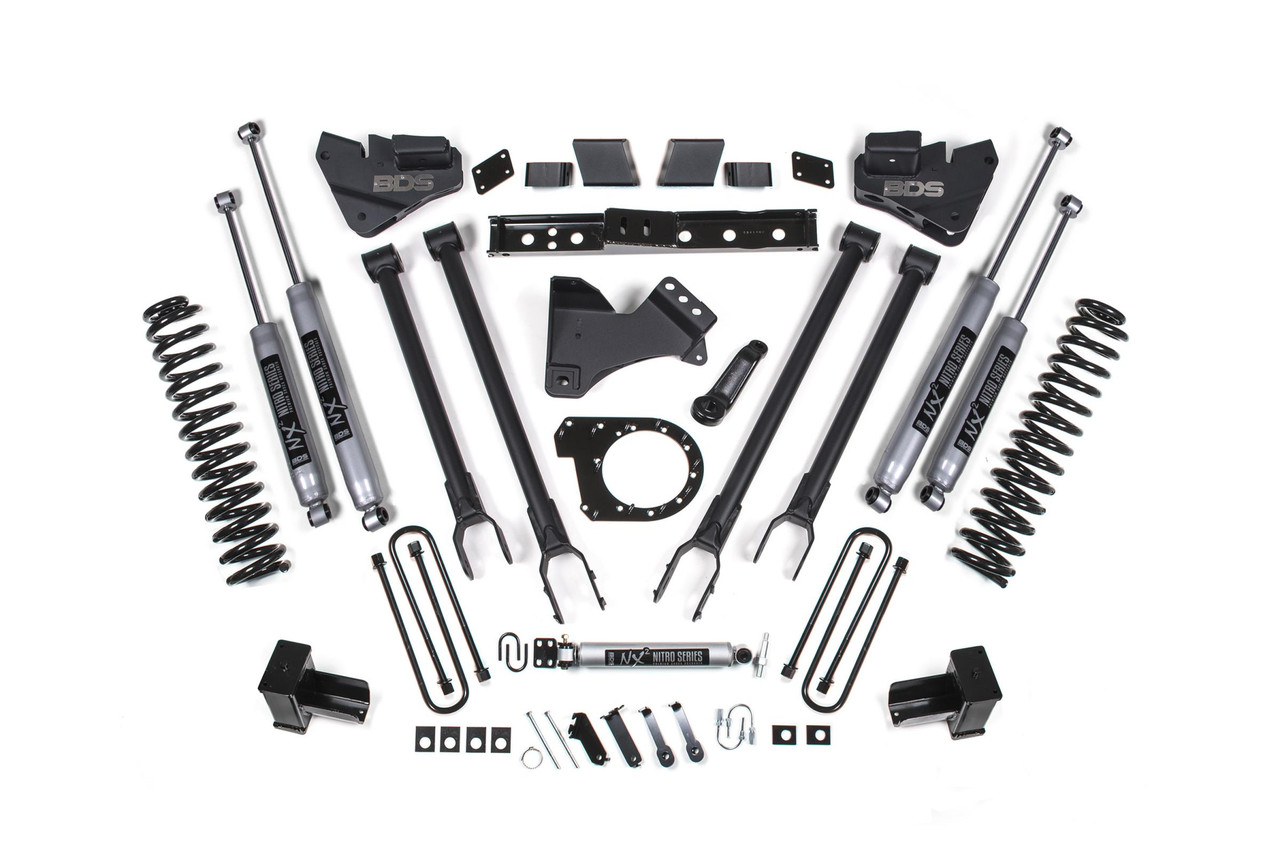

BDS SUSPENSION BDS1574H 6 INCH LIFT KIT W/ 4-LINK FORD F350 SUPER DUTY DRW 20-22 4WD DIESEL NX2 NITRO SHOCKS

Take your dual rear wheel inchDRW inch Ford F350 Super Duty diesel truck to the next level with this 6-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 38 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

T-Case Indexing

At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

1. Dually Models Only
2. The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
3. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
4. 38 x 13.50 Tires may require minor trimming.
5. The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 38 x 13.5 Wheel Diameter: 20 x 10 Back Spacing: 5

Kit Components:

• Includes one BDS013526, 2017-2020 F350 Dually 5 inch Block Kit, UPC Code 658848613632
• Includes one BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2, UPC Code 658848613700
• Includes one BDS013604, 2017-2022 Ford F-250 / F-350 6 inch 4-Link Box Kit 2of2, UPC Code 658848613731
• Includes one BDS033611, 2005-2022 Ford F250/F350 6 inch (Diesel) Coil Kit, UPC Code 658848616589
• Includes one BDS123605, 2017-2022 SD T-Case Indexing Kit- Diesel, UPC Code 711745604377
• Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
• Includes two BDS85718, Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609563
• Includes two BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609600

Elevate your driving experience with the BDS Suspension BDS1574H 6 Inch Lift Kit specifically designed for the 2020-2022 Ford F350 Super Duty DRW 4WD Diesel. This comprehensive lift kit redefines capability, offering an impressive 6-inch lift through a robust 4-Link system that enhances your truck's stance and performance while accommodating tires up to 38 inches.

The kit features diesel-specific Pro-Ride coil springs, providing a superior ride quality across all terrains. The upgrade to a 4-Link control arm conversion optimizes suspension geometry, promoting better handling and stability. Crafted with high-strength steel, the control arms ensure enhanced axle positioning and limited caster changes during wheel travel.

Included in the kit are essential components such as a forged drop pitman arm and a track bar relocation bracket, which maintain proper steering angles for precise handling. The lift kit also contains brake line brackets and an indexing ring, ensuring compatibility with the factory driveshaft and allowing smooth operation regardless of the increased height. In the rear, a high-strength fabricated lift block and longer u-bolts work in tandem with NX2 Nitro or optional FOX Performance shocks to deliver a balanced stance from front to back, with an additional rear lift of 5 inches.

Easy to install with a 100% bolt-on design, this kit provides an unparalleled upgrade without the need for extensive modification. The nitrogen-charged shocks feature advanced velocity-sensitive valving, offering enhanced control for on and off-road adventures. Transform your Super Duty dually into a powerhouse that not only looks striking but performs with unmatched strength and stability under any conditions.
