BDS SUSPENSION

BDS SUSPENSION BDS1573H 7 INCH LIFT KIT W/ RADIUS ARM FORD F350 SUPER DUTY DRW 20-22 4WD DIESEL NX2 NITRO SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1573H
MPN:
BDS1573H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1573H 7 INCH LIFT KIT W/ RADIUS ARM FORD F350 SUPER DUTY DRW 20-22 4WD DIESEL NX2 NITRO SHOCKS
  • BDS SUSPENSION BDS1573H 7 INCH LIFT KIT W/ RADIUS ARM FORD F350 SUPER DUTY DRW 20-22 4WD DIESEL NX2 NITRO SHOCKS
$2,709.95

Description

Take your Ford F350 Dually InchDRW Inch Super Duty diesel truck to the next level with this 7-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38 Inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

T-Case Indexing

At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 Inch
  • Rear Lift Height: 5 Inch
  1. Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final right height will be the same as standard models.
  2. Dually Models Only
  3. The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
  4. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
  5. 38 x 13.50 Tires may require minor trimming.
  6. The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
  • Easy, 100 percent Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Tire Size: 38 x 13.5 Wheel Diameter: 20 x 10 Back Spacing: 5

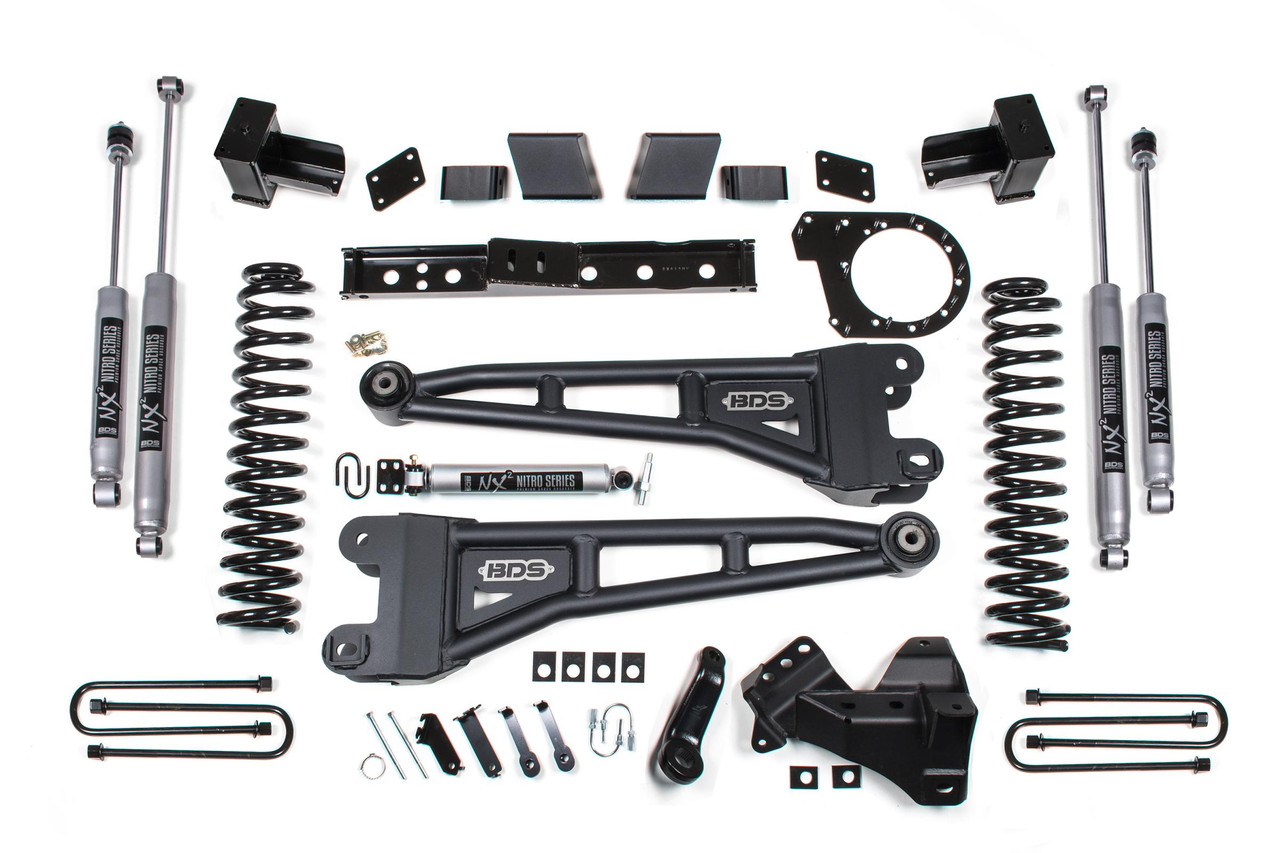

Kit Components:

  • Includes one BDS013526, 2017-2020 F350 Dually 5 Inch Block Kit, UPC Code 658848613632
  • Includes one BDS013603, 2020-2022 F250/F350 6 Inch RA Front Box Suspension System, UPC Code 658848613724
  • Includes one BDS033611, 2005-2022 Ford F250/F350 6 Inch (Diesel) Coil Kit, UPC Code 658848616589
  • Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
  • Includes one BDS123605, 2017-2022 SD T-Case Indexing Kit- Diesel, UPC Code 711745604377
  • Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
  • Includes two BDS85718, Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609563
  • Includes two BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609600

Elevate your Ford F350 Dually Super Duty Diesel truck with the BDS SUSPENSION BDS1573H 7-inch lift kit, engineered specifically for 20-22 4WD models. This comprehensive lift kit is tailored to enhance stance, performance, and off-road capability, allowing for the installation of up to 38-inch tires, transforming both look and functionality.

At the core of this lift kit are diesel-specific Pro-Ride coil springs that ensure optimal ride height while delivering exceptional comfort across various terrains. The heavy-duty replacement radius arms, crafted from high-strength tubular steel, not only enhance ground clearance but also offer caster adjustment to suit a range of lift preferences. Key components like the forged drop pitman arm and track bar bracket maintain proper steering angles, ensuring improved handling and stability.

Installation is straightforward with a 100% bolt-on design—perfect for those who appreciate hassle-free modifications. For optimal driveline performance, the kit includes a precision-built transfer-case indexing ring and a high-clearance transmission crossmember to ensure the factory driveshafts function smoothly.

The BDS1573H also features a set of custom-tuned NX2 Nitro shocks, engineered with nitrogen-charged twin-tube technology and 10-stage velocity-sensitive valving. These shocks provide exceptional control and a polished ride, whether on smooth highways or rugged trails. For those seeking maximum performance, an upgrade to FOX 2.0 Performance Series shocks is available, providing even greater off-road capabilities.

With high-strength fabricated lift blocks, extended brake line brackets, and a complete array of installation hardware, the BDS1573H lift kit transforms your F350 into a formidable powerhouse that commands attention on and off the road. Achieve the ultimate combination of style and performance with this premium suspension upgrade.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
