BDS SUSPENSION BDS1570FS 5 INCH LIFT KIT W/ 4-LINK FORD F250/F350 SUPER DUTY 20-22 4WD GAS LEAF SPRINGS FOX 2.0 PERFORMANCE SHOCKS

Raise the height of your Ford Super Duty gas powered truck with this 5-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gasoline-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, gasoline-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4 inch

1. Ford recommends the replacement of the pitman arm nut after each time it has been removed.
2. If installed on a truck with a top-mounted overload spring, an overload spacer block taller than 1-1/8 inch UBT4027 (Qty: 4) is required.
3. Front exhaust modification may be required to clear the front drive shaft (Gas Only).
4. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
5. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
6. Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
7. Larger Tires on the stock wheel are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and Tire fitment section.
8. Minor trimming may be necessary for clearance of 37x12.50 Tires on certain wheel setups.
9. Installation requires a torque wrench capable of 405 ft-lbs.
10. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

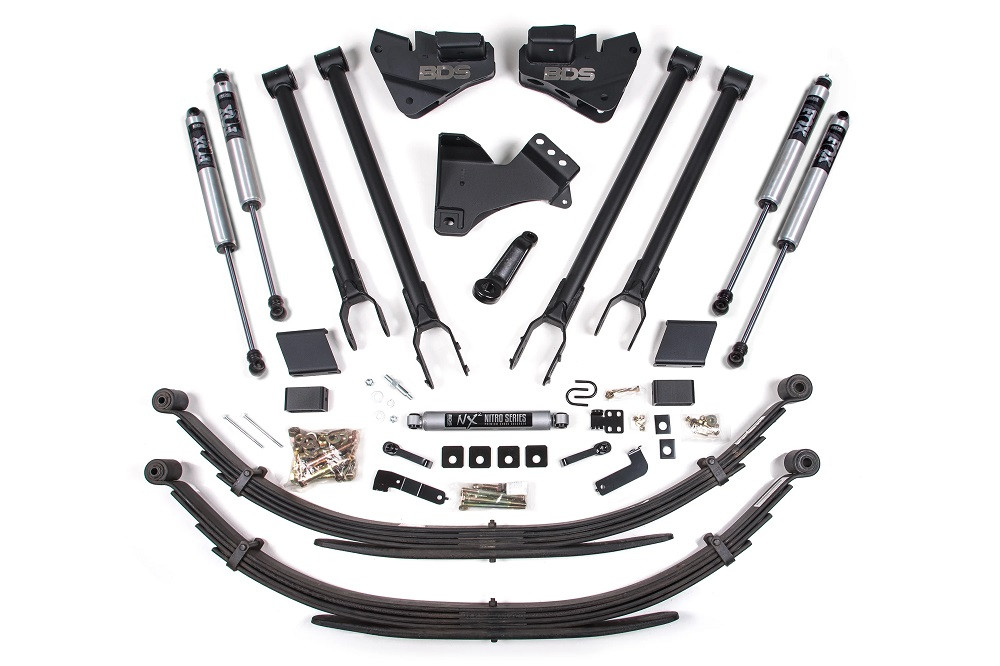

Kit Components:

• Includes two BDS003639, 2017-2024 Super Duty 6 inch Rear Leaf Spring, UPC Code 658848611409
• Includes one BDS013423, 2017-2022 Ford F-250 / F-350 4 Inch 4-Link Box Kit 2of2, UPC Code 658848613496
• Includes one BDS013438, 2017-2024 Ford F250/F350 4 inch Rear Leaf Spring Box Kit, UPC Code 658848613540
• Includes one BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2, UPC Code 658848613700
• Includes one BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit, UPC Code 658848616534
• Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
• Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• Includes two FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Elevate your Ford F250/F350 Super Duty truck’s performance and aesthetics with the BDS SUSPENSION BDS1570FS 5 Inch Lift Kit featuring a 4-Link conversion. Engineered specifically for 2020-2022 gas models, this comprehensive kit is designed to enhance your truck’s stance, capability, and ride quality, providing the necessary clearance to fit up to 37-inch tires.

The installation process is entirely bolt-on, ensuring a hassle-free upgrade. This kit includes gasoline-specific Pro-Ride coil springs that deliver a smooth, predictable ride across diverse terrains. The heavy-duty 4-Link control arms offer improved handling and stability, while the high-strength fabricated lift block in the rear maintains proper axle alignment without the need for lift blocks.

Furthermore, the kit incorporates precision-tuned nitrogen-charged FOX 2.0 Performance shocks, delivering exceptional control and comfort whether you’re on or off the road. Enhancing steering geometry, the forged drop pitman arm and track bar relocation bracket work together to optimize handling during wheel travel.

With attention to detail, the design ensures that your Super Duty maintains factory payload weight ratings and eliminates axle wrap, giving you a more controlled driving experience.

Each component, from the longer u-bolts to the included brake line brackets, is crafted for durability and reliability. With this lift kit, your truck won't just look more imposing; it will perform better in any situation. Experience the road like never before with the BDS 5 Inch Lift Kit and unleash the full potential of your Ford Super Duty. Turn heads, conquer terrains, and elevate your adventures with superior suspension performance and style.
