BDS SUSPENSION

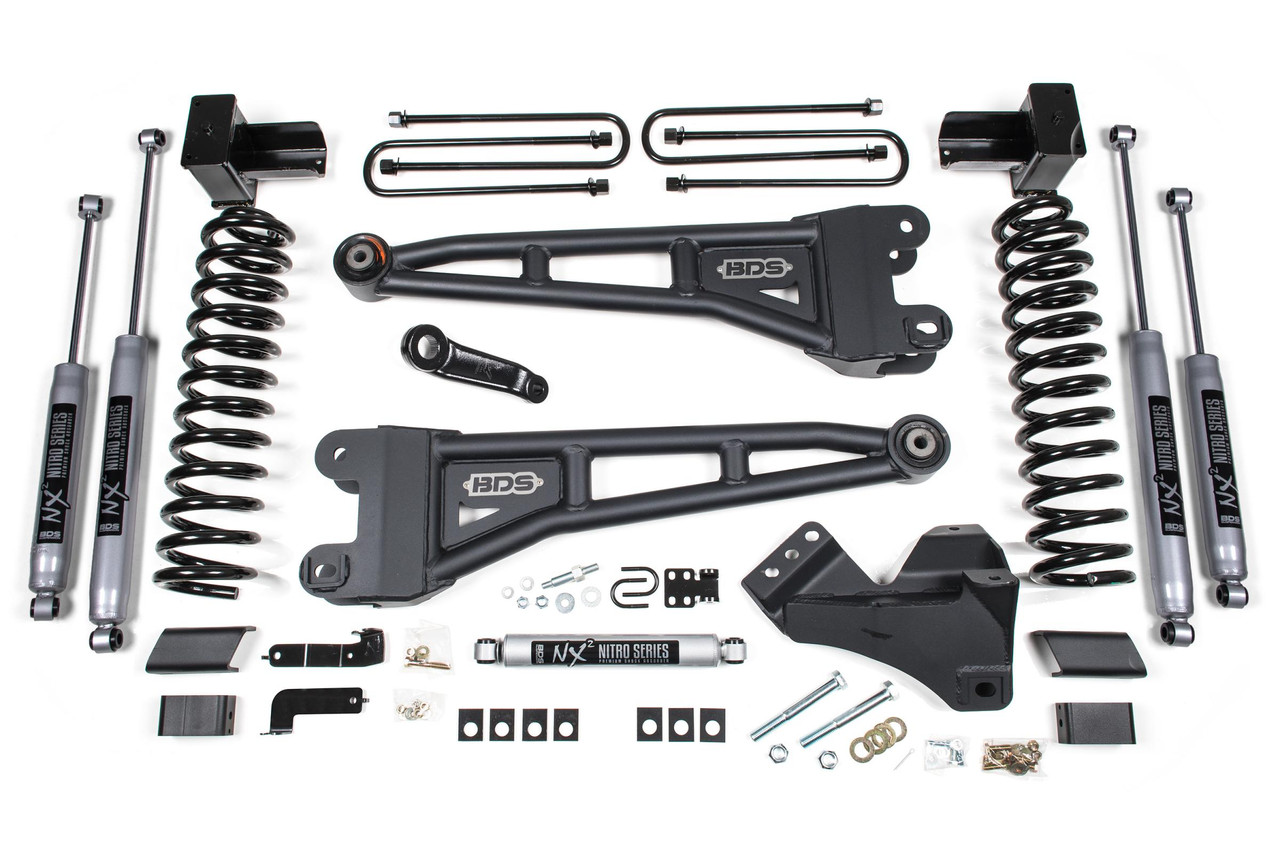

BDS SUSPENSION BDS1566FS 4 INCH LIFT KIT W/ 4-LINK FORD F350 SUPER DUTY DRW 20-22 4WD GAS FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1566FS
MPN:
BDS1566FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1566FS 4 INCH LIFT KIT W/ 4-LINK FORD F350 SUPER DUTY DRW 20-22 4WD GAS FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1566FS 4 INCH LIFT KIT W/ 4-LINK FORD F350 SUPER DUTY DRW 20-22 4WD GAS FOX 2.0 PERFORMANCE SHOCKS
$2,585.55

Description

Raise the height of your dual rear wheel Ford F350 Super Duty gas powered truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 3 inch
  1. Removal of the factory leaf spring block is required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.
  2. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  3. Front exhaust modification may be required to clear the front drive shaft (Gas Only)
  4. Torque wrench capable of 405 ft-lbs required.
  5. 37 x 12.50 Tires may require minor trimming.
  • Easy, 100 percent Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Kit Components:

  • Includes one BDS013317, 2020-2022 Ford F-250/F-350 3In Rear Box Kit, UPC Code 658848613281
  • Includes one BDS013423, 2017-2022 Ford F-250 / F-350 4 Inch 4-Link Box Kit 2of2, UPC Code 658848613496
  • Includes one BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2, UPC Code 658848613700
  • Includes one BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit, UPC Code 658848616534
  • Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
  • Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
  • Includes two FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Elevate your driving experience and enhance the capabilities of your Ford F350 Super Duty DRW with the BDS SUSPENSION BDS1566FS 4-Inch Lift Kit with 4-Link. Specifically engineered for 2020-2022 gas models, this lift kit promises to transform your truck's stance, performance, and overall functionality. With the capacity to accommodate tires up to 37 inches, this comprehensive lift kit not only elevates your truck but also optimizes its off-road ability.

The kit features durable, gas-specific Pro-Ride coil springs that heighten your front end by 4 inches while providing a smooth, controlled ride, no matter the terrain. The inclusion of heavy-duty 4-link control arms reduces handling strain and ensures superior stability and caster control, enhancing your vehicle's overall driving dynamics. A forged drop pitman arm and a heavy-duty track bar relocation bracket guarantee optimal steering angles, allowing for precise handling during your adventures.

In the rear, the package boasts a steadfast fabricated lift block, designed with longer u-bolts and matching NX2 Nitro or upgraded FOX 2.0 Performance shocks, ensuring immense durability and performance during heavy-duty use. Beyond the installation, which is 100% bolt-on for simplicity, this lift kit is tailored to provide a level stance and a robust presence on the road.

Upgrade your truck with BDS Suspension's meticulous engineering and robust components, which ensure that your Ford F350 Super Duty not only stands taller but also handles better, making the most of your off-road jaunts while maintaining a refined on-road demeanor. Whether navigating rugged trails or cruising down the highway, this lift kit takes your vehicle's performance to the next level.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
