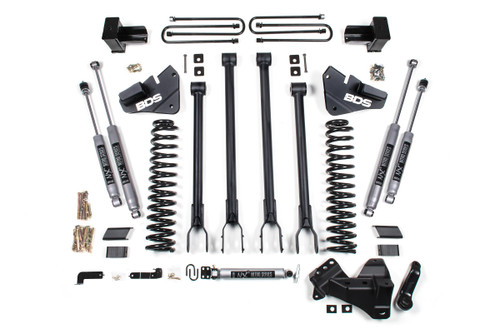

BDS SUSPENSION BDS1565H 4 INCH LIFT KIT W/ 4-LINK FORD F350 SUPER DUTY DRW 20-22 4WD DIESEL NX2 NITRO SHOCKS

Raise the height of your dual rear wheel Ford F350 Super Duty diesel powered truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. Removal of the factory leaf spring block is required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.
2. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
3. Torque wrench capable of 405 ft-lbs required.
4. 37 x 12.50 Tires may require minor trimming.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Kit Components:

• Includes one BDS013317, 2020-2022 Ford F-250/F-350 3In Rear Box Kit, UPC Code 658848613281
• Includes one BDS013423, 2017-2022 Ford F-250 / F-350 4 Inch 4-Link Box Kit 2of2, UPC Code 658848613496
• Includes one BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2, UPC Code 658848613700
• Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel, UPC Code 658848616527
• Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85718, Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609563

Elevate the performance and presence of your Ford F350 Super Duty DRW with the BDS1565H 4-Inch Lift Kit featuring a robust 4-Link system. Designed specifically for 2020-2022 models, this comprehensive lift kit transforms your diesel-powered truck, enhancing its capabilities both on and off the road. With clearance for up to 37-inch tires, this kit promises a bold new stance and unmatched performance.

At the forefront of this lift kit are specialized diesel Pro-Ride coil springs, engineered to deliver a smooth and predictable ride across varying terrains. The advanced 4-Link conversion optimizes suspension geometry, resulting in improved handling and stability. The high-strength, 1/4-inch steel brackets facilitate the secure installation of robust upper and lower control arms, promoting precise axle positioning and minimizing caster changes during wheel travel.

For steering perfection, a forged drop pitman arm ensures optimal geometry after lifting. Coupled with a heavy-duty track bar drop bracket, these components work together to maintain perfect steering angles, enhancing overall vehicle control. The rear of the truck benefits from high-strength fabricated lift blocks and longer u-bolts, paired with a set of NX2 Nitro or FOX Performance shocks that are specifically valved for superior handling.

Every aspect of the BDS1565H kit has been meticulously designed for easy, 100% bolt-on installation, allowing enthusiasts to upgrade their trucks with minimal effort. Whether you're navigating rough terrain or cruising the highways, this lift kit provides the stability and strength needed for all adventures. Elevate your Ford F350 to new heights and experience a transformed driving experience with BDS Suspension.
