BDS SUSPENSION BDS1554FSL 2 INCH LIFT KIT FOX 2.0 COIL-OVER FORD F150 09-13 4WD FOX 2.0 PERFORMANCE SHOCKS

Level out your 2009-2013 Ford F150 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Coil-Over Shocks

These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut.

They feature a 2.0 inch extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (Internal Floating Piston) to eliminate oil aeration, FOX's proprietary internals, 5/8 inch hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 0 inch

1. Will not fit HD models (7 lug).
2. Does not fit SVT Raptor.

• FOX 2.0 Performance Internal Floating Piston shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection

• FOX 2.0 Performance Internal Floating Piston shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance

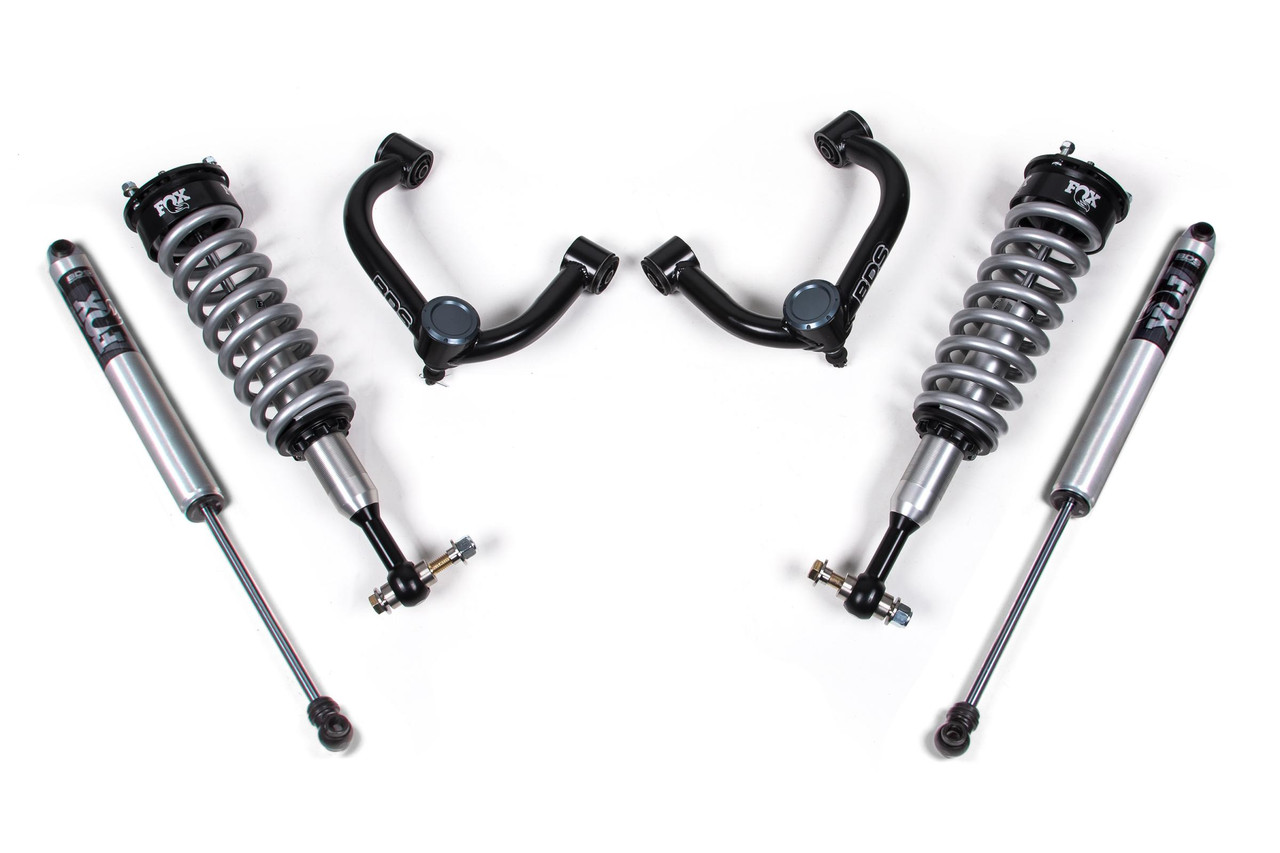

Kit Components:

• Includes one BDS123253, 2004-2020 F150 Upper Control Arm Box Kit, UPC Code 711745604100
• Includes two FOX98224651, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
• Includes two FOX98502006, 09-ON Ford F150 4WD Front Coilover, PS, 2.0, Internal Floating Piston, 5.4 inch, 0-2 inch Lift, UPC Code 714686858748

Elevate your driving experience with the BDS SUSPENSION BDS1554FSL 2 INCH LIFT KIT, featuring the top-tier FOX 2.0 Coil-Over shocks, designed specifically for 2009-2013 Ford F150 4WD models. This comprehensive lift kit not only enhances the aesthetic appeal of your truck by achieving a level stance but also significantly improves its ride quality and off-road capability.

The kit comes equipped with premium FOX 2.0 Performance Series coil-over shocks, which serve as direct bolt-in replacements for factory struts. Constructed from durable 6061 T6 aluminum, these shocks offer improved heat management and feature an internal floating piston design, effectively eliminating oil aeration. This results in consistent damper performance and a smoother ride, whether you're cruising on highways or tackling rugged terrains.

Included in the kit are heavy-duty tubular upper control arms engineered for superior strength and maximum travel. The advanced construction ensures a precise fit, allows for additional down travel, and enables camber adjustments, making this lift kit compatible with most leveled or lifted trucks. The arms feature maintenance-free rubber bushings and greaseable ball joints for enhanced durability and whisper-quiet operation.

Installation is made hassle-free, thanks to top-mounted strut spacers and included differential skid plates for improved off-road protection. With a front lift height of 2 inches and rear lift blocks for leveling, this kit provides ample clearance for up to 35-inch tires, giving your F150 a commanding presence on and off the road.

Experience unparalleled performance and durability with the BDS1554FSL kit, where functionality meets rugged elegance. Elevate your off-road adventures and everyday driving with confidence in this high-quality suspension upgrade.
